- 6 -CJ-763E
30 331-1737-00 Terminal 2
31 313-1649-01 Power case 1
32 102-4549-00 Transistor 2SC4549 M,L,K 1
33 ----------- Switching PWB
(Without components) 1
34 652-0089-81 Coil 150uH 1
35 345-7716-00 Spacer 1
36 652-0107-03 Tube 1
37 335-5014-00 Lead holder(VH) 1
38 702-4012-11 Tapping screw 4 x 12 4
39 702-3008-80 Tapping screw 3 x 8 7
40 735-3008-10 D-Sems screw M3 x 8 1
41 716-1751-00 Screw M3 x 10 1
42 714-3006-89 Machine screw M3 x 6 2
43 732-3008-10 Sems screw M3 x 8 10
44 347-5277-00 Insulator 1
45 347-5297-00 Shade 4
46 331-1888-00 PWB bracket R 1
47 331-1889-00 PWB bracket L 1
48 347-5205-00 Double face tape 2
49 290-6413-00 Warning label 1
50 290-8575-00 Certification label 1
51 290-6597-00 X-Radiational Label 1
52 290-6603-00 Warning label 1
53 652-0161-01 E-MARK label 1
54 652-0088-01 Yoke 1
55 335-0833-01 Lead holder 2
56 335-5145-00 Lead holder 1
57 652-0149-13 Extension lead (FIG) 1
1 370-5571-05 Escutcheon 1
2 335-5011-02 Rear cover 1
3 382-4073-13 Button 1
4 373-0800-00 CRT Cover 1
5 313-1645-02 Heat sink 1
6 331-1771-00 PWB holder R 1
7 331-1772-00 PWB holder L 1
8 331-1770-01 CRT Holder 1
9 300-9769-00 DIN Bracket 2
10 290-8565-00 Protect label 1
11 345-7706-00 Double face tape 2
12 347-5314-00 Shade 4
13 060-0291-01 CRT 1
14 ----------- Soket PWB
(Without components) 1
15 652-0090-04 CRT Socket 1
16 652-0147-20 1M ohm B 1
17 286-6643-00 SET PLATE 1
18 ----------- Main PWB(Without components) 1
19 013-6002-50 Switch 7
20 016-9900-36 Variable resister 100k ohm 1
21 016-9900-35 Variable resister 500 ohm 1
22 652-0105-27 Power input connector 1
23 074-0892-05 Camera jack (DIN 5P) 2
24 652-0106-04 RCA Jack 1
25 652-0106-05 Fliback trans 1
26 652-0149-03 Conecting wire DY 1
27 652-0107-04 Tube 1
28 051-3220-00 IC PQ30RV21 1
29 102-4440-00 Transistor 2SC4440 1

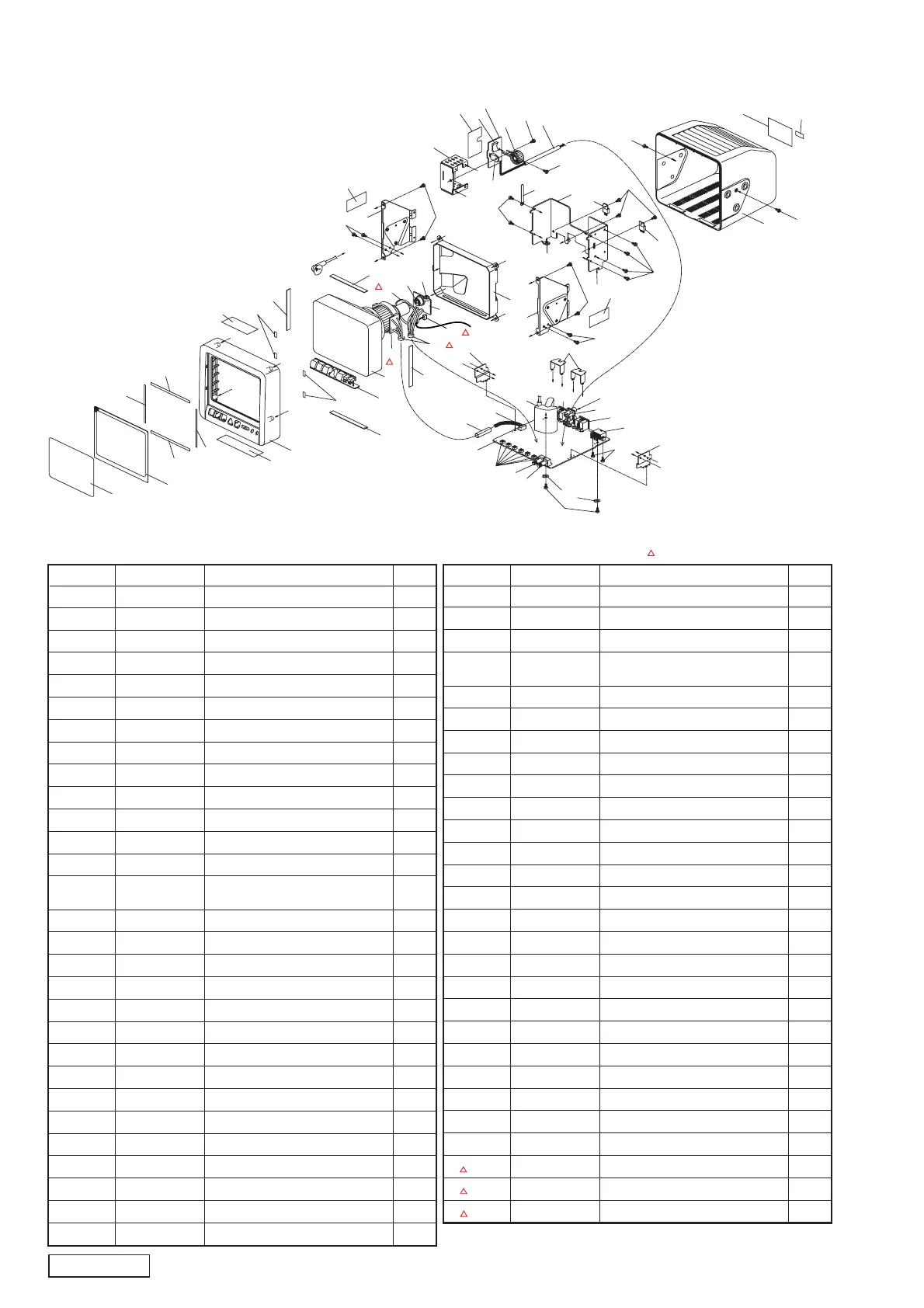

EXPLODED VIEW/PARTS LIST
M6X14 MAX
10
4
1
11
11
3
12
12
14
15
16
13
7
31
8
6
38
9
43
43
28
29
37
39
39
2
42
42
17
5
35
33
32
34
41
36
40
23
24
23
22
27
25
26
30
39
21
20
19
18
38
44
45
45
47
46
43
43
12
12
48
48
50
49
52
51
53
55
Note: All PWB consists of one piece of PWB.
54
56
57
A
B
C
D
A
C
D
C
D
B
E
H
O
N
G
H
K
L
P
K
I
L
J
N
O
E
F
R
R
Q
T
T
S
S
Q
P
A
G
B
F
I
J
a
a
Correction day: 29.Sep.2005
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
