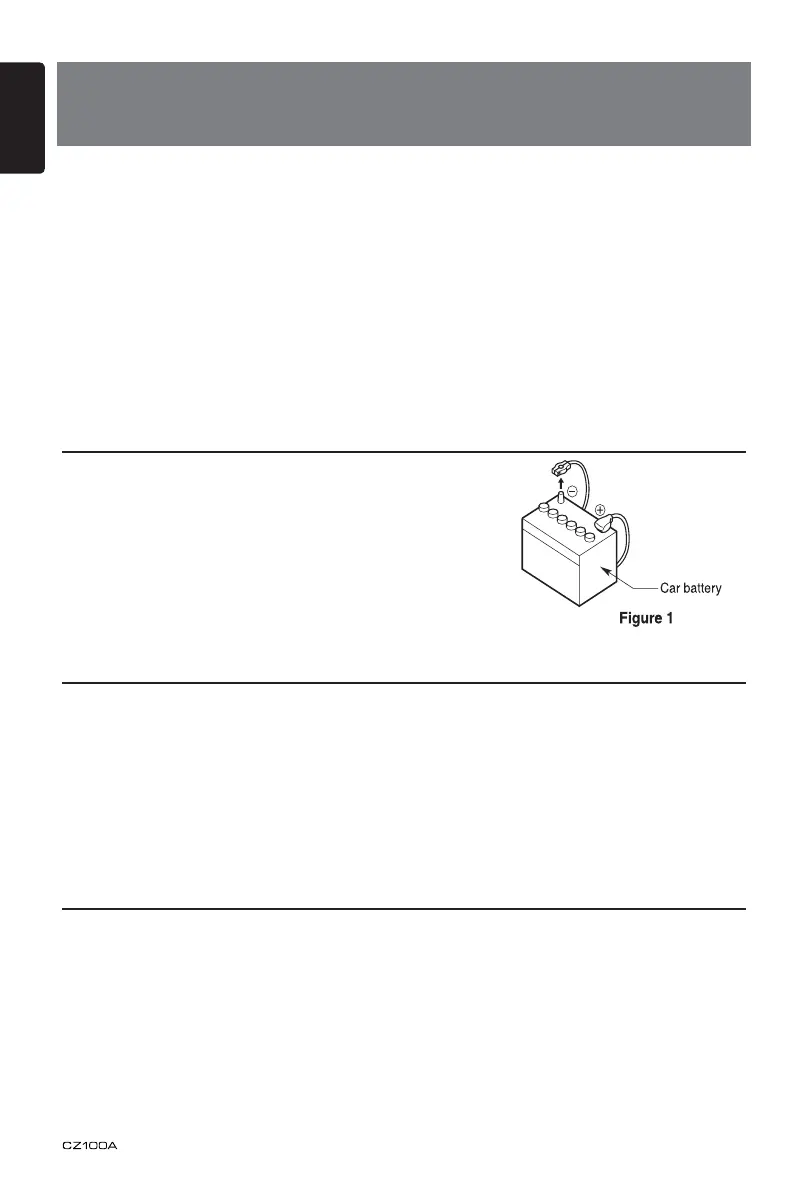

Page #18 background image
English
18
9. INSTALLATION / WIRE
CONNECTION GUIDE
1) Before Starting
1. This set is exclusively for use in cars with a nega-
tive ground 12 V power supply.
2. Read these instructions carefully.
3. Be sure to disconnect the battery “terminal” before
starting. This is to prevent short circuits during
installation. (Figure 1)
2) Package Contents
3) General Cautions
1. Do not open the case. There are no
user- serviceable parts inside. If you
drop anything into the unit during
installation, consult your dealer or an
authorized Clarion service center.
2. Use a soft, dry cloth to clean the case.
Never use a rough cloth, thinner,
benzine, or alcohol etc. For tough dirt,
apply a little cold or warm water to a
soft cloth and wipe off the dirt gently.
CONTENTS
1) BEFORE STARTING ............................................................ 18
2) PACKAGE CONTENTS ........................................................ 18
3) GENERAL CAUTIONS.......................................................... 18
4) CAUTIONS ON INSTALLATION ........................................... 19
5) INSTALLING THE SOURCE UNIT ....................................... 19
6) REMOVING THE SOURCE UNIT ......................................... 21
7) WIRING AND CONNECTIONS ............................................. 22
8) CONNECTING THE ACCESSORIES ................................... 23
Source unit .......................................... 1
Front panel .......................................... 1
Trim ring .............................................. 1
Mounting bracket ................................. 1
Screw M4x5 mm .................................. 1
Screws M5x6 mm ................................ 4
L-key .................................................... 2
Wire connector .................................... 1
Owner’s manual................................... 1
Strap .................................................... 1

Questions and Answers:

Clarion CZ100A Specifications

General IconGeneral
DisplayLCD
BluetoothNo
USB PortYes
Max Power Output50W x 4
TunerAM/FM
Detachable FaceplateYes
Auxiliary InputYes
Built-in AmplifierYes
MP3 PlaybackYes
WMA PlaybackYes
AAC PlaybackNo
Remote ControlOptional
EqualizerYes
Playback MediaCD, MP3, WMA
