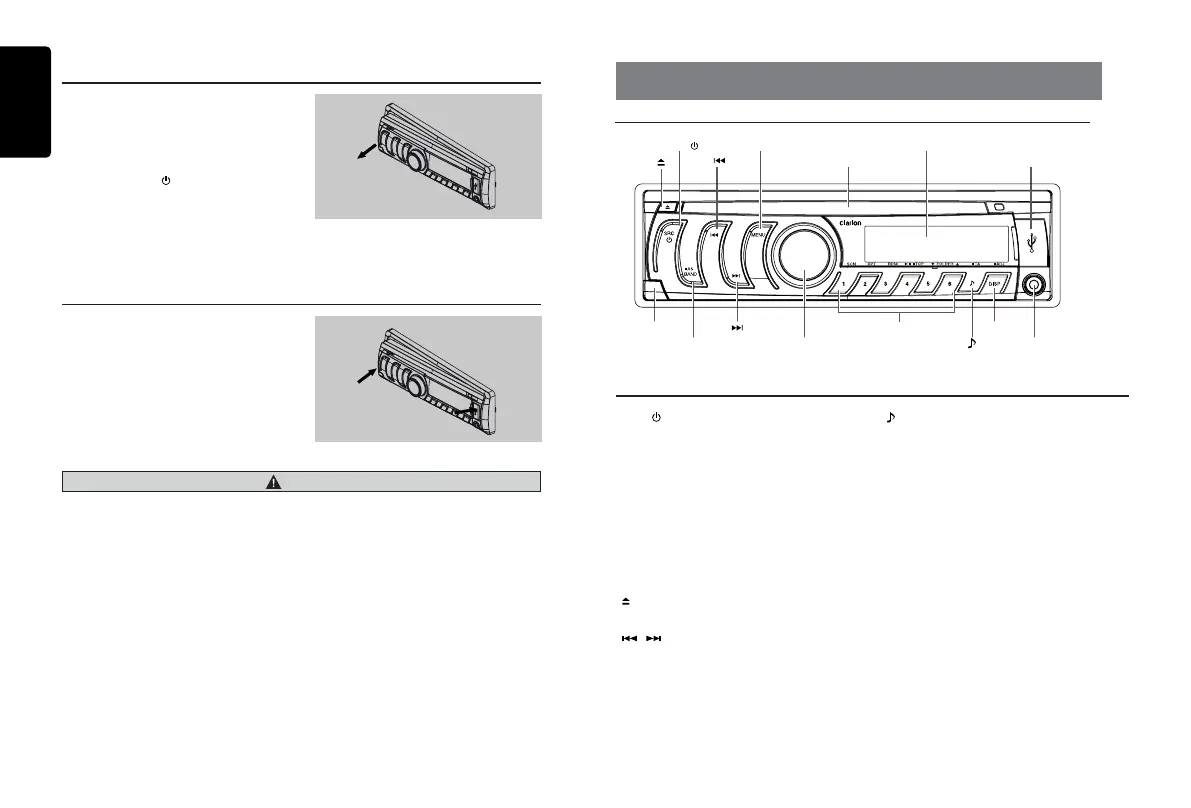

CZ104E
Remove the DCP
The control panel can be detached to prevent
theft. When detaching the control panel, keep
it in the safety place and prevent scratches.
We recommend taking the DCP
(DETACHABLE CONTROL PANEL) with you
when leaving the car.
1. Press the [SRC / ] button (1 sec.) to turn
off the power.
2. Deeply push in [OPEN] button to unlock
the DCP.
3. Hold the side popped out, remove the
DCP.
Attach the DCP
1. Hold the DCP and ensure that the panel
faces towards you. Set the right side of the
DCP into the DCP bracket.
2. Press the left side of the DCP until it locks.
CAUTION
• The DCP can easily be damaged by shocks. After removing it, be carefully not to drop it or
subject it to strong shocks.
• Once the [OPEN] button is pressed and DCP is unlocked, car vibrations can cause the DCP
to fall.
• The connector for the main unit and DCP is extremely important. Be careful not to damage it
by pressing on it with ngernails, screwdrivers, etc.
Note:
If the DCP is dirty, wipe off the dirt with a soft, dry cloth only.
3. CONTROLS
Operational Panel
[SRC / ] Button
• Power / Toggle the audio source
[AS/BAND] Button
• RADIO mode – Select tuner band / Auto store
(long press)
[MENU] Button
• MP3/WMA mode – Search function.
• CD mode – No function.
• RADIO mode – PTY select function.
• AUX mode – No function.
• USB mode – Search function
[
] Button
• Press to eject disc.
[
, ] Buttons
• RADIO mode – Tune / seek (long press)
• CD mode – Track up/down / Fast play (long
press)
• USB/MP3/WMA mode – Track up/down / Fast
play(long press)
[OPEN] Button
• Unlock the front panel.
[
] Button
• Sound effect setting
• Turn on/off TA function (long press)
[VOLUME] Knob
• Adjust volume level / Conrm (press)
[1~6] Buttons
• [1] Button: Scan play / Preset station 1
• [2] Button: Repeat play / Preset station 2.
• [3] Button: Random play / Preset station 3.
• [4] Button: Play / Pause / Preset station 4 /
Top play (long press).
• [5] Button: Previous folder / Preset station 5 /
10 tracks down (long press).
• [6] Button: Next folder / Preset station 6 /
10 tracks up (long press).
[DISP] Button
• Display switch
• System setup (long press)
Names of Buttons
[SRC / ] [MENU]
Display
Disc Slot
USB Slot
[
]
[OPEN] [1~6] [DISP]
[AS/BAND] [VOLUME]
[
]
[
]
[
]
AUX Jack
CZ104E
