Clarion CZ209 Service Manual

-7-
CZ209/CZ209A
SANKOL
application
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
1-9
1-10
1-11
1-12
1-13
1-14
1-15
1-16
1-17
1-18
1-19
1-20
1-21
1-22
1-23
1-24
1-24
1-25
1-26
1-27
1-28
1-29
1-30
1-31
1-32
1-33
1-34
1-35
1-36
1-37
1-38
1-39
1-40
1-41
1-41
1-42
1-43
1-43
1-44
1-45
1-21
1-46
SANKOL
application
SANKOL
application
1-21

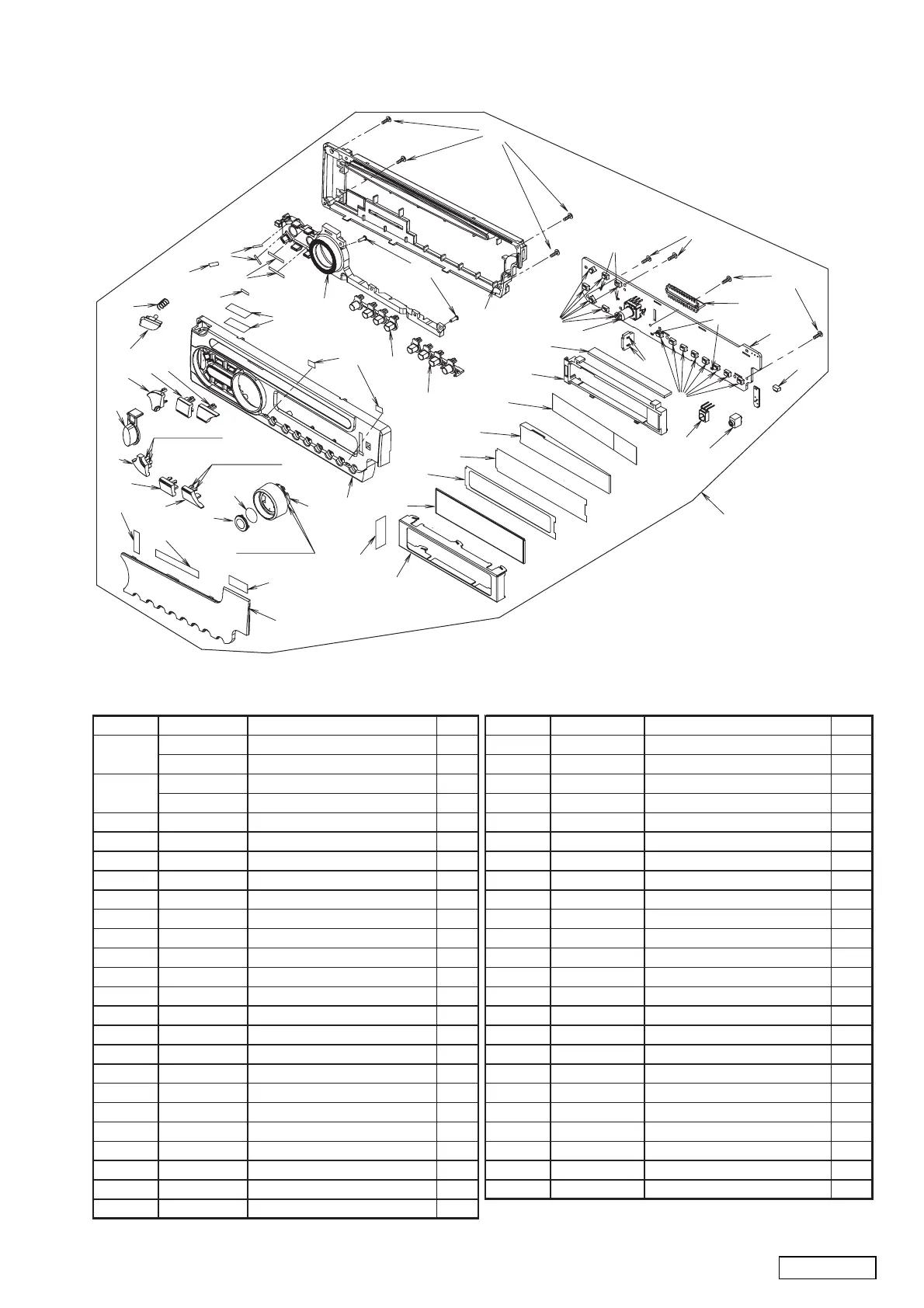

EXPLODED VIEW / PARTS LIST
DCP section
1
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
1
DCP-641-600 DCP ASSY(PE-3157B-A) 1
1-23
347-7549-00 DOUBLE FACE 1
DCP-653-800 DCP ASSY(PE-3157K-A) 1
1-24
347-8658-00 DOUBLE FACE 2
1-1
373-1182-00 DIAL-CVR(PE-3157B-A) 1
1-25
347-8667-00 FILM 2
373-1182-05 DIAL-CVR(PE-3157K-A/B) 1 1-26 347-8661-00 DOUBLE FACE 1
1-2 382-9095-00 BUTTON(ISR) 1 1-27 347-8657-00 FILM 1
1-3 382-9093-00 BUTTON(SRC) 1 1-28 347-8659-00 FILM 1
1-4 382-9097-00 BUTTON(FW) 1 1-29 347-8660-00 FILM 1
1-5 382-9091-00 BUTTON(EJECT) 1 1-30 331-4717-00 L CD-CVR 1
1-6 382-9096-00 BUTTON(FF) 1 1-31 379-1426-41 INDICATOR(LCD) 1
1-7 382-9098-00 BUTTON(ENT) 1 1-32 347-8653-00 BLACK FILM 1
1-8 382-9092-00 BUTTON(BAND) 1 1-33 347-8654-00 WHITE FILM 1
1-9 380-5753-00 KNOB 1 1-34 335-8549-00 LCD-ILLUMI 1
1-10 335-8547-00 KNOB CVR 1 1-35 347-8652-00 REFLECTOR 1
1-11 370-6395-00 ESCUTCHEON 1 1-36 335-8548-00 LCD-HOLDER 1
1-12 382-9090-00 BUTTON(4/5/6/S) 1 1-37 345-6277-00 RUBBER PART 1
1-13 382-9089-00 BUTTON(1/2/3/D) 1 1-38 060-4021-00 IR-RECEIVER 1
1-14 382-9094-00 BUTTON(REL) 1 1-39 076-0615-50 PLUG(16P) 1
1-15 750-6858-00 SPRING 1 1-40 001-7114-91 DIODE 2
1-16 335-8550-01 ILLUMI PLATE 1 1-41 013-6312-50 SWITCH 15
1-17 335-8551-00 REAR CVR 1 1-42 016-9901-02 VR W/SHAFT 1
1-18 345-6345-00 RUBBER PART 2 1-43 001-7097-91 DIODE 4
1-19 345-6344-00 RUBBER PART 2 1-44 ------------ SWITCH PWB 1
1-20 347-8655-00 FILM 2 1-45 076-0502-55 PLUG 1
1-21 716-0872-51 SCREW(M1.7x6) 6 1-46 075-9021-50 JACK 1
1-22 716-0872-62 SCREW(M1.7x8) 4
Note)
1. Some parts depend on each model.
The model name is specified in the description.
2. Several different parts of the same reference
number are alternative parts.
One of those parts is used in the set.
3. SANKOL uses CFD-409Z.
