Clarion NX503E Installation Manual

56 NX503E/FX503E
English
No. Description
REAR RIGHT
REAR RIGHT
FRONT RIGHT
FRONT RIGHT
FRONT LEFT
FRONT LEFT
REAR LEFT
REAR LEFT
+12 V MAIN POWER (*1)
Auto antenna
ILLUMINATION
+12 V ACCESSORY (*1)
GROUND
ISO CONNECTOR
Spare terminal (Yellow)
Parking brake (Grass-green)
Remote terminal (Blue/White) (*2)
Reverse gear terminal (Purple/White)
*1 In certain vehicles - Volkswagen/Opel/Vauxhall - it is necessary to exchange the accessory
<<Red>> and the main power <<Yellow>> connection, to avoid overload and loss of memory.
*2 When the unit is installed in a 1998 or later Volkswagen model, make sure to interrupt the
<<Remote>> output. Disconnect the <<blue/white>> wire and insulate the front ends of this
cord. A breakdown may occur if the cord is not disconnected, or front ends are not insulated.
See next page for how to connect the parking brake lead.

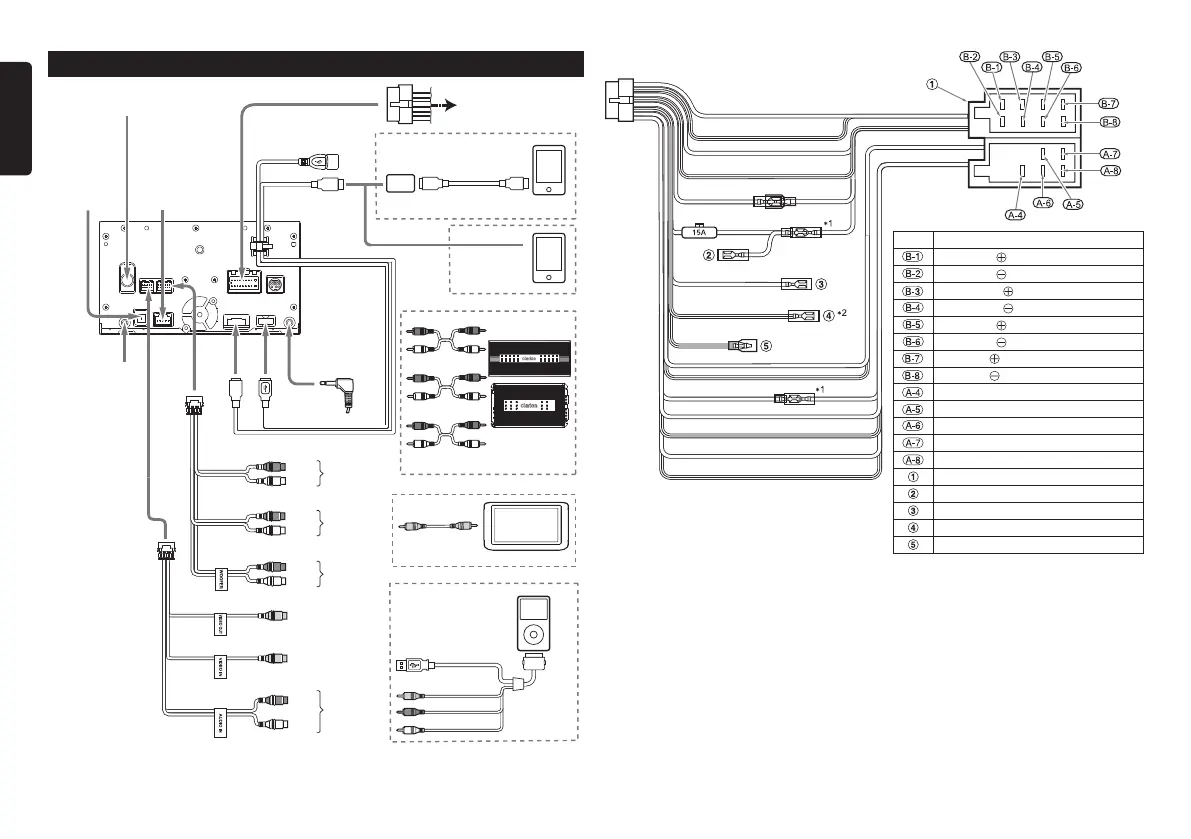

9. WIRE CONNECTION
Radio antenna jack
Microphone
(sold separately)
GPS antenna
jack (NX503E
only)
Refer to the following
page.
Right
Left
Black
Black
Yellow
Red
White
Red
White
audio input
terminal
video output
terminal
Rear
audio
output
terminal
External
Amplifier
Rear Monitor
Steering wheel
remote control
terminal (sold
separately)
HDMI cable
(sold separately)
Rear Vision
Camera
terminal
Purple
Right
Left
Gray
Red
White
Front
audio
output
terminal
Subwoofer
output
terminal
(MONO 2ch)
Right
Left
Yellow
White
Right
Left
video input
terminal
Gray
iPod/iPhone
HDMI/MHL
conversion adapter
HDMI/MHL
conversion cable
or
Black
Red
USB terminal
Connection cable
(CCA-750)
Android
smartphone
Android
smartphone

Clarion NX503E Specifications

General

MP3 playback	-
DVD Audio playback	Yes
Aspect ratio	16:9
Display type	TFT
Display diagonal	6.2 \
Display resolution	800 x 480 pixels
Output power	18 W
Product color	Black
Frequency range	20 - 20000 Hz
Disc types supported	DVD+R, DVD+RW, DVD-R, DVD-RW
Signal-to-Noise Ratio (SNR)	93 dB
AM band range	530 - 1710 kHz
FM band range	87.9 - 107.9 MHz
Supported radio bands	AM, FM
Bluetooth	No
Line outputs (RCA)	2

Weight and Dimensions

Dimensions (WxDxH)	178 x 157 x 100 mm
