Clarion NX503E Installation Manual

NX503E/FX503E 57
English
■

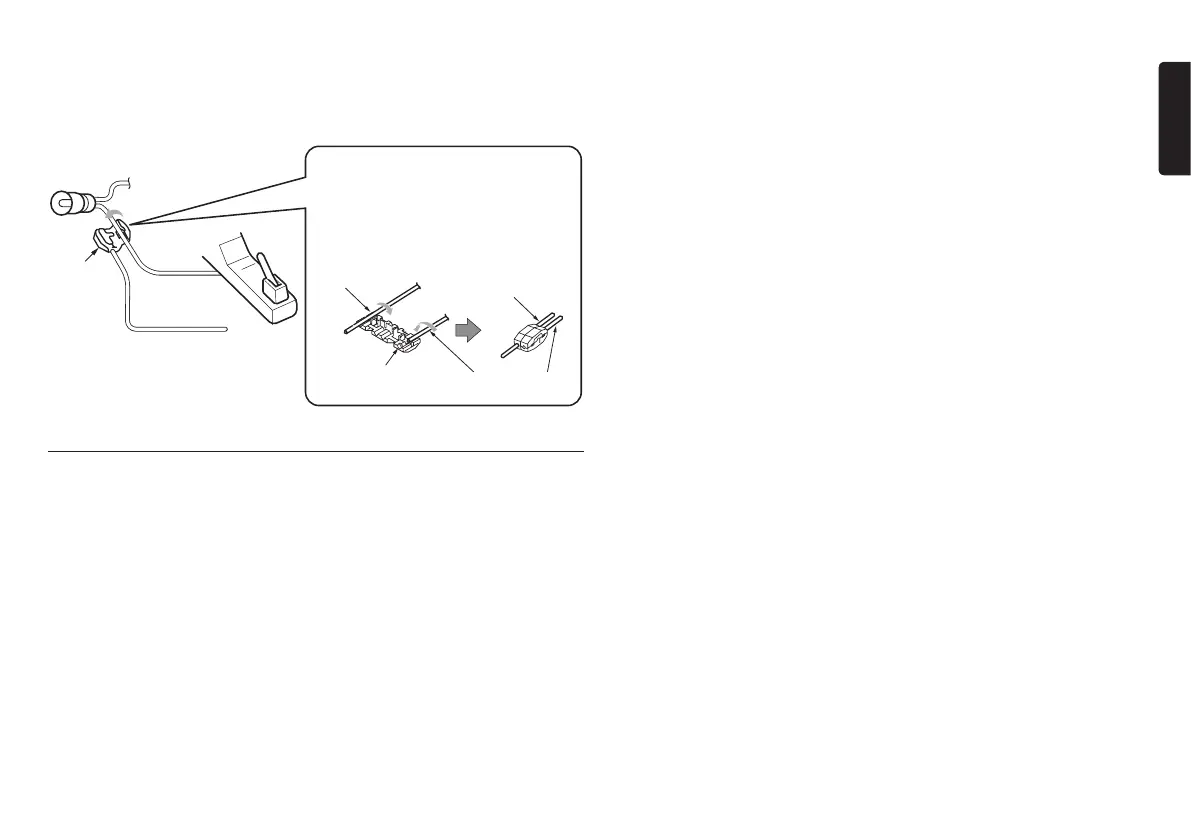

Connecting the parking brake lead
Connect the lead to parking brake lamp ground in the meter panel.
●
Connecting the parking brake lead to lamp ground allows you to watch video images
when the parking brake is engaged.
●
When the parking brake lead is not connected, the monitor will not display video images.
Parking brake lamp
Electro-tap
Parking brake lead
(Grass-green)
Parking brake
signal lead
Parking brake
+
lead to battery
●
How to attach the electro-tap
1. Place the Parking brake lead at the stopper,
and fold it back in the direction of the arrow.
2. Pass the Parking brake signal lead through,
and fold it back in the direction of the arrow.
Parking brake
signal lead
Stopper
Parking brake
signal lead
Parking brake lead
(Grass-green)
Connecting the Accessories
■
Connection to the Rear Vision Camera for vehicle
The Rear Vision Camera for vehicle can be connected to optional Rear Vision Camera input
cable (CCA-644) with RCA pin cable. For detailed information, refer to the instruction sheet
or manual for the Rear Vision Camera.
●
Be sure to connect the reverse gear lead to the vehicle’s relevant terminal.
●
Connect the Rear Vision Camera to the RCA pin cable; if not, the screen turns black while
the gearshift lever is in the reverse gear position.

Clarion NX503E Specifications

General

MP3 playback	-
DVD Audio playback	Yes
Aspect ratio	16:9
Display type	TFT
Display diagonal	6.2 \
Display resolution	800 x 480 pixels
Output power	18 W
Product color	Black
Frequency range	20 - 20000 Hz
Disc types supported	DVD+R, DVD+RW, DVD-R, DVD-RW
Signal-to-Noise Ratio (SNR)	93 dB
AM band range	530 - 1710 kHz
FM band range	87.9 - 107.9 MHz
Supported radio bands	AM, FM
Bluetooth	No
Line outputs (RCA)	2

Weight and Dimensions

Dimensions (WxDxH)	178 x 157 x 100 mm
