Installation
1. Once a safe and suitable location has been chosen for your amplifi er, remove both
top trim pieces from the amplifi er using a 2mm hex driver. Store the four screws and
trim pieces in a safe location.
2. Locate the amplifi er and mark the mounting hole locations.
3. Remove the amp and pre-drill the mounting holes.
4. Replace the amplifi er and secure with adequate hardware.
5. Replace the upper trim panel and secure.
6. Make all the power, signal and speaker connections to the amp.
7. Complete the remainder of the installation and fi nish tuning the amplifi er and system.
8. Install the lower trim panel and secure.
Subwoofer Level Control Installation
Clarion offers an remote subwoofer level control called the BC2 included in the box with
the XC6420 and XC6620 . When connected to the XC6420 or XC6620, it gives you the
ability to increase or decrease the output level of the associated channels to allow you to
fi ne tune the subwoofer level for the selection of music that is playing.

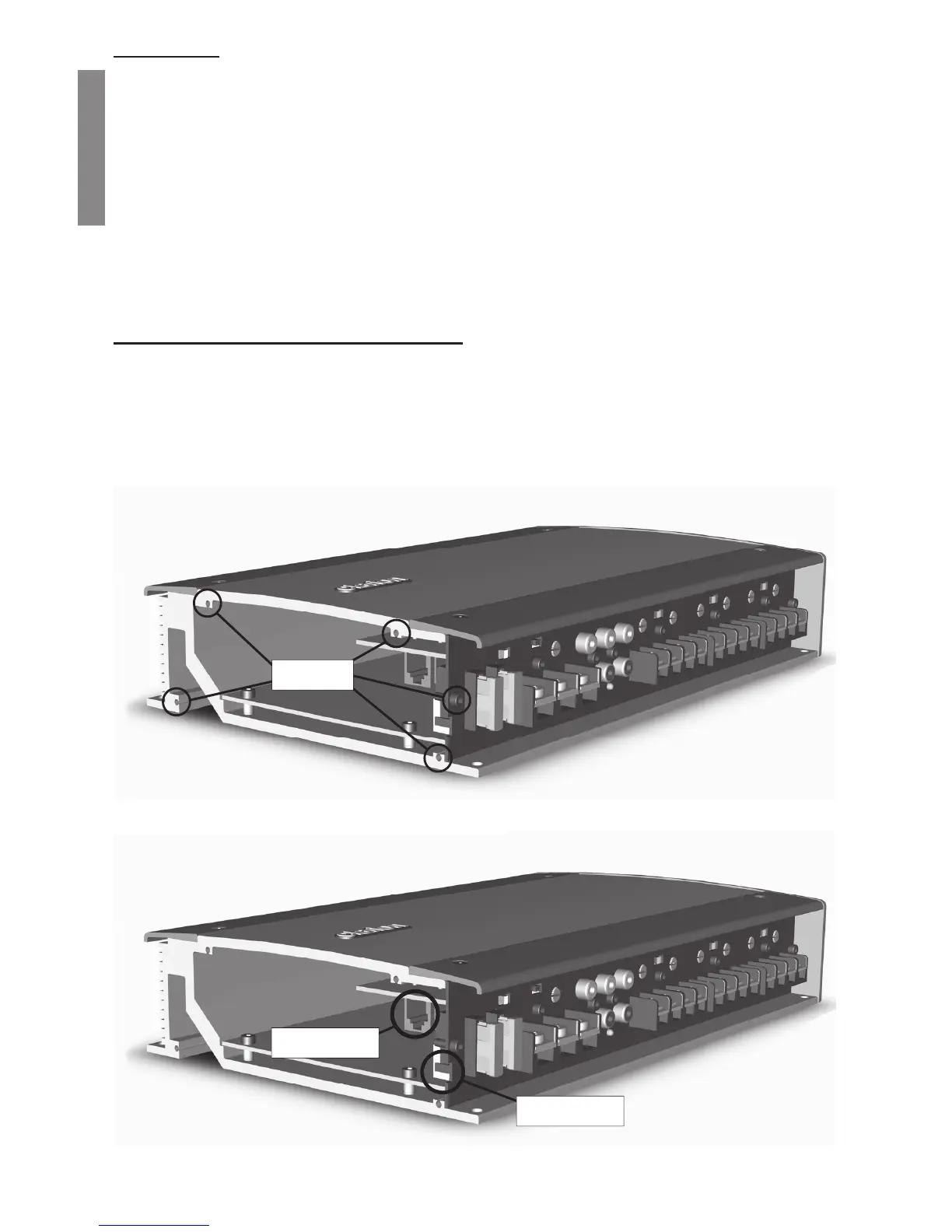

Remove all 5 of
these screws
Remote Level Control
Connection Point
Remote Level Control
Wire exits here
To Next Page
