Speaker Wiring Diagrams Con’t

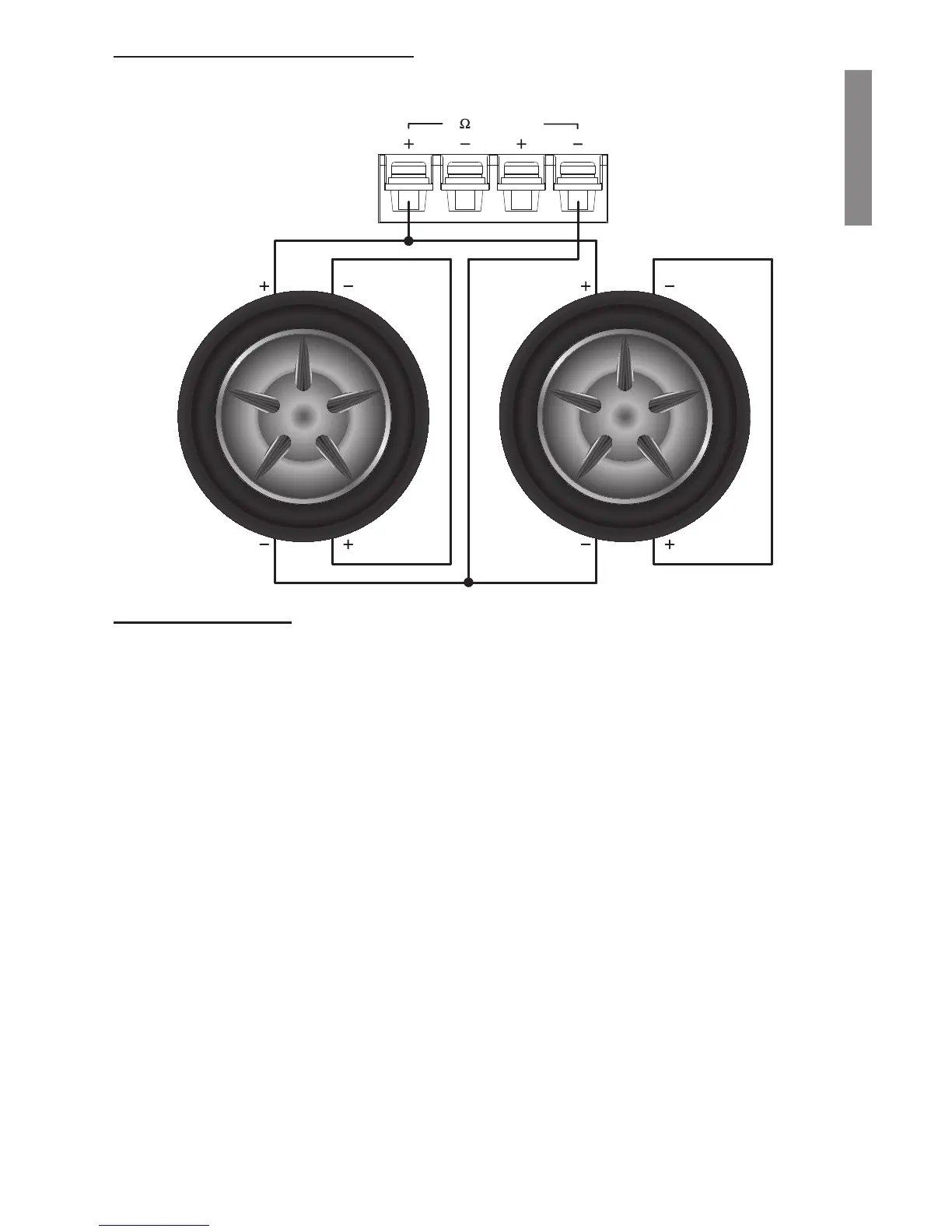

4 Ohm Mono - Two Dual 4 Ohm Voice Coil Subwoofers
Signal Distribution
The XC6420 is quite complex in terms of its ability to distribute signals through
the amplifi er. The combination of the Input Selection Switch and Mode Select
Switch allow the amp to be used as a 2-Channel, 3-Channel or 4-Channel amp
using one or two pairs of signal inputs.
The XC6620 is capable of providing signal distribution to all six channels from 1,
2 or 3 pair(s) of inputs.
As there many different possible confi gurations, block diagrams have been
provided to explain the internal connectivity and signal routing for each model of
amplifi er.
Notes:
On the XC6420, the Remote Level Control functions only when channels 1 & 2
are put in Low-Pass mode. On the XC6620, Remote Level Control functions only
when channels 5 & 6 are put in Low-Pass mode.
If you have questions regarding the confi guration of the amplifi er for your
application, please do not hesitate to contact the Clarion dealer you purchased
the amplifi er from.
