6
ELECTRICAL CONNECTIONS
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an
approved 13 amp BS 1363 plug, or a suitably fused isolator switch.

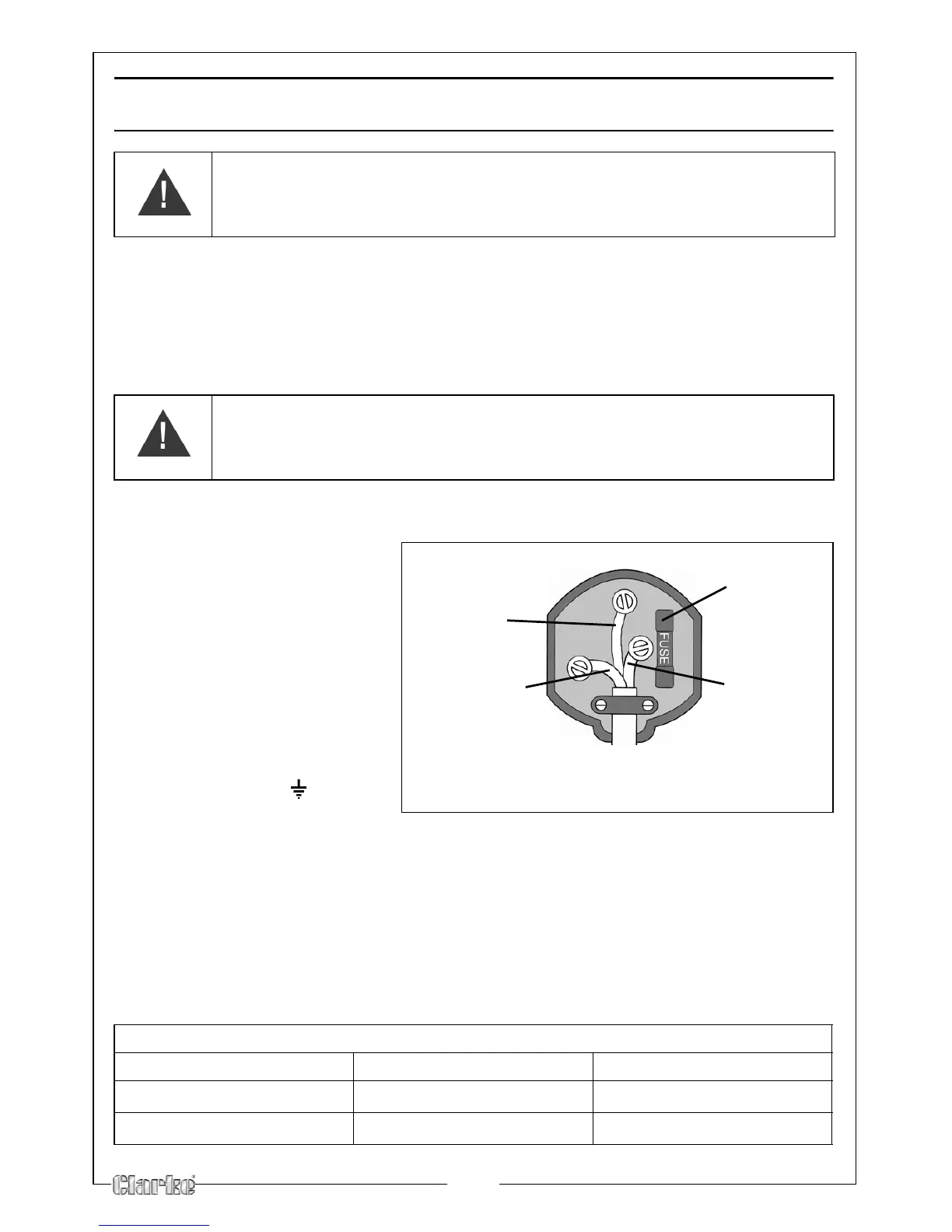

If the plug has to be changed because it is not suitable for your socket, or because of
damage, it must be removed and a replacement fitted, following the wiring instructions
shown below. The old plug must be discarded safely, as insertion into a power socket
could cause an electrical hazard.
If the colours of the wires in the power cable do not agree with the markings on the
plug.
• The BLUE wire must be
connected to the
terminal which is marked
N or coloured black.
•The BROWN wire must be
connected to the
terminal which is marked
L or coloured red.
• The YELLOW AND GREEN
wire must be connected
to the terminal which is
marked E or or
coloured green.
We strongly recommend that this machine is connected to the mains supply through a
Residual Current Device (RCD)
If you are not sure, consult a qualified electrician. DO NOT try to do any repairs.
CABLE EXTENSION
Always use an approved extension cable suitable for the power rating of this tool (see
specifications), the conductor size should also be at least the same size as that on the
machine, or larger. When using a cable reel, always unwind the cable completely.
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH
If a cable extension is needed it is essential to comply with the following data.
Voltage Extension length Cable section
230V up to 20 m
2.5 mm
2
230V 20 - 50 m
4 mm
2
