Clevo N240BU User Manual

Disassembly
2 - 10 Removing the Keyboard
2.Disassembly
Removing the Keyboard
1. Turn off the computer, turn it over to remove the battery (page 2 - 5).
2. Remove screws - from the bottom case (Figure 5a).
3. Open it up with the LCD on a flat surface before pressing at point
to release the keyboard module while releas-
ing the keyboard in the direction of the arrow
as shown (Figure 5b).
4. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable . Disconnect the key-
board ribbon cable from the locking collar socket (Figure 5c).
5. Carefully lift up the keyboard off the computer (Figure 5d).
6. Reverse the process to install the keyboard (be careful not to bend the keyboard ribbon cable).
1
3
4
5
6
7
8
6
b.
c.
a.
8
1
6
7
8
6
2
3
c.
4
5

2. Keyboard

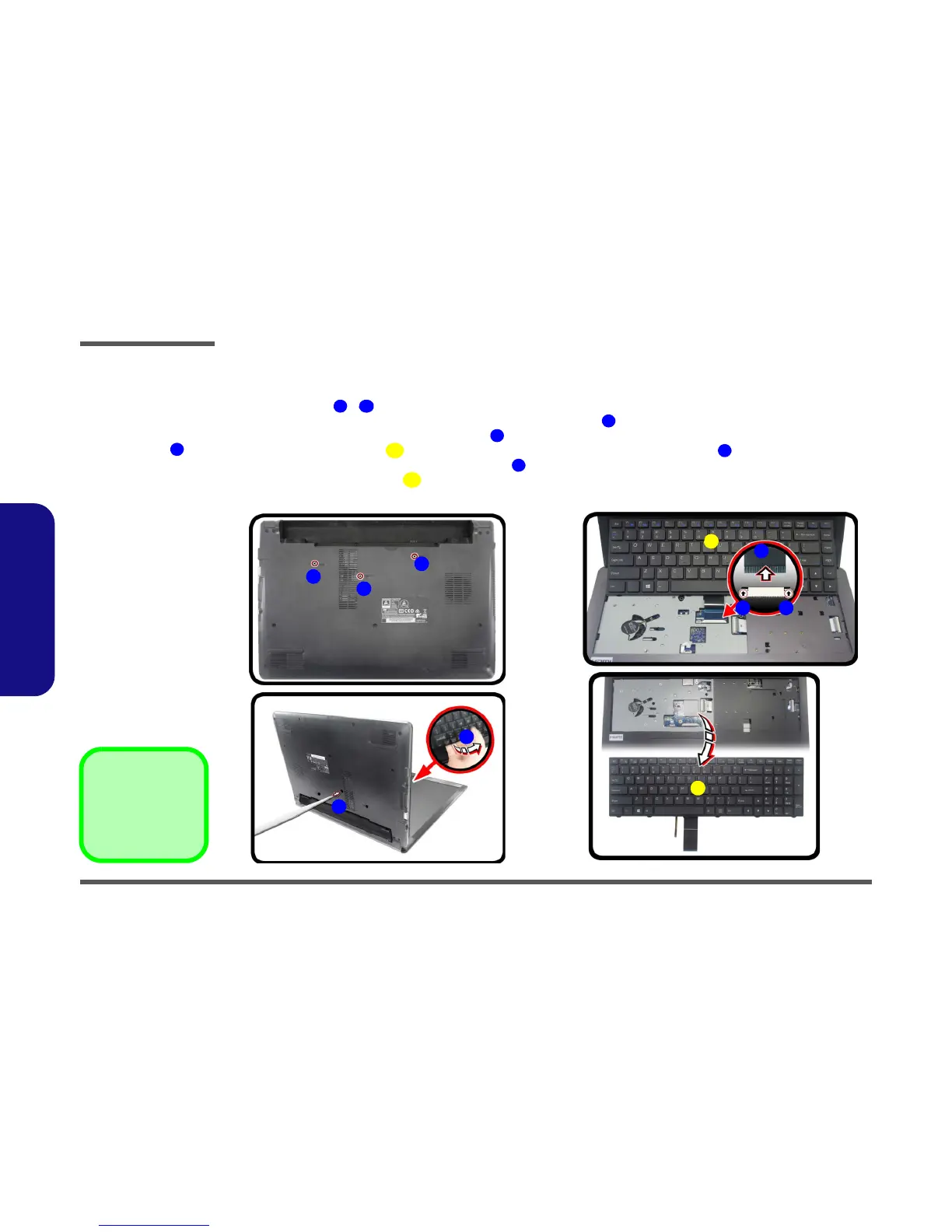

Figure 5
Keyboard Removal
a.
b. Release the keyboard by
pressing at point .
c. Disconnect the keyboard
ribbon cable from the
locking collar socket.
d. Remove the keyboard.
