Clevo NP70HH User Manual

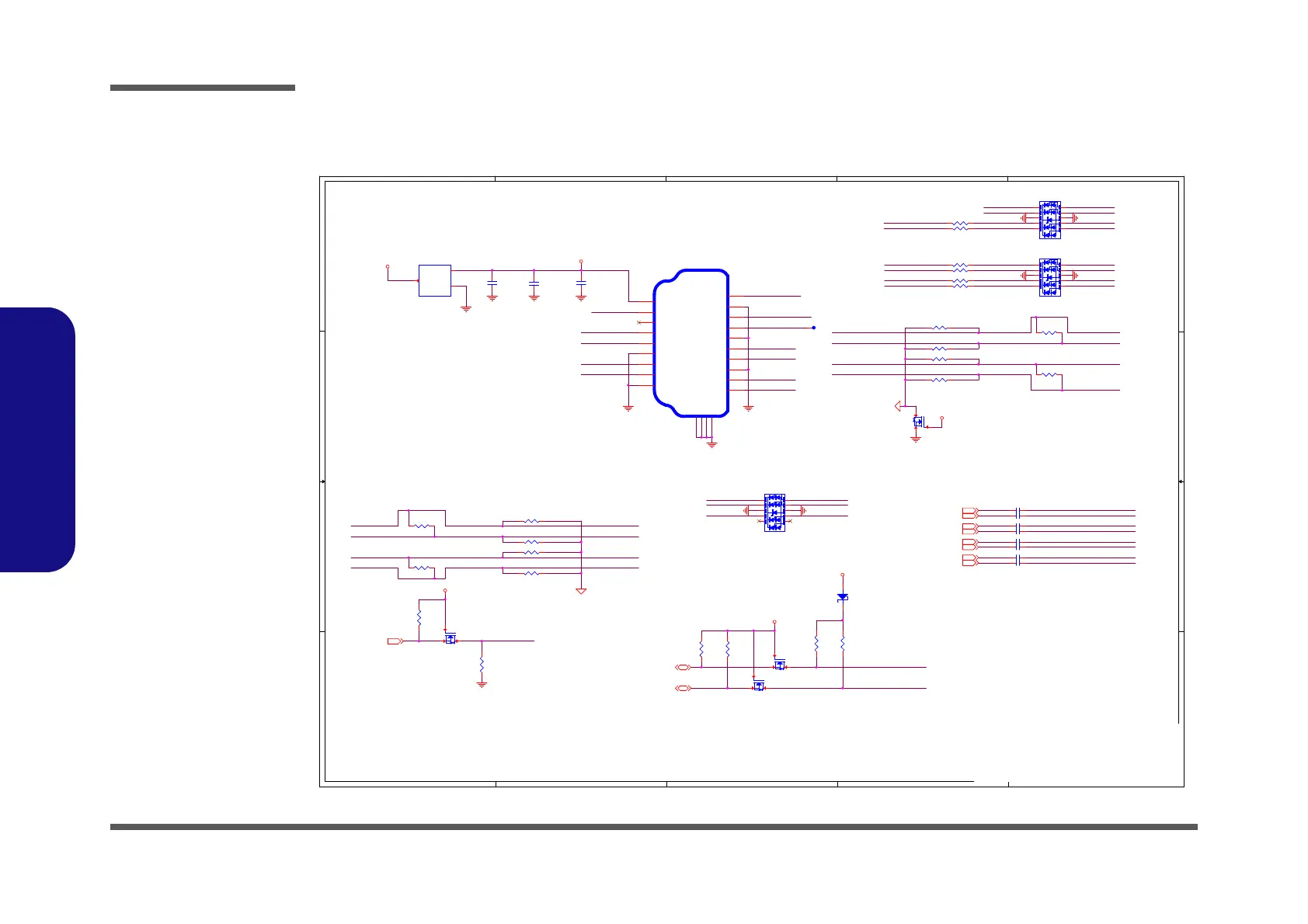

Schematic Diagrams
B - 26 HDMI
B.Schematic Diagrams
HDMI
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
HDMI CONNECTOR
TMDS_DATA0#_R
TMDS_DATA0_R
TMDS_DATA2_R
TMDS_DATA2#_R
TMDS_CLOCK#_R
TMDS_CLOCK_R
TMDS_DATA1#J
TMDS_DATA1J
TMDS_CLOCK#J
TMDS_CLOCKJ
TMDS_DATA2#J
TMDS_DATA0J
TMDS_DATA2J
TMDS_DATA0#J
HDMI_CEC
HDMI_SCL-C-R
HDMI_SDA-C-R
HDMI_HPD-C-R
TMDS_DATA2#J
TMDS_DATA2J
TMDS_DATA1J
TMDS_DATA1#J
TMDS_CLOCK#_R TMDS_CLOCK#J
TMDS_CLOCK_R
TMDS_DATA0#J
TMDS_DATA0J
TMDS_CLOCKJ
TMDS_DATA1_R
TMDS_DATA1#_R
HDMI_HPD-C
TMDS_CLOCK#_R
TMDS_CLOCK_R
TMDS_DATA1#_R
TMDS_DATA1_R
TMDS_CLOCK#_R
TMDS_DATA0_R
TMDS_DATA2#_R
TMDS_DATA2_R
TMDS_DATA0#_R
TMDS_DATA0_R
TMDS_DATA2_R
TMDS_DATA2#_R
TMDS_DATA0#_R
HDMI_5VS_A
HDMI_SDA-C
HDMI_SCL-C
TMDS_DATA2_R
TMDS_DATA2#_R
TMDS_DATA1_R
TMDS_DATA1#_R
TMDS_DATA0_R
TMDS_DATA0#_R
TMDS_CLOCK_R
TMDS_DATA1#_R
TMDS_DATA1_R
HDMI_HPD-C-RHDMI_HPD-C
HDMI_SCL-C-RHDMI_SCL-C
HDMI_SDA-C-RHDMI_SDA-C
HDMI_5VS
5VS
3.3VS
5VS
GND_HDMI
GND_HDMI
3.3VS
HDMI_5VS
HDMI_DATA2N2
HDMI_DATA2P2
HDMI_DATA0P2
HDMI_DATA0N2
HDMI_CLOCKP2
HDMI_CLOCKN2
HDMI_DATA1P2
HDMI_DATA1N2
HDMI_HPD28
HDMI_CTRLCLK28
HDMI_CTRLDATA28
Title
Size Document Number R e v
Date: Sheet
of
6-71-NP700-D02
D02
[25] HDMI 1.4
A3
25 62Monday, May 31, 2021
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
TGL-H+GN20-P
Title
Size Document Number R e v
Date: Sheet
of
6-71-NP700-D02
D02
[25] HDMI 1.4
A3
25 62Monday, May 31, 2021
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
TGL-H+GN20-P
Title
Size Document Number R e v
Date: Sheet
of
6-71-NP700-D02
D02
[25] HDMI 1.4
A3
25 62Monday, May 31, 2021
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
TGL-H+GN20-P
R433
180_1%_04
J_HDMI1
116E-1C001-20Y
SHIELD2
2
TMDS DATA1+
4
TMDS DATA1-
6
SHIELD0
8
TMDS CLOCK+
10
TMDS CLOCK-
12
RESERVED
14
SDA
16
+5V
18
TMDS DATA2+
1
TMDS DATA2-
3
SHIELD1
5
TMDS DATA0+
7
TMDS DATA0-
9
CLK SHIELD
11
CEC
13
SCL
15
DDC/CEC GND
17
HOT PLUG DETECT
19
GND
GND1
GND
GND2
GND
GND3
GND
GND4
C590 0.1u_10V_X5R_04
R438
180_1%_04
C580 0.1u_10V_X5R_04
Q1
MTN7002ZHS3
G
DS
EMR8 0_1%_02
EMR5 0_1%_02
R16 499_1%_04
R6
10K_04
C583 0.1u_10V_X5R_04
C579
0.1u_6.3V_X5R_02
D3
RB751S-40H
AC
R17 499_1%_04
Q4
2SK3018S3
G
DS
R8
1.2K_04
C582
1u_6.3V_X5R_04
R437
180_1%_04
R12 499_1%_04
R9 499_1%_04
C592 0.1u_10V_X5R_04
D15
SYT16B05DVD
5
1
2
3
4
10
9
8
7
6
R13
20K_04
U1
APL3517A
VIN
3
VOUT
2
GND
1
EMR6 0_1%_02
R14 499_1%_04
R15 499_1%_04
R1
10K_04
Q5
2SK3018S3
G
DS
C593 0.1u_10V_X5R_04
D16
SYT16B05DVD
5
1
2
3
4
10
9
8
7
6
C587
*22u_6.3V_X5R_06
R10
1M_04
D14
SYT16B05DVD
5
1
2
3
4
10
9
8
7
6
R18 499_1%_04
C594 0.1u_10V_X5R_04
R2
1.2K_04
EMR3 0_1%_02
R3 499_1%_04
Q2
2SK3018S3
G
DS
R442
180_1%_04
C588 0.1u_10V_X5R_04
EMR4 0_1%_02
C591 0.1u_10V_X5R_04
EMR7 0_1%_02
Sheet 25 of 62
HDMI
