Disassembly
2 - 14 Removing the Wireless LAN Module
2.Disassembly
Removing the Wireless LAN Module

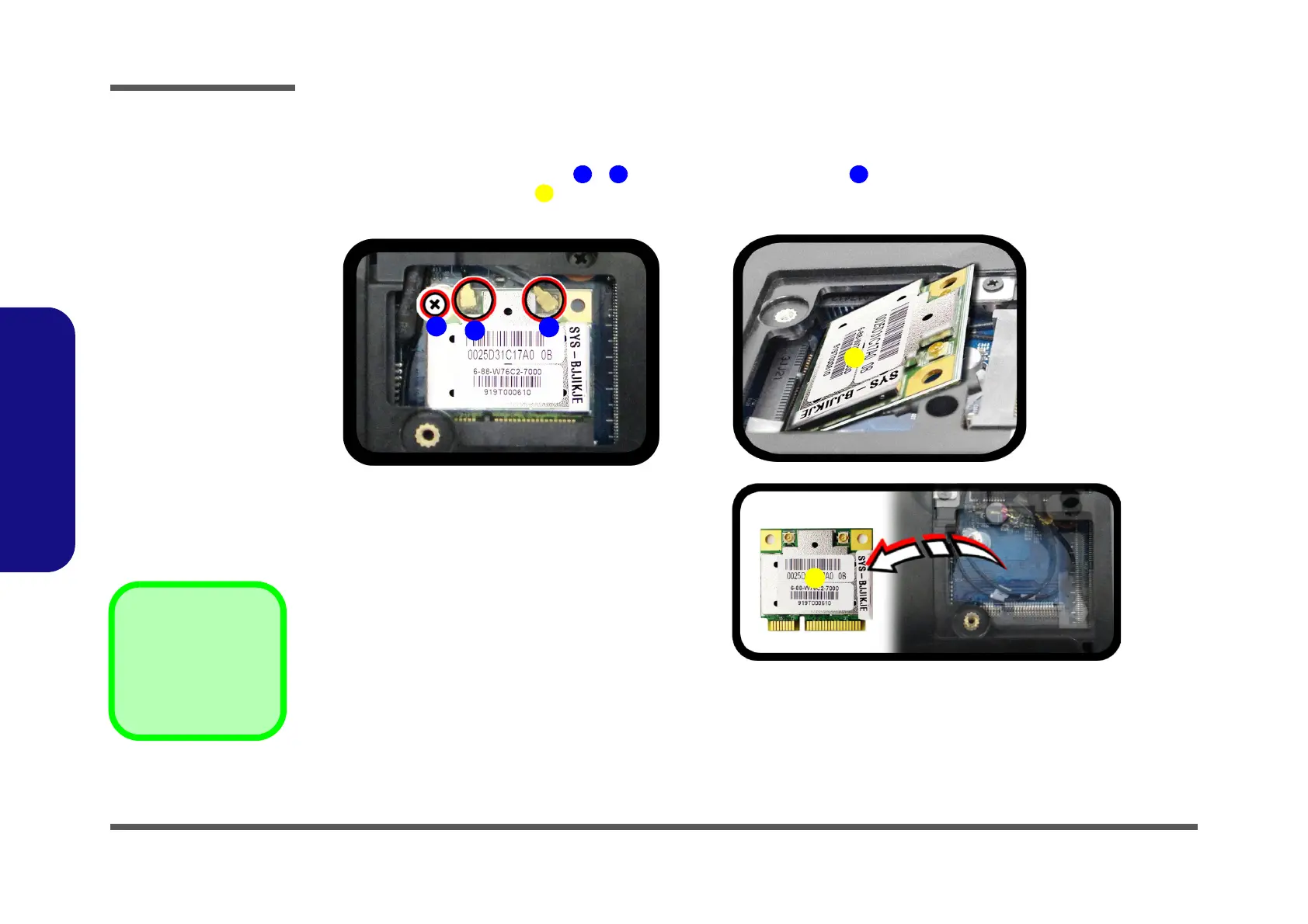

Figure 10
Wireless LAN
Module Removal
a. Disconnect the cables
and remove the screw.
b. The WLAN module will
pop up.
c. Remove the WLAN
module.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 10b).
1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 8).
2. Carefully disconnect the cables
- , and then remove the screw (Figure 10a).
3. The Wireless LAN module (Figure 10b) will pop-up, and you can remove it from the computer.
4. Wireless LAN
Module
•1 Screw
