Disassembly
2 - 8 Removing the Optical (CD/DVD) Device
2.Disassembly
Removing the Optical (CD/DVD) Device
1. Turn off the computer, turn it over to remove the battery (page 2 - 5) and bottom cover (page 2 - 6).
2. Carefully pull out the optical device out of the bay at point (Figure 4a).
3. Carefully pry the bezel off the optical device at point (Figure 4b).
4. Separate the bezel and the optical device (Figure 4c).

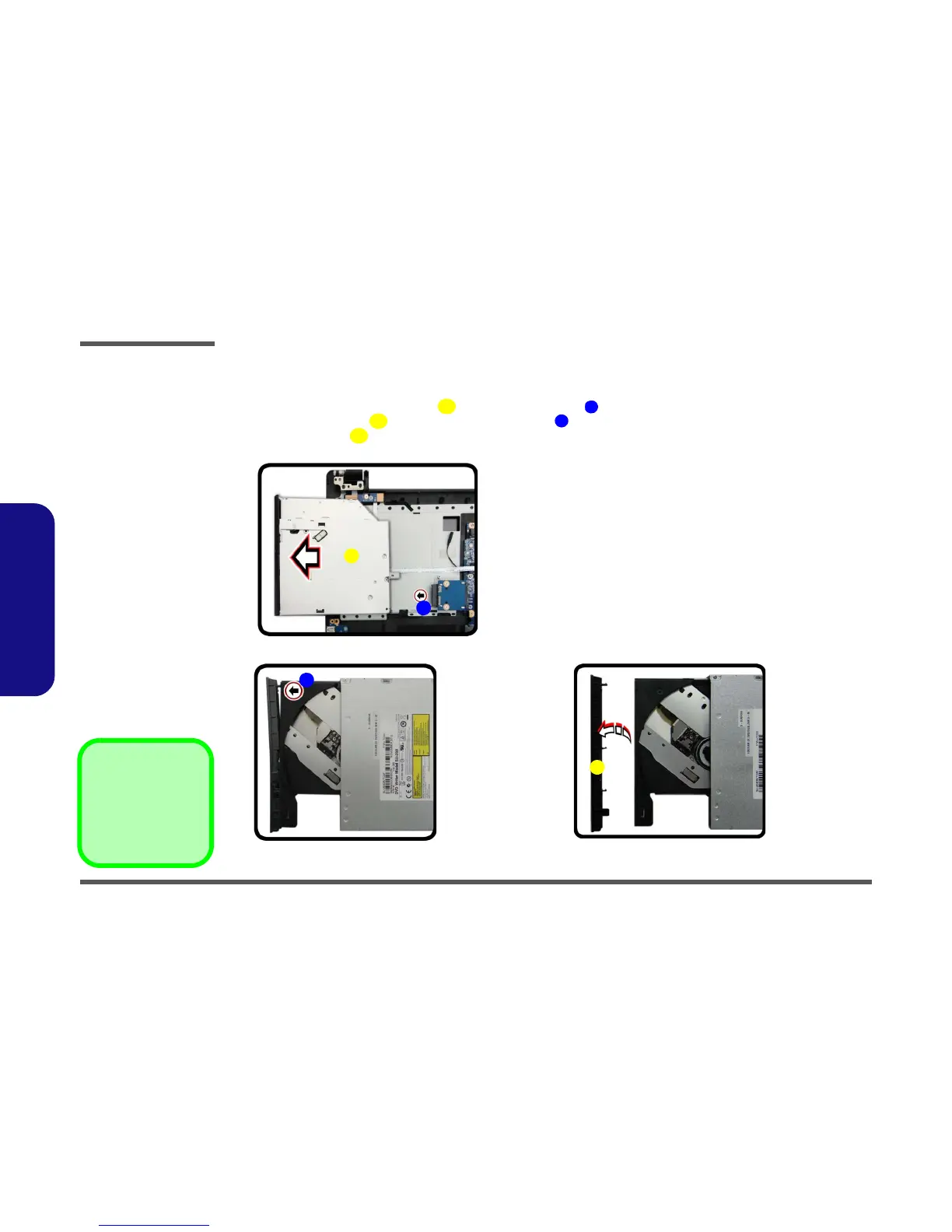

Figure 4
Optical Device
Removal
a. Pull out the optical de-
vice.
b. Pry the bezel off the opti-
cal device.
c. Separate the bezel and
optical device
To Next Page
