Clevo W950TU User Manual

Disassembly
Removing the Keyboard 2 - 13
2.Disassembly
Removing the Keyboard
1. Turn off the computer, turn it over to remove the battery (page 2 - 5).
2. Remove screws - from the bottom case and press at point to release the keyboard (Figure 9a).
3. Turn the computer over, remove the keyboard (Figure 9c).
4. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable . Disconnect the keyboard rib-
bon cable from the locking collar socket (Figure 9d).
5. Carefully lift up the keyboard off the computer (Figure 9e).
1
2
3
4
5
6
4
b.
c.
a.
6
1
4
5
6
4
2
3

4. Keyboard
•2 Screws

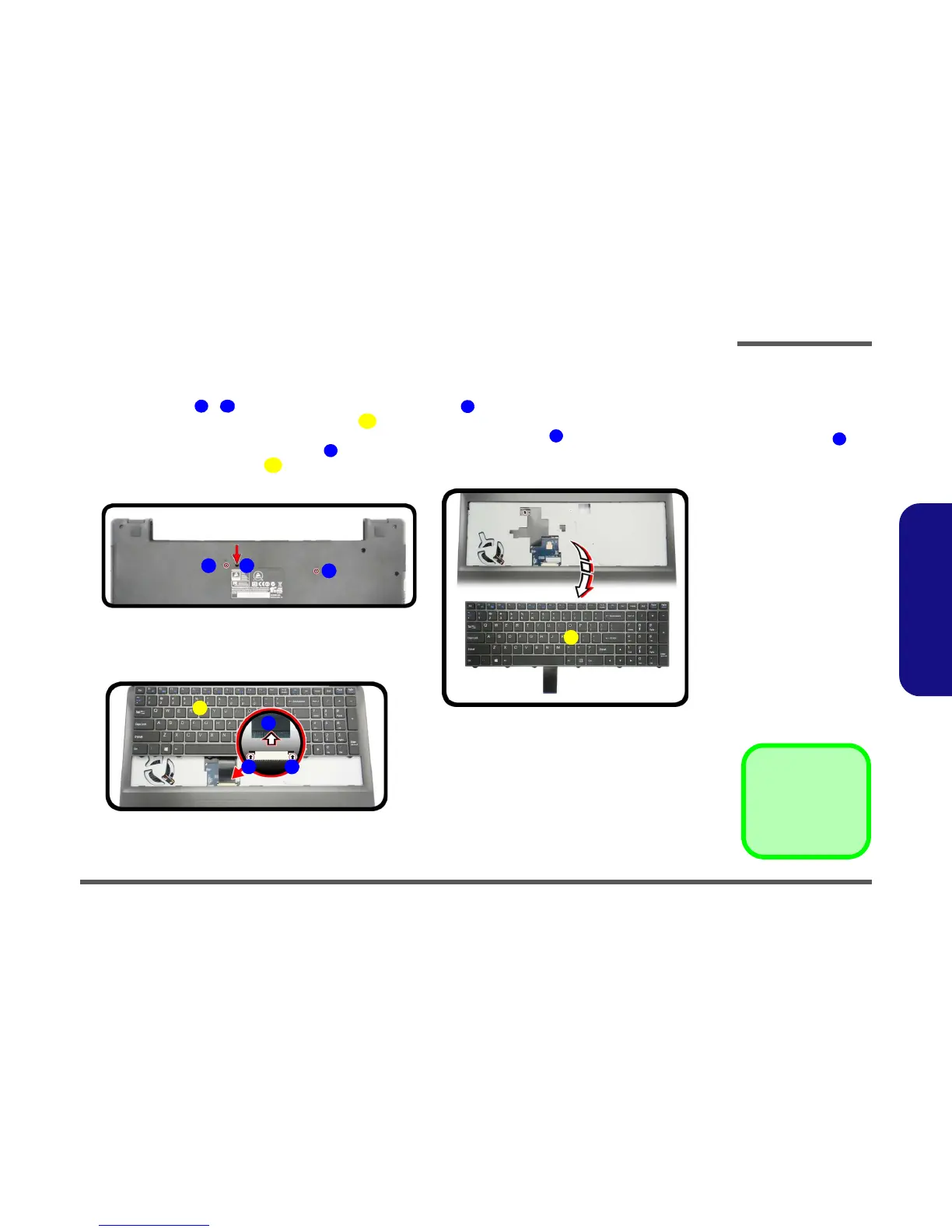

Figure 9
Keyboard Removal
a. Remove screw and re-
lease the keyboard by
pressing at point .
b. Disconnect the keyboard
ribbon cable from the
locking collar socket.
c. Remove the keyboard.
3
