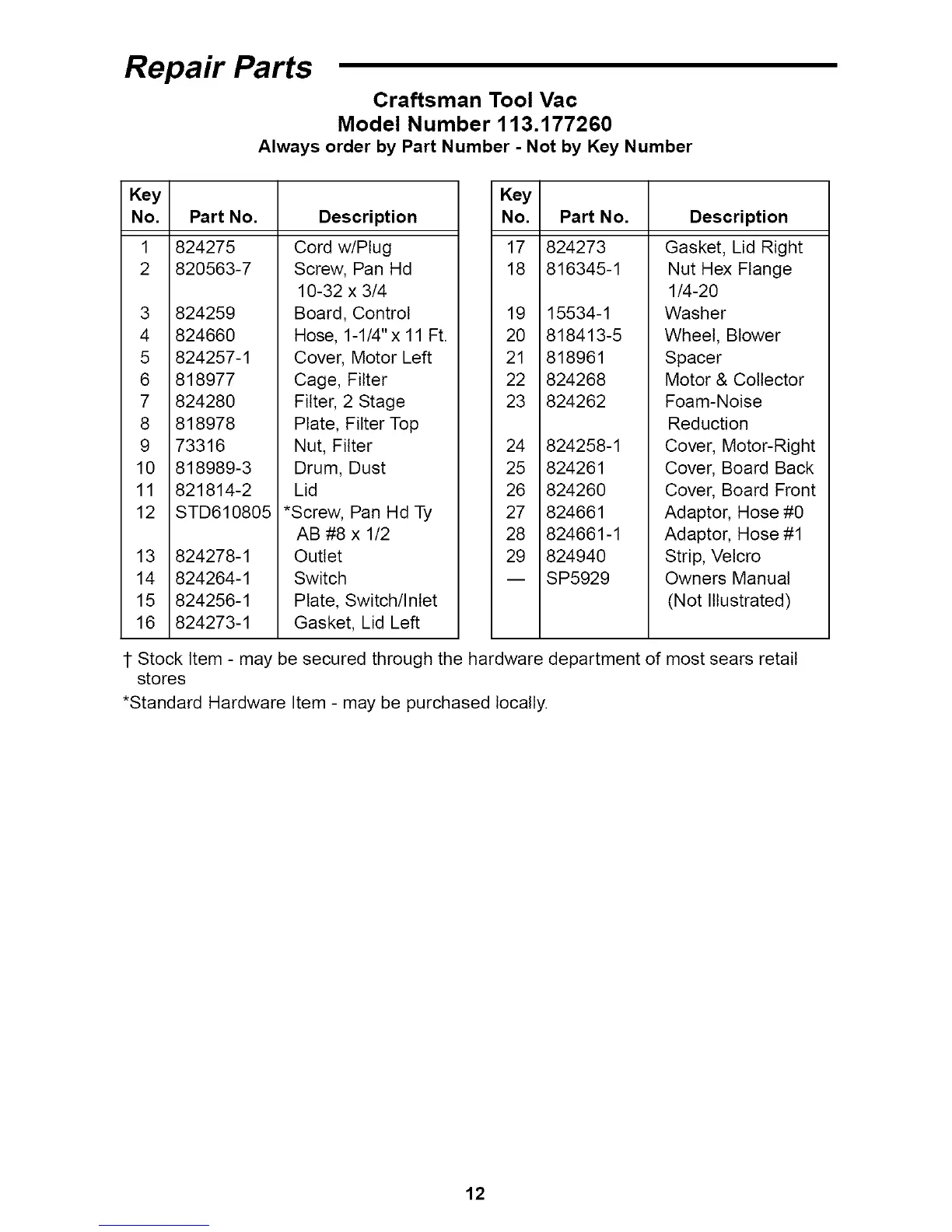

Craftsman 113.177260 User Manual

Repair Parts
Craftsman Tool Vac
Model Number 113.177260
Always order by Part Number - Not by Key Number
Key
No.
1
2
3
4
5
6
7
8
9
10
11
12
Part No.
824275
820563-7
824259
824660
824257-1
818977
824280
818978
73316
818989-3
821814-2
STD610805
13 824278-1
14 824264-1
15 824256-1
16 824273-1
Description
Cord w/Plug
Screw, Pan Hd
10-32 x 3/4
Board, Control
Hose, 1-1/4" x 11 Ft.
Cover, Motor Left
Cage, Filter
Filter, 2 Stage
Plate, Filter Top
Nut, Filter
Drum, Dust
Lid
*Screw, Pan Hd Ty
AB #8 x 1/2
Outlet
Switch
Plate, Switch/Inlet
Gasket, Lid Left
Key
No. Part No.
17 824273
18 816345-1
19 15534-1
20 818413-5
21 818961
22 824268
23 824262
24 824258-1
25 824261
26 824260
27 824661
28 824661-1
29 824940
-- SP5929
Description
Gasket, Lid Right
Nut Hex Flange
1/4-20
Washer
Wheel, Blower
Spacer
Motor & Collector
Foam-Noise
Reduction
Cover, Motor-Right
Cover, Board Back
Cover, Board Front
Adaptor, Hose #0
Adaptor, Hose #1
Strip, Velcro
Owners Manual
(Not Illustrated)
1 Stock Item - may be secured through the hardware department of most sears retail
stores
*Standard Hardware Item - may be purchased locally.
