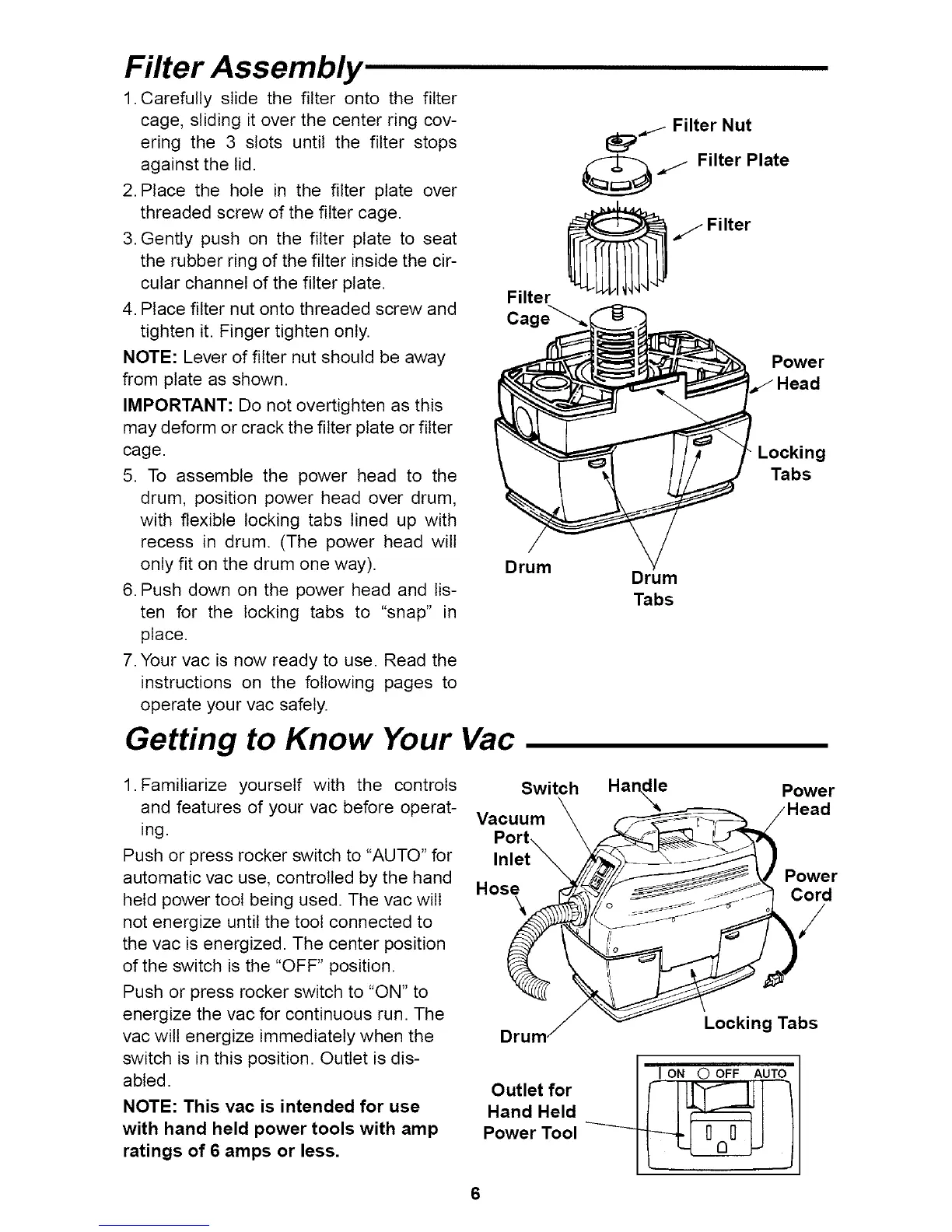

Filter Assembly
1.Carefully slide the filter onto the filter
cage, sliding it over the center ring cov-
ering the 3 slots until the filter stops
against the lid.
2. Place the hole in the filter plate over
threaded screw of the filter cage.
3.Gently push on the filter plate to seat
the rubber ring of the filter inside the cir-
cular channel of the filter plate.
4. Place filter nut onto threaded screw and
tighten it. Finger tighten only.
NOTE: Lever of fitter nut should be away
from plate as shown.
IMPORTANT: Do not overtighten as this
may deform or crack the filter plate or filter
cage.
5. To assemble the power head to the
drum, position power head over drum,
with flexible locking tabs lined up with
recess in drum. (The power head will
only fit on the drum one way).
6. Push down on the power head and lis-
ten for the locking tabs to "snap" in
place.
7.Your vac is now ready to use. Read the
instructions on the following pages to
operate your vac safely.
Getting to Know Your Vac
Drum
_ Filter Nut
,,.j Filter Plate
j Filter
Power
Locking
Tabs
Drum
Tabs
1.Familiarize yourself with the controls
and features of your vac before operat-
ing.
Push or press rocker switch to "AUTO" for
automatic vac use, controlled by the hand
held power toot being used. The vac will
not energize until the tool connected to
the vac is energized. The center position
of the switch is the "OFF" position.
Push or press rocker switch to "ON" to
energize the vac for continuous run. The
vac wilt energize immediately when the
switch is in this position. Outlet is dis-
abled.
NOTE: This vac is intended for use
with hand held power tools with amp
ratings of 6 amps or less,
Switch
Vacuum
Hose
\
Outlet for
Hand Held
Power Tool
Power
Power
Cord
Locking Tabs
I ON 0 OFF AUTO
