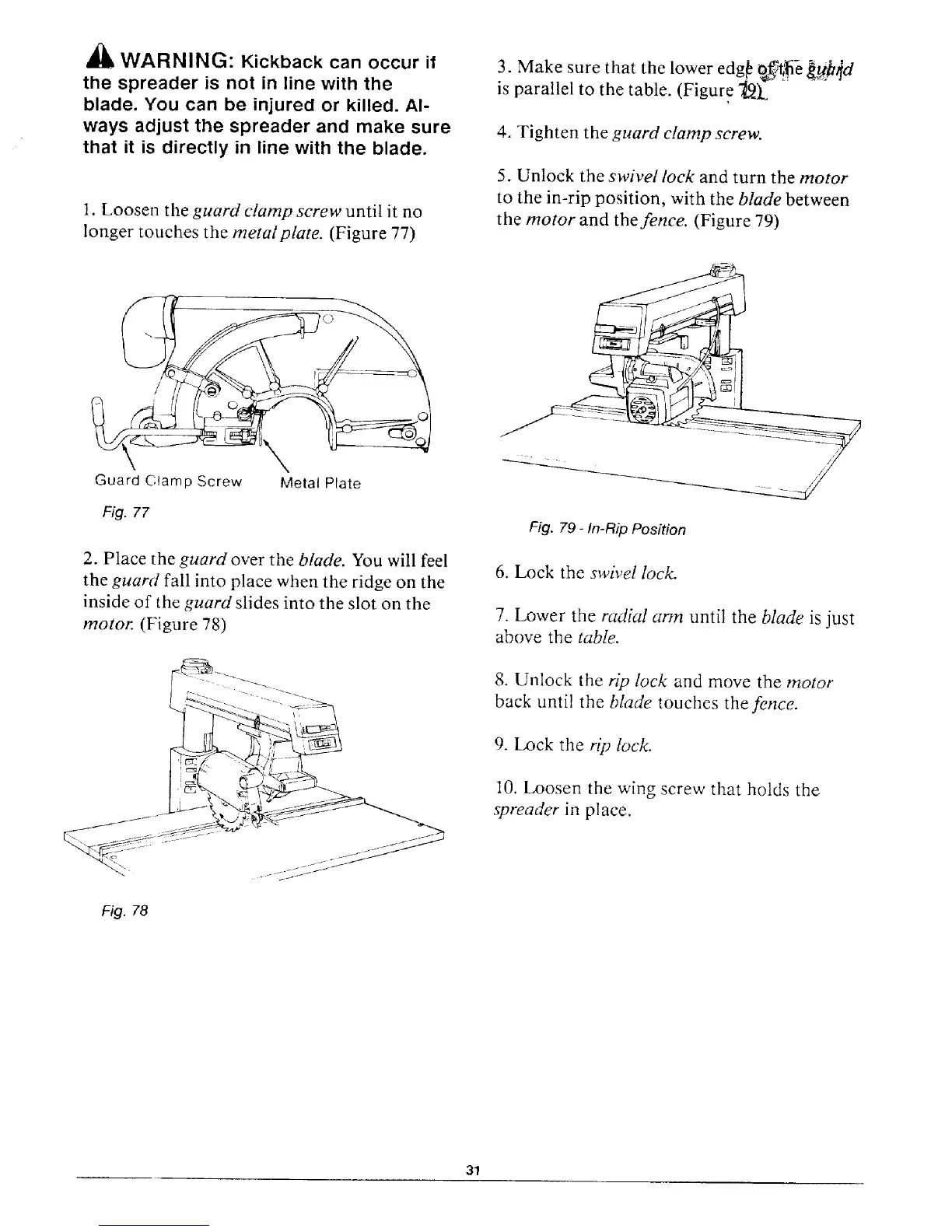

_t_ WARNING" Kickback can occur it
the spreader is not in line with the
blade. You can be injured or killed. Al-
ways adjust the spreader and make sure
that it is directly in line with the blade.
1. Loosen the guard clamp screw until it no
longer touches the metalplate. (Figure 77)
3. Make sure that the lower edg_ _{_e _.@qd
is parallel to the table. (Figure "_._L
4. Tighten the guard clamp screw.
5. Unlock the swivel lock and turn the motor
to the in-rip position, with the blade between
the motor and the fence. (Figure 79)
Guard (:lamp Screw
Fig.77
Metal Plate
2. Place the guard over the blade. You will feel
the guard fall into place when the ridge on the
inside of the guard slides into the slot on the
motor. (Figure 78)
Fig. 78
Fig. 79 - In-Rip Position
6. Lock the swive! lock.
7. Lower the radial arm until the blade is just
above the table.
8. Unlock the rip lock and move the motor
back until the blade touches the fence.
9. Lock the rip lock.
10. Loosen the wing screw that holds the
spreader in place.
31
