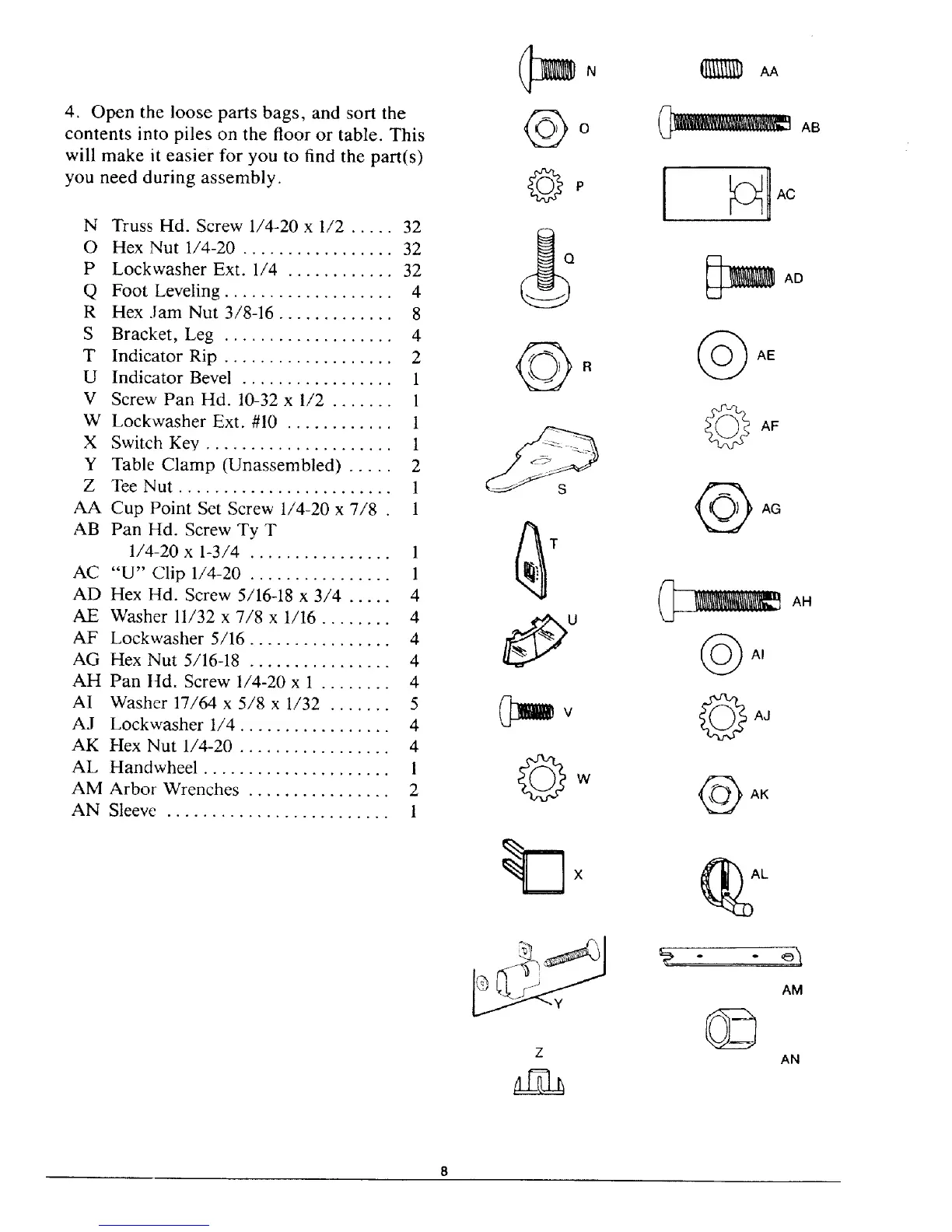

4. Open the loose parts bags, and sort the
contents into piles on the floor or table. This
will make it easier for you to find the part(s)
you need during assembly.
N Truss Hd. Screw 1/4-20 x 1/2 ..... 32
O Hex Nut 1/4-20 ................. 32
P Lockwasher Ext. 1/4 ............ 32
Q Foot Leveling ................... 4
R Hex Jam Nut 3/8-16 ............. 8
S Bracket, Leg ................... 4
T Indicator Rip ................... 2
U Indicator Bevel ................. 1
V Screw Pan Hd. 10-32 x 1/2 ....... 1
W Lockwasher Ext. #10 ............ 1
X Switch Ke,¢ ..................... 1
Y Table Clamp (Unassembled) ..... 2
Z Tee Nut ........................ 1
AA Cup Point Set Screw 1/4-20 x 7/8 . 1
AB Pan Hd. Screw Ty T
1/4-20 x 1-3/4 ................ 1
AC "U" Clip 1/4-20 ................ 1
AD Hex Hd. Screw 5/16-18 x 3/4 ..... 4
AE Washer 11/32 x 7/8 x 1/16 ........ 4
AF Lockwasher 5/16 ................ 4
AG Hex Nut 5/16-18 ................ 4
AH Pan ltd. Screw 1/4-20 x 1 ........ 4
AI Washer 17/64 x 5/8 x 1/32 ....... 5
AJ Lockwasher 1/4 ................. 4
AK Hex Nut 1/4-20 ................. 4
AL Handwheel ..................... 1
AM Arbor Wrenches ................ 2
AN Sleeve ......................... 1
©°
©P
R
t3
©w
×
AA
I Ac
AB
AH
Z
AM
AN
