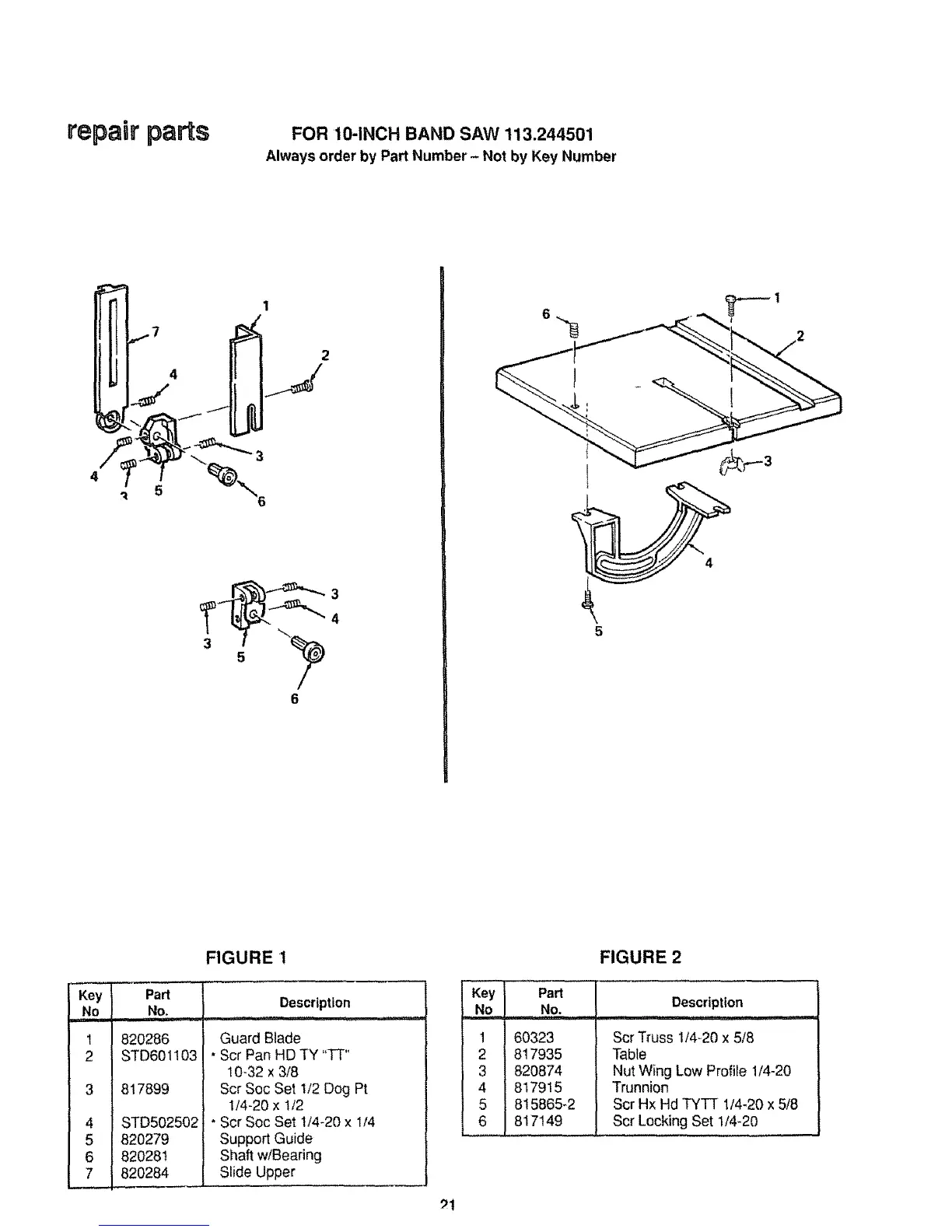

repair parts
FOR 10-INCH BAND SAW 113.244501
Always order by Part Number - Not by Key Number
2
4
4
6
5
NO
1
2
3
4
5
6
7
FIGURE 1
Part
No.
820286
STD601103
817899
STD502502
820279
820281
820284
Description
i,in,,ll,,=
Guard Blade
. Scr Pan HD TY "TT"
10-32 x 3/8
Scr Soc Set 1/2 Dog Pt
1/4-20 x 1/2
" Scr Soc Set 1/4-20 x 114
Support Guide
Shaft w/Bearing
Slide Upper
Key
NO,,,II,
1
2
3
4
5
6
FIGURE 2
Pad
No,
u
60323
817935
820874
817915
815865_2
817149
Description
, i, i1,, i,i, i.... i,i ii1,1,lilt
Scr Truss 1/4-20 x 5/8
Table
Nut Wing Low Profile I/4-20
Trunnion
Scr Hx Hd TYTT 1/4_20 x 5/8
Scr Locking Set 1/4-20
