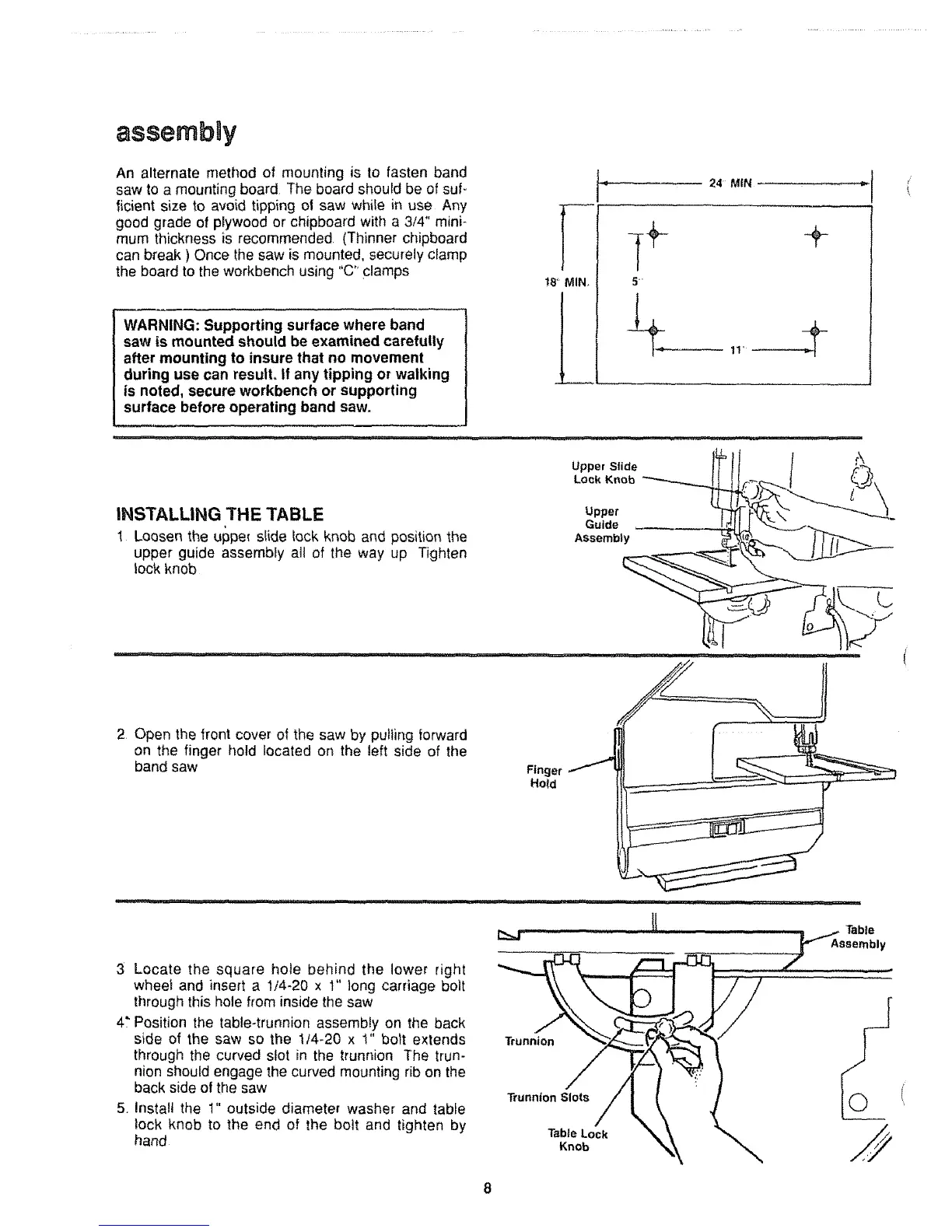

assembOy
An alternate method of mounting is to fasten band
saw to a mounting board The board should be of suf-
ficient size to avoid tipping el saw while in use Any
good grade of plywood or chipboard with a 3/4" mini-
mum thickness is recommended, (Thinner chipboard
can break ) Once the saw is mounted, securely clamp
the board to the workbench using "C" ;:lamps
WARNING: Supporting surface where band
saw is mounted should be examined carefully
after mounting to insure that no movement
during use can result, tf any tipping or walking
is noted, secure workbench or supporting
surface before operating band saw.
18' MIN,
24 MIN ...... .......
t
Upper Slide
Lock Knob
INSTALLING THE TABLE
1 Loosen the upper slide lock knob and position the
upper guide assembly atl of the way up Tighten
lock knob
Upper
Guide ,
Assembly
2 Open the front cover of the saw by pulling forward
on the finger hold located on the left side of the
band saw
Finger
Ho_d
3 Locate the square hole behind the lower right
wheet and insert a 1/4-20 x 1" long carriage bolt
through this hole from inside the saw
4" Position the table-trunnion assembly on the back
side of the saw so the 1/4-20 x l" boit extends
through the curved slot in the trunnion The trun-
nion should engage the curved mounting rib on the
back side of the saw
5, Install the t" outside diameter washer and table
lock knob to the end of the bolt and tighten by
hand
Trunnion
Trunnion Slots
Table Lock
Knob
[
/
!o
