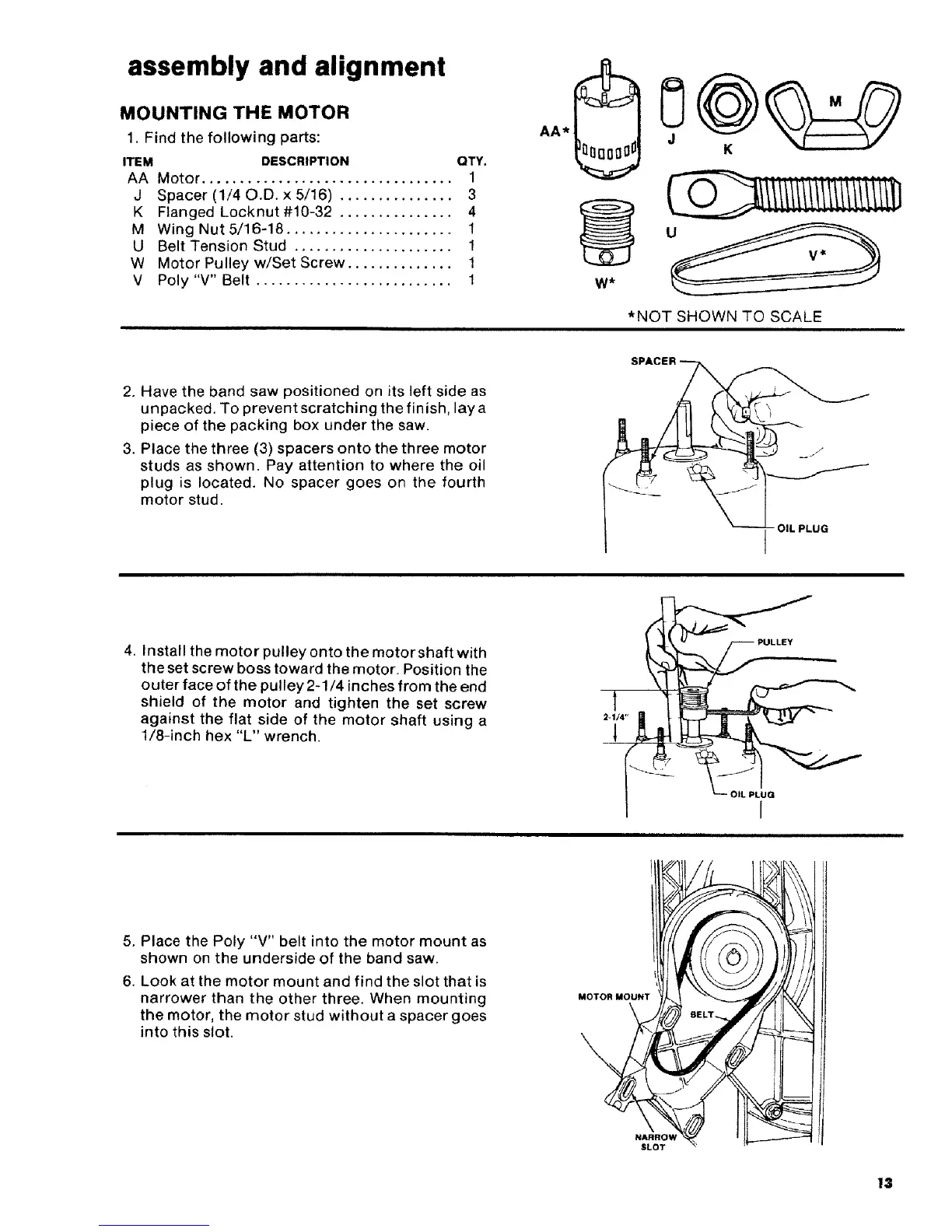

assembly and alignment
MOUNTING THE MOTOR
1. Find the following parts:
ITEM DESCRIPTION QTY.
AA Motor ................................. 1
J Spacer (1/40.D. x 5/16) ............... 3
K Flanged Locknut#10-32 ............... 4
M Wing Nut 5/16-18 ...................... 1
U Belt Tension Stud ..................... 1
W Motor Pulley w/Set Screw .............. 1
V Poly "V" Belt .......................... 1
)
W _
J K
*NOT SHOWN TO SCALE
2, Have the band saw positioned on its left side as
unpacked, To prevent scratching the finish, lay a
piece of the packing box under the saw.
3. Place the three (3) spacers onto the three motor
studs as shown. Pay attention to where the oil
plug is located. No spacer goes on the fourth
motor stud.
OIL PLUG
4. Install the motor pulley onto the motor shaft with
the set screw boss toward the motor. Position the
outer face of the pulley 2-1/4 inches from the end
shield of the motor and tighten the set screw
against the flat side of the motor shaft using a
1/8-inch hex "L" wrench.
2-1/4 +'
1
PULLEY
OIL PLUG
f
5. Place the Poly "V" belt into the motor mount as
shown on the underside of the band saw.
6, Look at the motor mount and find the slot that is
narrower than the other three. When mounting
the motor, the motor stud without a spacer goes
into this slot.
MOTOR MOUNT
NARROW
SLOT
13
