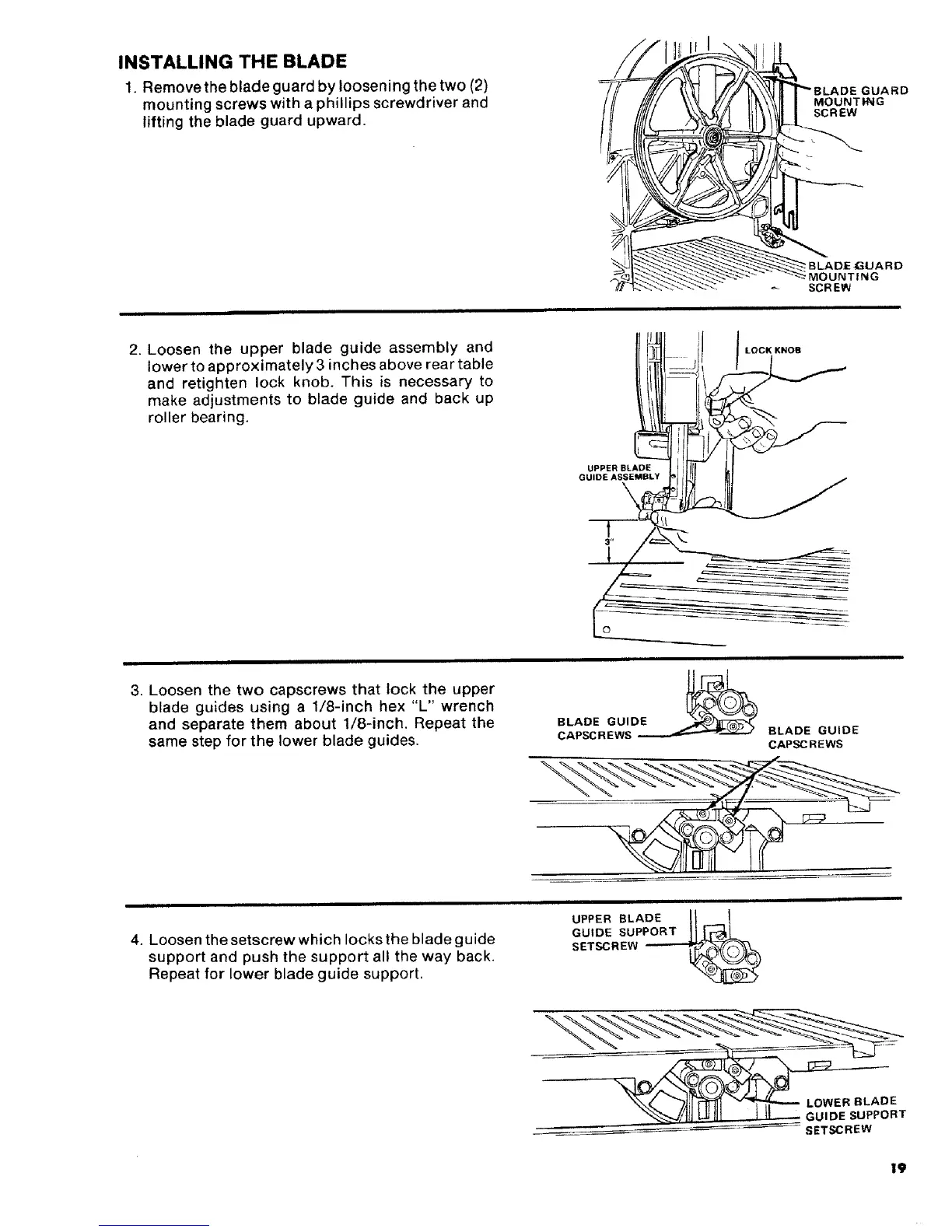

INSTALLING THE BLADE
1. Remove the blade guard by loosening the two (2)
mounting screws with a phillips screwdriver and
lifting the blade guard upward.
MOUNTING
SCR EW
BLADE _
ING
SCREW
2. Loosen the upper blade guide assembly and
lower to approximately 3 inches above rear table
and retighten lock knob. This is necessary to
make adjustments to blade guide and back up
roller bearing.
3. Loosen the two capscrews that lock the upper
blade guides using a 1/8-inch hex "L" wrench
and separate them about 1/8-inch. Repeat the
same step for the lower blade guides.
BLADE GUIDE
CAPSCREWS
4. Loosen the setscrew which locks the blade guide
support and push the support all the way back.
Repeat for lower blade guide support.
UPPERBLADE 11 (
GUIDE SUPPORT I).[-_.L_
SETSCREW __
"-,,,\"",,J!lJ}LJJ(J) ) )1-- GUIDE SUPPORT
.... _-_'- _ SETSCREW
19
