Craftsman 113.248510 User Manual

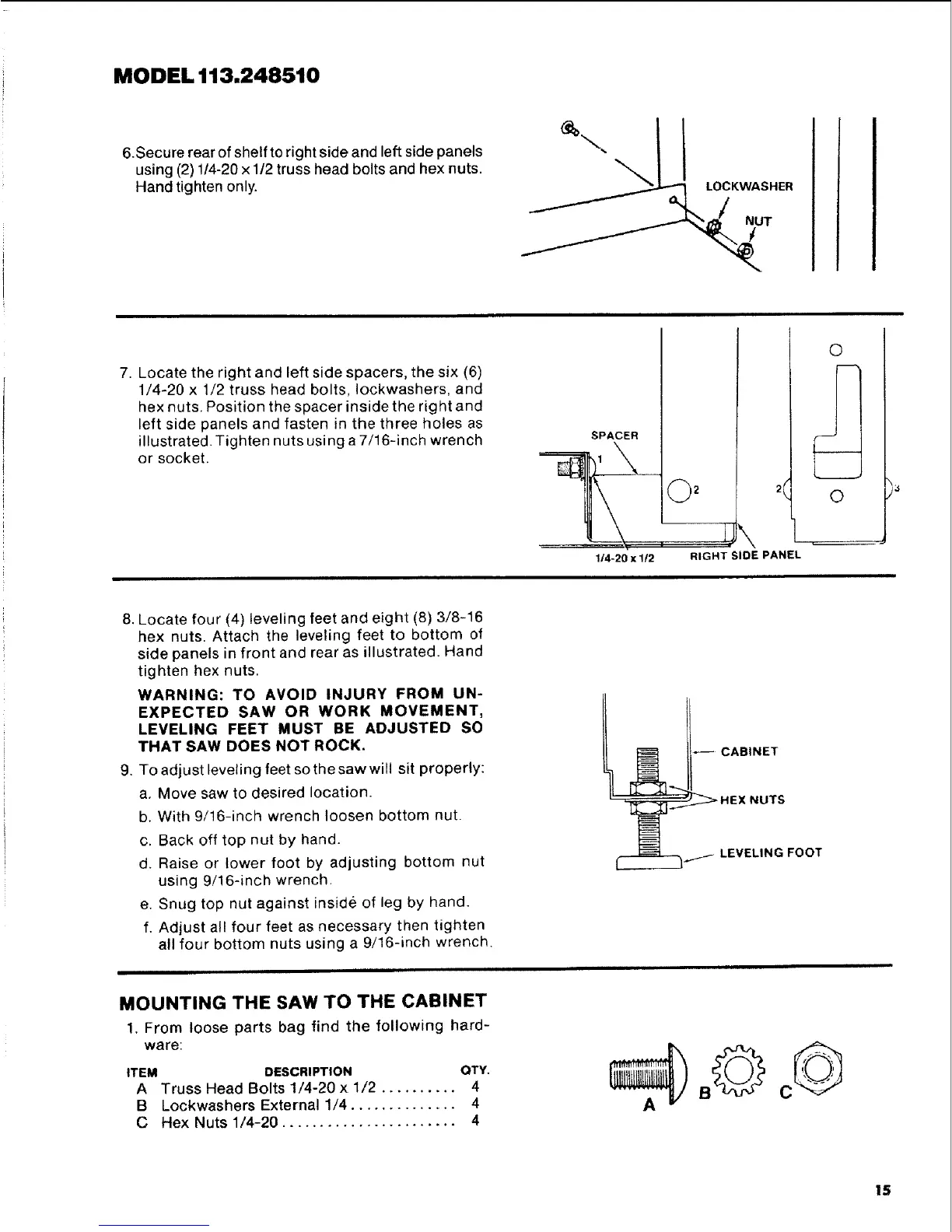

MODEL 113.248510
6.Secure rear of shelf to right side and left side panels
using (2) 1/4-20 x 1/2 truss head bolts and hex nuts.
Hand tighten only.
LOCKWASHER
NUT
I
7. Locate the right and left side spacers, the six (6)
1/4-20 x 1/2 truss head bolts, Iockwashers, and
hex nuts. Position the spacer inside the right and
left side panels and fasten in the three holes as
illustrated. Tighten nuts using a 7/16-inch wrench
or socket.
SPACER
2
©
©
1/'4-20 x 1!2 RIGHT SIDE PANEL
g.
Locate four (4) leveling feet and eight (8) 3/8-16
hex nuts. Attach the leveling feet to bottom of
side panels in front and rear as illustrated. Hand
tighten hex nuts.
WARNING: TO AVOID INJURY FROM UN-
EXPECTED SAW OR WORK MOVEMENT,
LEVELING FEET MUST BE ADJUSTED SO
THAT SAW DOES NOT ROCK.
To adjust leveling feet so the saw will sit properly:
a. Move saw to desired location.
b. With 9/16-inch wrench loosen bottom nut.
c. Back off top nut by hand.
d. Raise or lower foot by adjusting bottom nut
using 9/16-inch wrench.
e. Snug top nut against inside of leg by hand.
f. Adjust all four feet as necessary then tighten
all four bottom nuts using a 9/16-inch wrench.
MOUNTING THE SAW TO THE CABINET
1, From loose parts bag find the following hard-
ware:
ITEM DESCRIPTION QTY.
A Truss Head Bolts 1/4-20 x 1/2 .......... 4
B Lockwashers External 1/4 .............. 4
C Hex Nuts 1/4-20 ....................... 4
c©
t5
