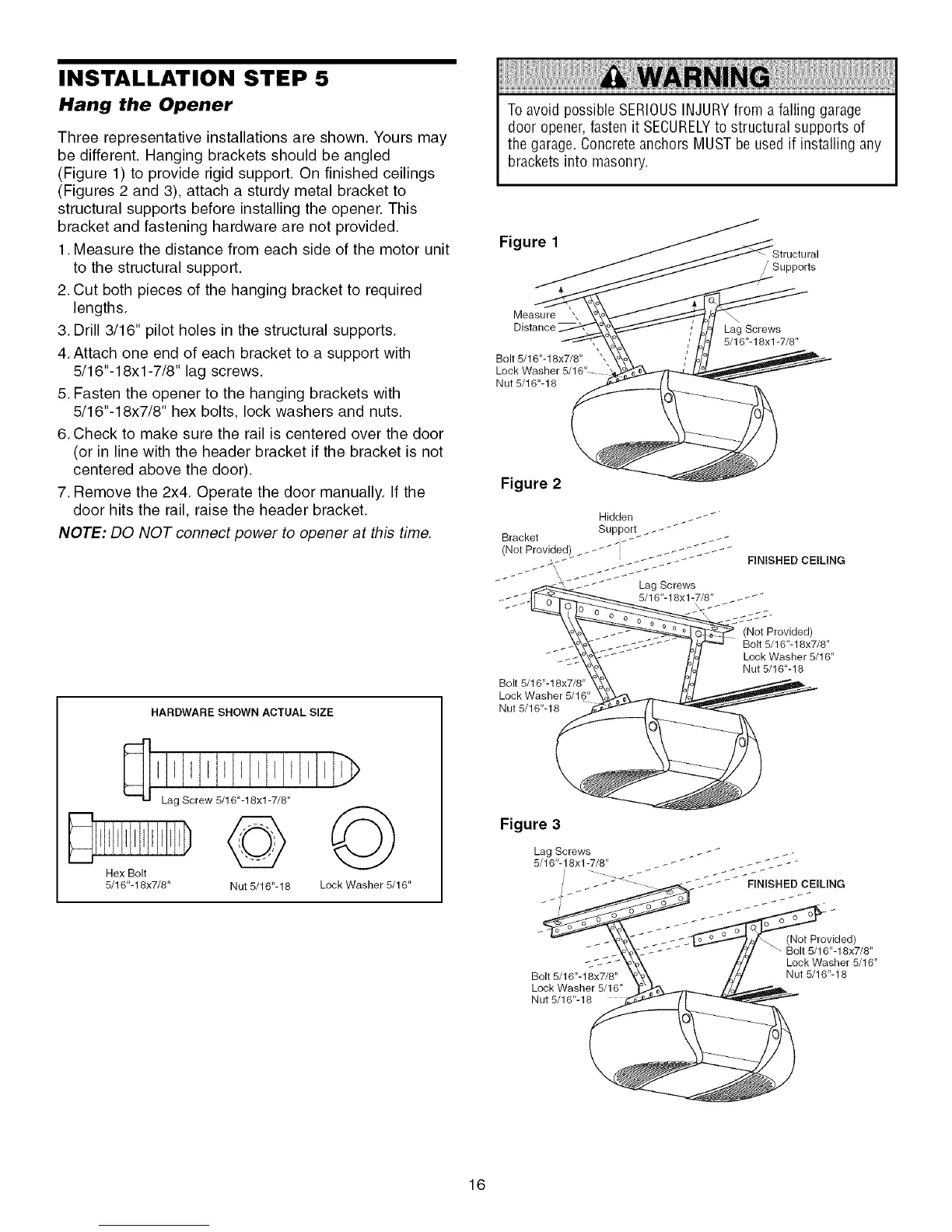

INSTALLATION STEP 5
Hang the Opener
Three representative installations are shown. Yours may
be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished ceilings
(Figures 2 and 3), attach a sturdy metal bracket to
structural supports before installing the opener. This
bracket and fastening hardware are not provided.
1. Measure the distance from each side of the motor unit
to the structural support.
2. Cut both pieces of the hanging bracket to required
lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"-18xl -7/8" lag screws.
5. Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.
6. Check to make sure the rail is centered over the door
(or in line with the header bracket if the bracket is not
centered above the door).
7. Remove the 2x4. Operate the door manually. If the
door hits the rail, raise the header bracket.
NOTE: DO NOT connect power to opener at this time.
HARDWARE SHOWN ACTUAL SIZE
Toavoid possible SERIOUSINJURYfrom a falling garage
door opener, fasten it SECURELYto structural supports of
the garage.Concreteanchors MUST be used if installing any
brackets into masonry.
Figure 1
r' Supports
Measure ',
Distance
\
Bolt 5/16"-18x7/8" ',
Lock Washer 5/16"
Nut 5/16"-18
Lag Screws
5/16"-18xl -7/8"
Figure 2
Hidden _ __ _
Bracket Support _ _ __
(Not Provided) _ _ .... _ --_t_
_ FINISHED CEILING
_ Lag Screws
_ 5/16"-18xl-7/8" _J
(Not Provided)
Bolt 5/16"-18x7/8"
_ Lock Washer 5/16"
Nut 5/16"-18
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Figure 3
Lag Screws _ _ _ _ _-
5/16"-18xl -7/8" _ _ _
Bolt 5/16"-18x7/8" "_\ ,/js/ Nut 5/16"-18
16
