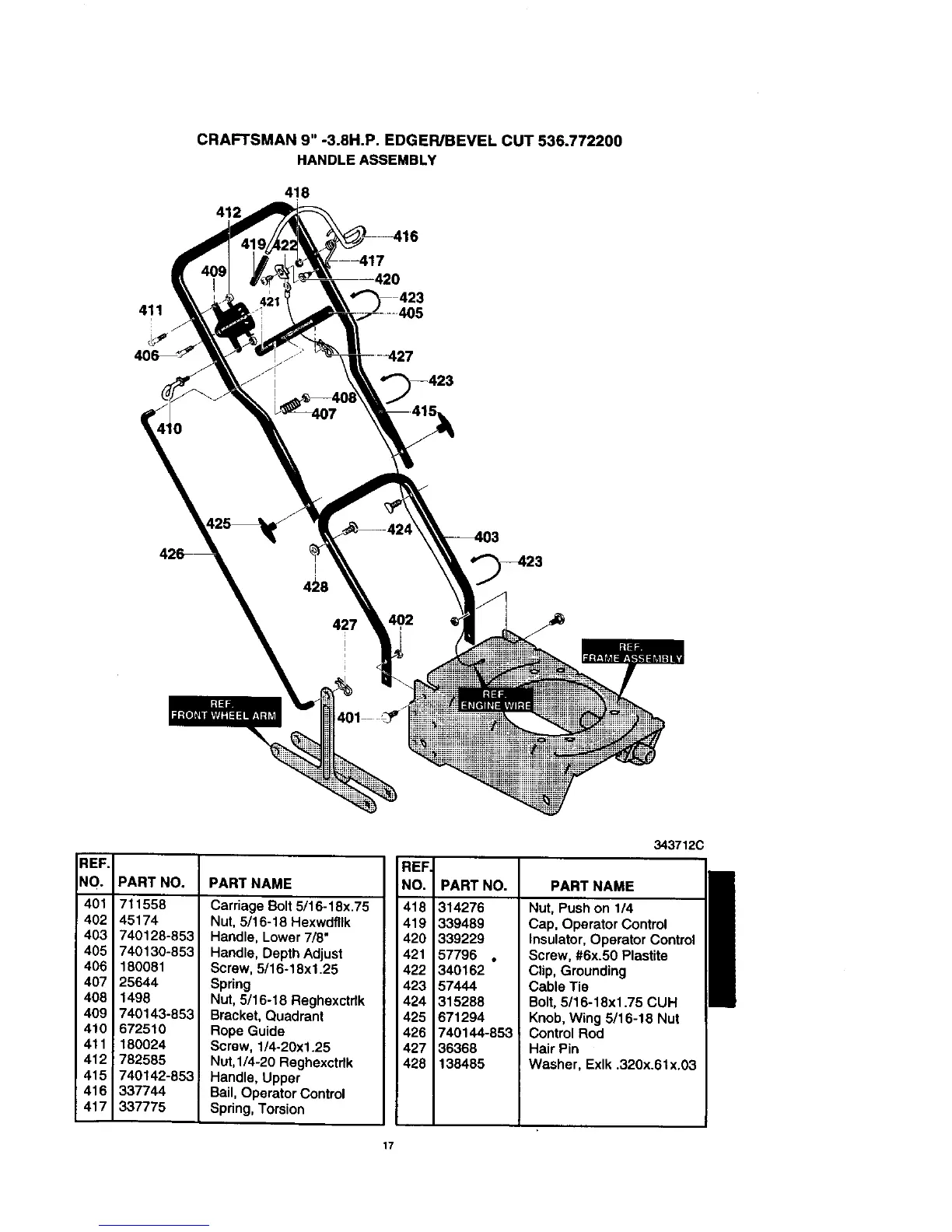

CRAFTSMAN 9" -3.8H.P. EDGER/BEVEL CUT 536.772200
HANDLE ASSEMBLY
4!8
412
428
IREF.
INO.
1401
402
403
405
406
407
408
409
410
411
412
415
416
417
PART NO.
711558
45174
740128-853
740130-853
180081
25644
1498
740143-853
672510
180024
782585
740142-853
337744
337775
PART NAME
Carriage Bolt 5/16-18x.75
Nut,5/16-18 Hexwdfllk
Handle, Lower 7/8"
Handle, Depth Adjust
Screw, 5/16-18xl .25
Spring
Nut, 5/16-18 Reghexctdk
Bracket, Quadrant
Rope Guide
Screw, 1/4-20xl.25
Nut,1/4-20 Reghexctdk
Handle, Upper
Bail, Operator Control
Spring, Torsion
REF
NO.
418
419
420
421
422
423
424
425
426
427
428
17
343712_
PART NO.
314276
339489
339229
57796 ,
340162
57444
315288
671294
740144-85;
36368
138485
PART NAME
Nut, Push on 1/4
Cap, Operator Control
Insulator,Operator Control
Screw, #6x.50 Plastite
Clip, Grounding
Cable Tie
Bolt,5/16-18xl .75 CUH
Knob,Wing 5/16-18 Nut
ControlRod
Hair Pin
Washer, Exlk .320x.61x.03
