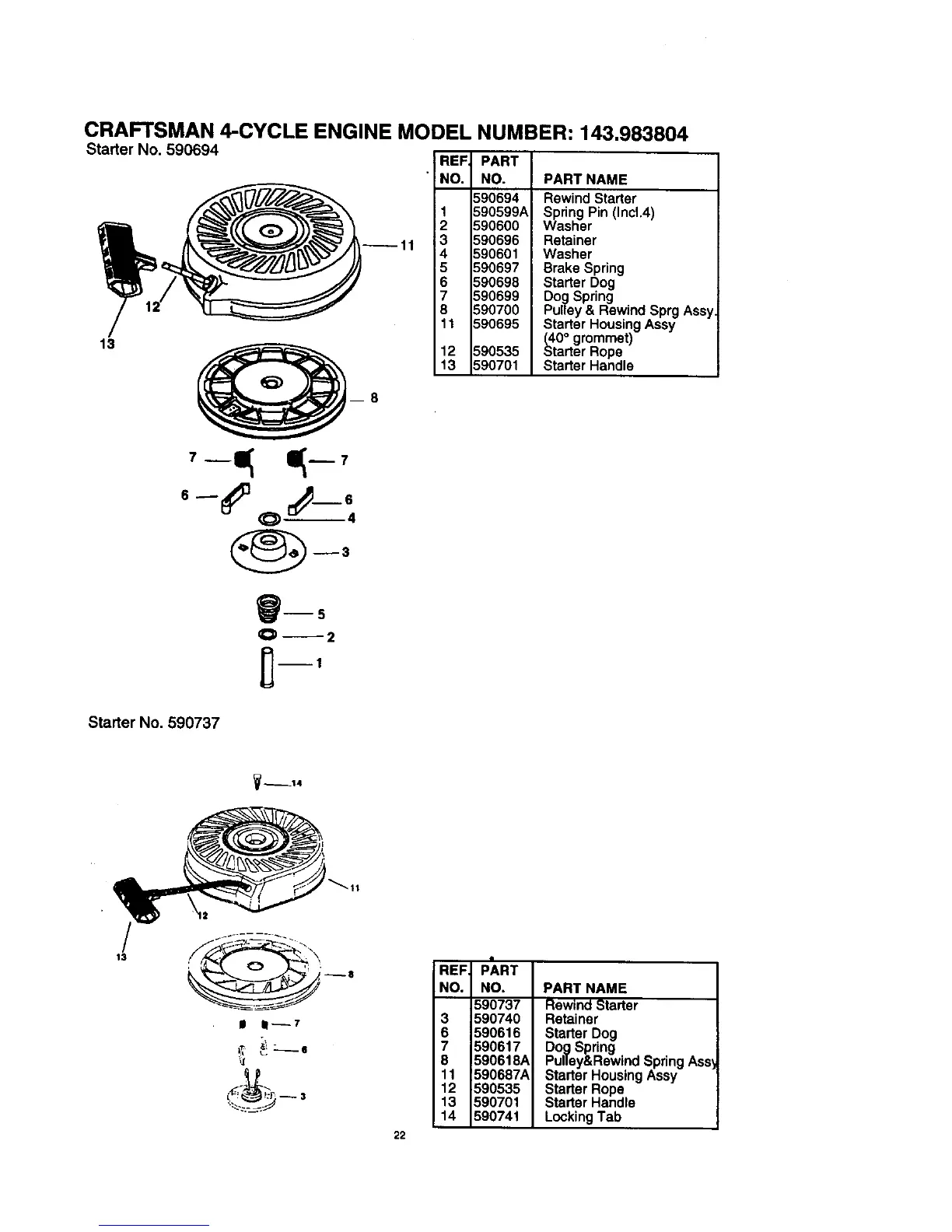

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER: 143.983804
Starter No. 590694
13
7__=;
I REF PART
NO. NO. PART NAME
590694 Rewind Starter
1 590599/_ Spring Pin (Incl.4)
2 590600 Washer
3 590696 Retainer
4 590601 Washer
5 590697 Brake Spring
6 590698 Starter Dog
7 390699 )og Spring
8 390700 >ulley& Rewind Sprg Assy
1t 590695 ;tarter HousingAssy
(=40° grommet)
12 390535 Starter Rope
13 590701 Starter Handle
Starter No. 590737
_14
\!
II 111_7
22
REF PART
NO. NO.
590737
3 590740
6 590616
7 590617
8 590618A
11 590687A
12 590535
13 590701
14 590741
PART NAME
Rewind Starter
Retainer
Starter Dog
Dog Spring
Pulley&RewindSpringAss_
Starter HousingAssy
Starter Rope
Starter Handle
LockingTab
