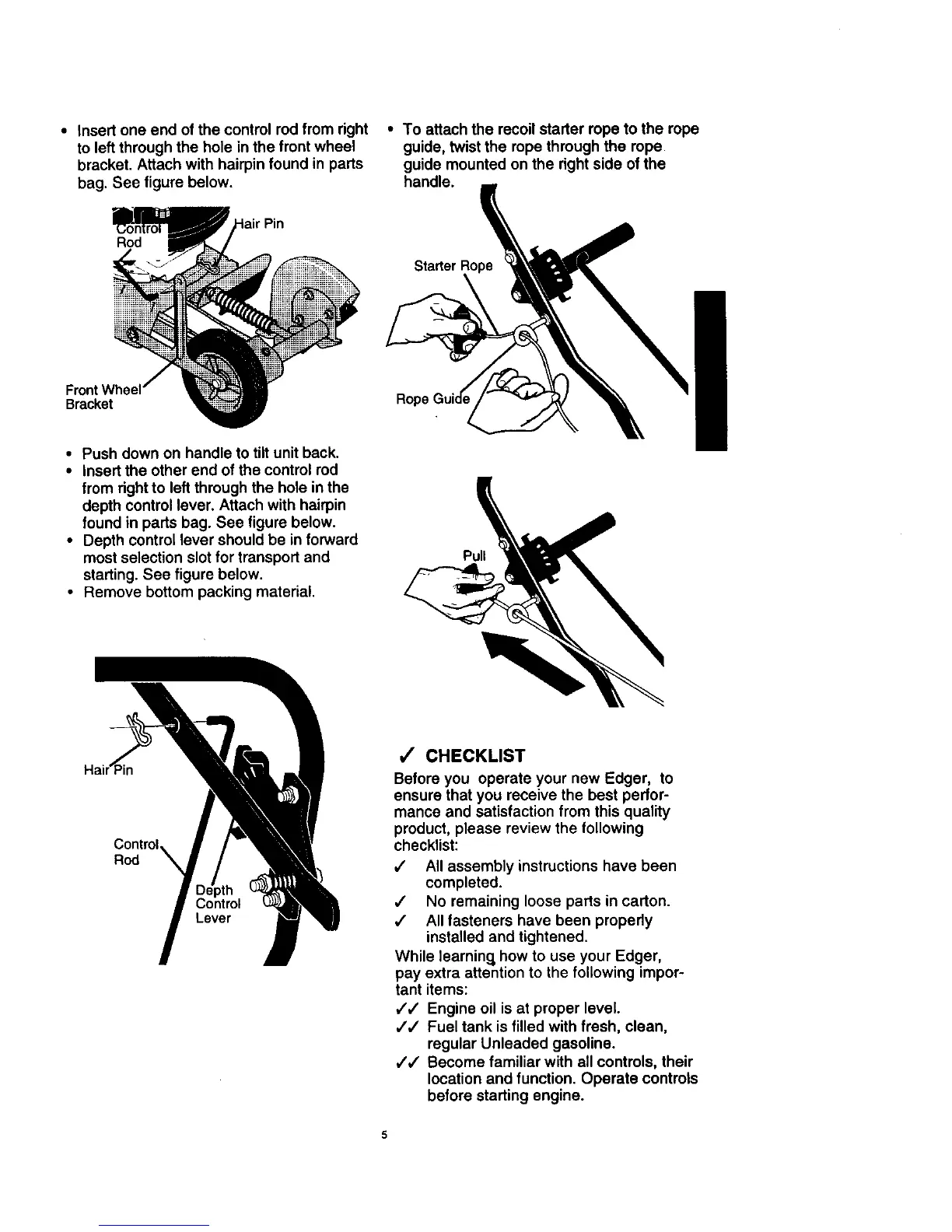

• Insertoneendofthe control rod from right
to left through the hole in the front wheel
bracket. Attach with hairpin found in parts
bag. See figure below.
• To attach the recoil starter rope to the rope
guide, twist the rope through the rope
guide mounted on the right side of the
handle.
r Pin
Rod
Bracket
Rope
• Push down on handle to tilt unit back.
• Insert the other end of the control rod
from right to left through the hole in the
depth control lever. Attach with hairpin
found in parts bag. See figure below.
• Depth control lever should be in forward
most selection slot for transport and
starting. See figure below.
• Remove bottom packing material.
Pull
Rod
Lever
J CHECKLIST
Before you operate your new Edger, to
ensure that you receive the best perfor-
mance and satisfaction from this quality
product, please review the following
checklist:
,/ All assembly instructions have been
completed.
,/ No remaining loose parts in carton.
,I All fasteners have been properly
installed and tightened.
While learning, how to use your Edger,
pay extra attention to the following impor-
tant items:
,/,/ Engine oil is at proper level.
,/,/ Fuel tank is filled with fresh, clean,
regular Unleaded gasoline.
,/,/ Become familiar with all controls, their
location and function. Operate controls
before starting engine.
