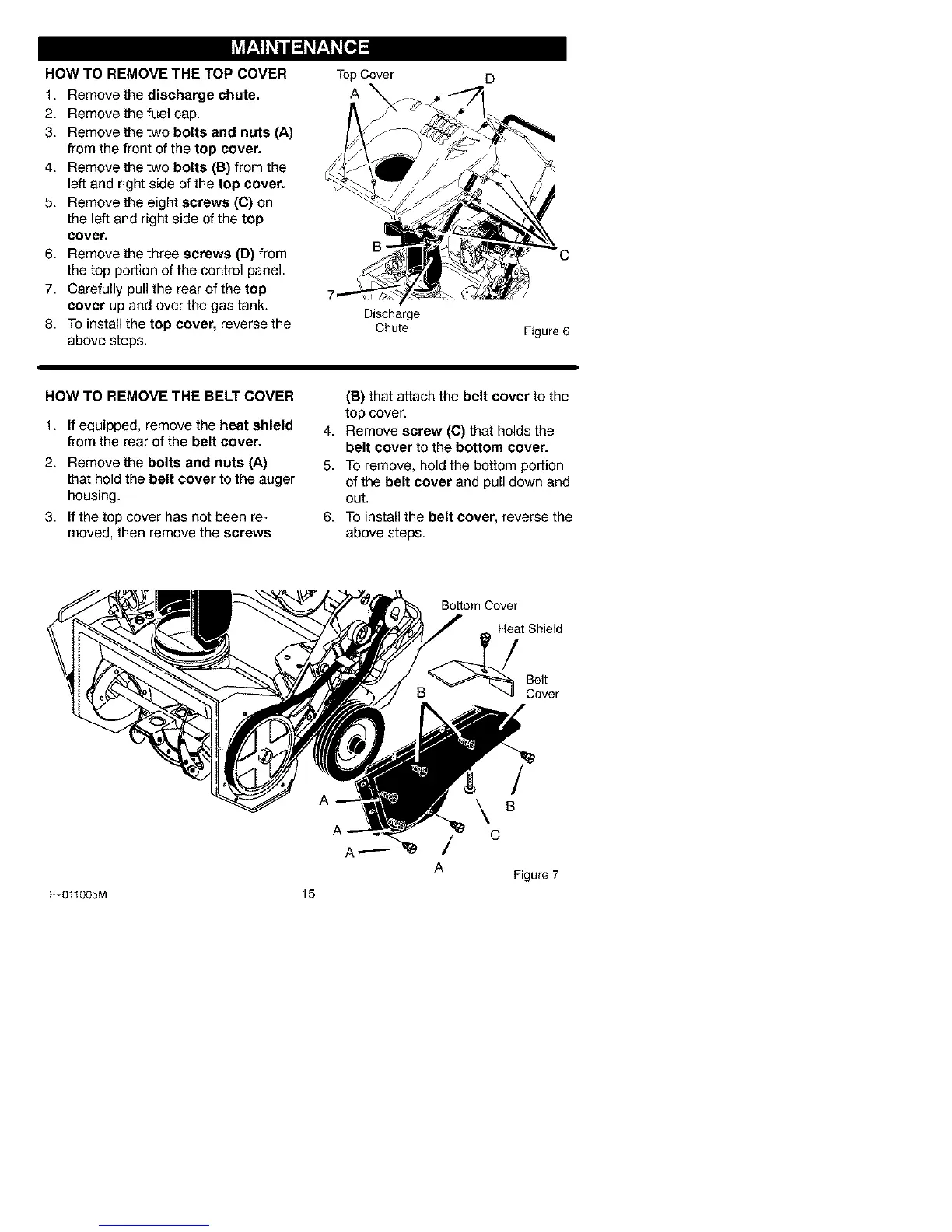

HOW TO REMOVE THE TOP COVER
1. Remove the discharge chute.
2. Remove the fuel cap.
3. Remove the two bolts and nuts (A)
from the front of the top cover.
4. Remove the two bolts (B) from the
left and right side of the top cover.
5. Remove the eight screws (C) on
the left and right side of the top
cover.
6. Remove the three screws (D) from
the top portion of the control panel.
7. Carefully pull the rear of the top
cover up and over the gas tank.
8. To install the top cover, reverse the
above steps.
TopCover
A
Discharge
Chute
D
Figure 6
HOW TO REMOVE THE BELT COVER
1. If equipped, remove the heat shield
from the rear of the belt cover.
2. Remove the bolts and nuts (A)
that hold the belt cover to the auger
housing.
3. If the top cover has not been re+
moved, then remove the screws
(B) that attach the belt cover to the
top cover.
4. Remove screw (C) that holds the
belt cover to the bottom cover.
5. To remove, hold the bottom portion
of the belt cover and pull down and
out.
6. To install the belt cover, reverse the
above steps.
Bottom Cover
Heat Shield
Belt
Cover
F-011005M
15
A
\
/ c
A
B
Figure 7
