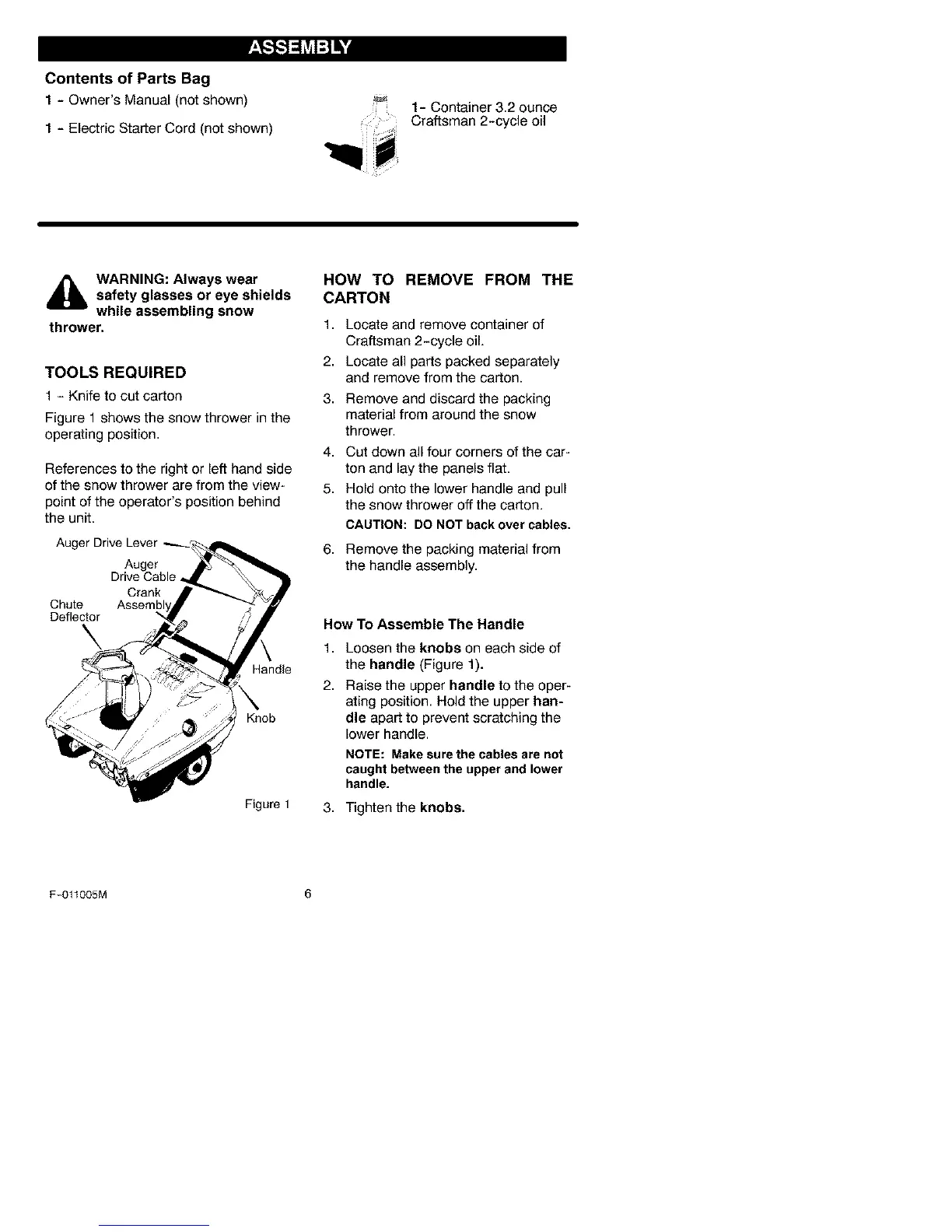

Contents of Parts Bag
1 - Owner's Manual (not shown)
1 - Electric Starter Cord (not shown)
1- Container 3.2 ounce
d_lb WARNING: Always wear
safety glasses or eye shields
while assembling snow
thrower.
TOOLS REQUIRED
1 - Knife to cut carton
Figure 1 shows the snow thrower in the
operating position.
References to the right or left hand side
of the snow thrower are from the view-
point of the operator's position behind
the unit.
Auger Drive Lever ._.
Auger
Drive Cable
Crank
Chute
Deflector
\
Handle
Knob
Figure 1
HOW TO REMOVE FROM THE
CARTON
1. Locate and remove container of
Craftsman 2-cycle oil.
2. Locate all parts packed separately
and remove from the carton.
3. Remove and discard the packing
material from around the snow
thrower.
4. Cut down all four corners of the car-
ton and lay the panels flat.
5. Hold onto the lower handle and pull
the snow thrower off the carton.
CAUTION: DO NOT back over cables.
6. Remove the packing material from
the handle assembly.
How To Assemble The Handle
1,
2.
Loosen the knobs on each side of
the handle (Figure 1).
Raise the upper handle to the oper-
ating position. Hold the upper han-
dle apart to prevent scratching the
lower handle.
NOTE: Make sure the cables are not
caught between the upper and lower
handle.
3. Tighten the knobs.
F-011005M 6
