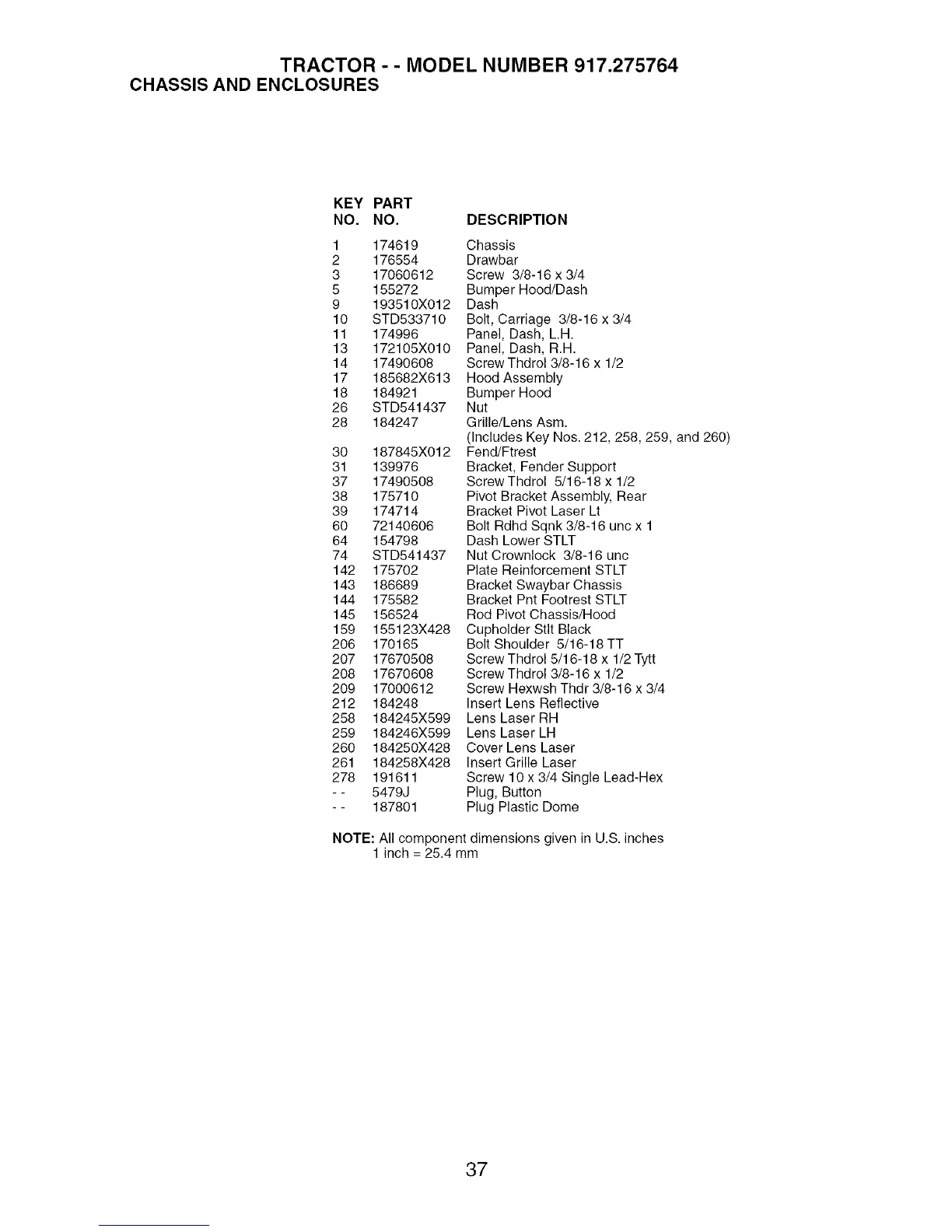

TRACTOR - - MODEL NUMBER 917.275764
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 174619 Chassis
2 176554 Drawbar
3 17060612 Screw 3/8-16 x 3/4
5 155272 Bumper Hood/Dash
9 193510X012 Dash
10 STD533710 Bolt, Carriage 3/8-16 x 3/4
11 174996 Panel, Dash, L.H.
13 172105X010 Panel, Dash, R.H.
14 17490608 Screw Thdrol 3/8-16 x 1/2
17 185682X613 Hood Assembly
18 184921 Bumper Hood
26 STD541437 Nut
28 184247 Grille/Lens Asm.
(Includes Key Nos. 212, 258, 259, and 260)
30 187845X012 Fend/Ftrest
31 139976 Bracket, Fender Support
37 17490508 ScrewThdrol 5/16-18 x 1/2
38 175710 Pivot Bracket Assembly, Rear
39 174714 Bracket Pivot Laser Lt
60 72140606 Bolt Rdhd Sqnk 3/8-16 unc x 1
64 154798 Dash Lower STLT
74 STD541437 Nut Crownlock 3/8-16 unc
142 175702 Plate Reinforcement STLT
143 186689 Bracket Swaybar Chassis
144 175582 Bracket Pnt Footrest STLT
145 156524 Rod Pivot Chassis/Hood
159 155123X428 Cupholder Stlt Black
206 170165 Bolt Shoulder 5/16-18TT
207 17670508 ScrewThdrol 5/16-18 x 1/2Tytt
208 17670608 ScrewThdrol 3/8-16 x 1/2
209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4
212 184248 Insert Lens Reflective
258 184245X599 Lens Laser RH
259 184246X599 Lens Laser LH
260 184250X428 Cover Lens Laser
261 184258X428 Insert Grille Laser
278 191611 Screw 10 x 3/4 Single Lead-Hex
-- 5479J Plug, Button
- - 187801 Plug Plastic Dome
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
