TRACTOR - - MODEL NUMBER 917.275764

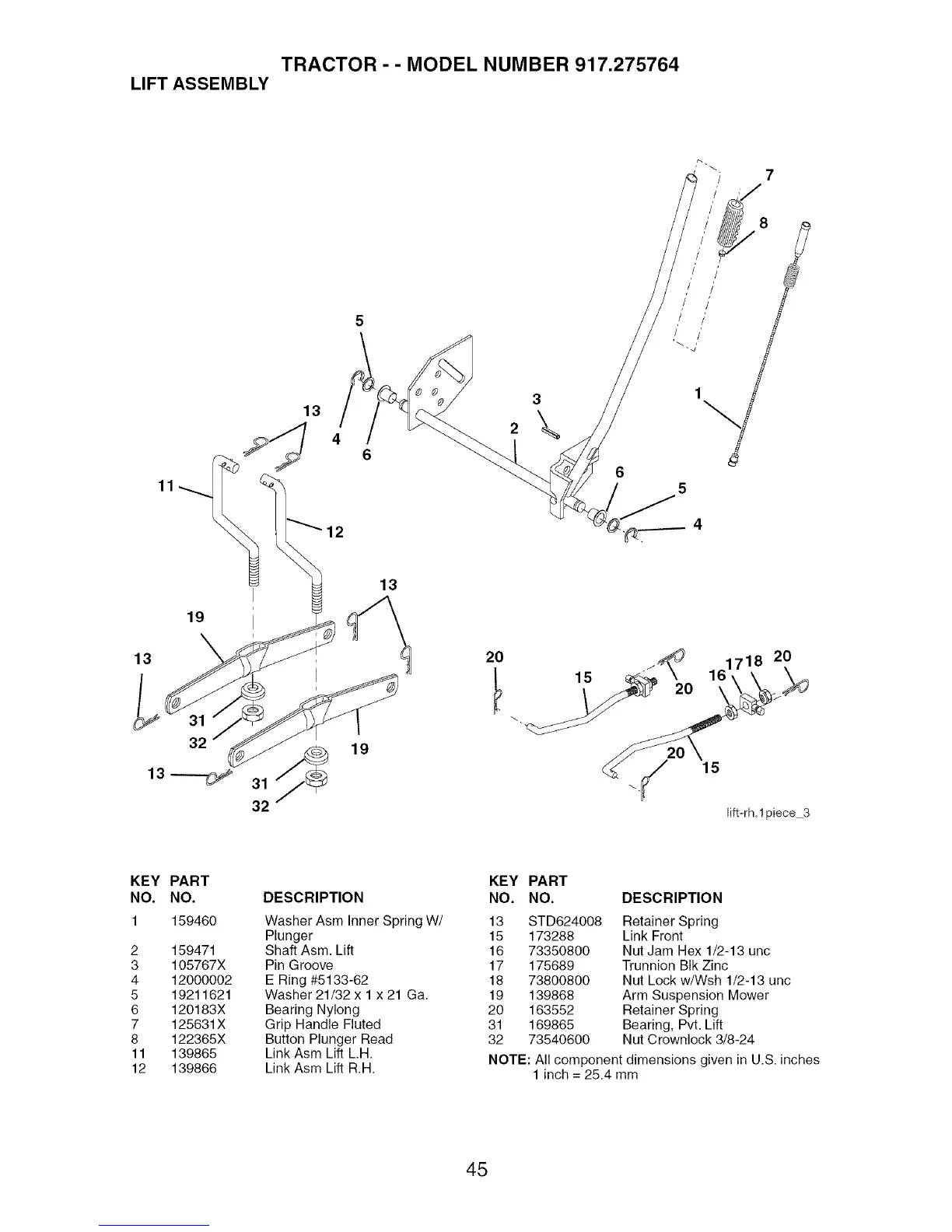

LIFT ASSEMBLY
7
13
6
11 5
19
13
13 20
32 _ 19 ¢
13 _ 31 -.
32
1718 20
16
15
Fift-rh.1piece 3
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 159460 Washer Asm Inner Spring W/ 13 STD624008
Plunger 15 173288
2 159471 Shaft Asm. Lift 16 73350800
3 105767X Pin Groove 17 175689
4 12000002 E Ring #5133-62 18 73800800
5 19211621 Washer 21/32 x 1 x21 Ga. 19 139868
6 120183X Bearing Nylong 20 163552
7 125631X Grip Handle Fluted 31 169865
8 122365X Button Plunger Read 32 73540600
11 139865 Link Asm Lift L.H.
12 139866 Link Asm Lift R.H.
DESCRIPTION
Retainer Spring
Link Front
Nut Jam Hex 1/2-13 unc
Trunnion BIk Zinc
Nut Lock w/Wsh 1/2-13 unc
Arm Suspension Mower
Retainer Spring
Bearing, Pvt. Lift
Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
