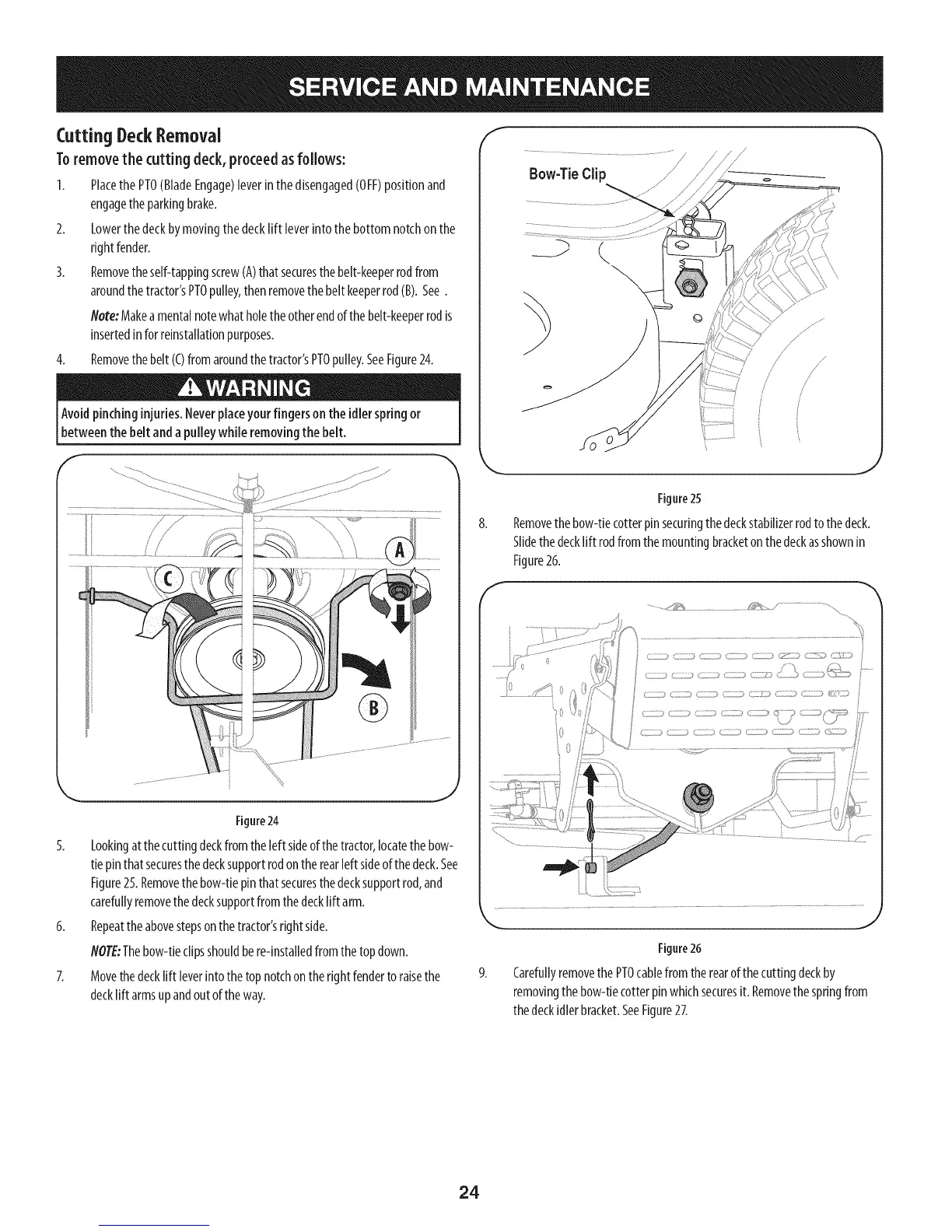

CuttingDeckRemoval
Toremove the cutting deck, proceed as follows:
1. Placethe PTO(BladeEngage)leverinthedisengaged(OFF)positionand
engagethe parkingbrake.
2. Lowerthedeckbymovingthedecklift leverintothe bottomnotchonthe
rightfender.
3. Removetheself-tappingscrew(A)thatsecuresthebelt-keeperrodfrom
aroundthetractor'sPTOpulley,thenremovethebeltkeeperrod(B).See.
Note:Makeamentalnotewhatholetheotherendofthebelt-keeperrodis
insertedinfor reinstallationpurposes.
4. Removethebelt(C)fromaroundthetractor'sPTOpulley.SeeFigure24.
Avoidpinchinginjuries.Neverplaceyour fingerson the idlerspringor
betweenthe belt anda pulleywhile removingthe belt.
Figure24
5. Lookingatthecuttingdeckfromtheleftsideofthetractor,locatethebow-
tie pinthatsecuresthedecksupportrodontherearleftsideofthedeck.See
Figure25.Removethebow-tiepinthatsecuresthedecksupportrod,and
carefullyremovethedecksupportfromthedecklift arm.
6. Repeattheabovestepsonthetractor'srightside.
NOTE:Thebow-tieclipsshouldbere-installedfromthetopdown.
7. Movethedecklift leverintothetopnotchontherightfenderto raisethe
decklift armsupandoutoftheway.
f
///
f
\
J
Figure25
Removethebow-tiecotterpinsecuringthedeckstabilizerrodto thedeck.
Slidethedecklift rodfromthemountingbracketonthedeckasshownin
Figure26.
..................._:,@_.................................._,: _ / .......................................
....../
i ..................4_1 0
J
Figure26
9. Carefullyremovethe PTOcablefromtherearofthecuttingdeckby
removingthe bow-tiecotterpinwhichsecuresit. Removethespringfrom
thedeckidlerbracket.SeeFigure27.
24
