Craftsman Z7400 User Manual

ThisoperatormanualdescribestheCraftsmanZeroTurnRider.
TheriderisfittedwithaKohlerfour-strokeoverheadvalve
engine.
Transmissionfromtheengineismadeviaabelt-driven
hydraulicpumps.Usingtheleftandrightsteeringcontrols,the
flowisregulatedandtherebythedirectionandspeed.

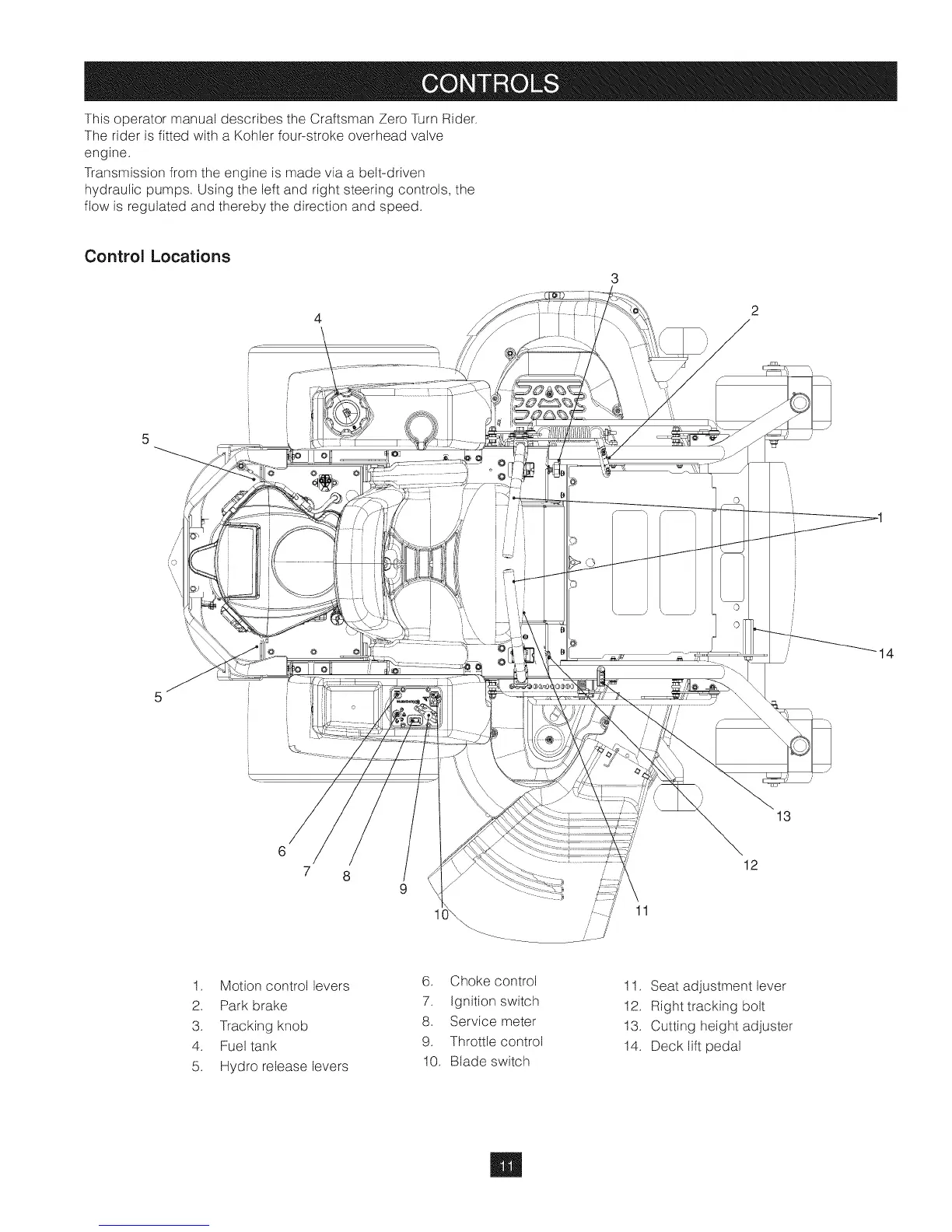

Control Locations
I
4
I
,/
//
!
14
7 8
11
12
13
1. Motion control levers
2. Park brake
3. Tracking knob
4. Fuel tank
5. Hydro release levers
6. Choke control
7. Ignition switch
8. Service meter
9. Throttle control
10. Blade switch
11 Seat adjustment lever
12. Right tracking bolt
13. Cutting height adjuster
14. Deck lift pedal
