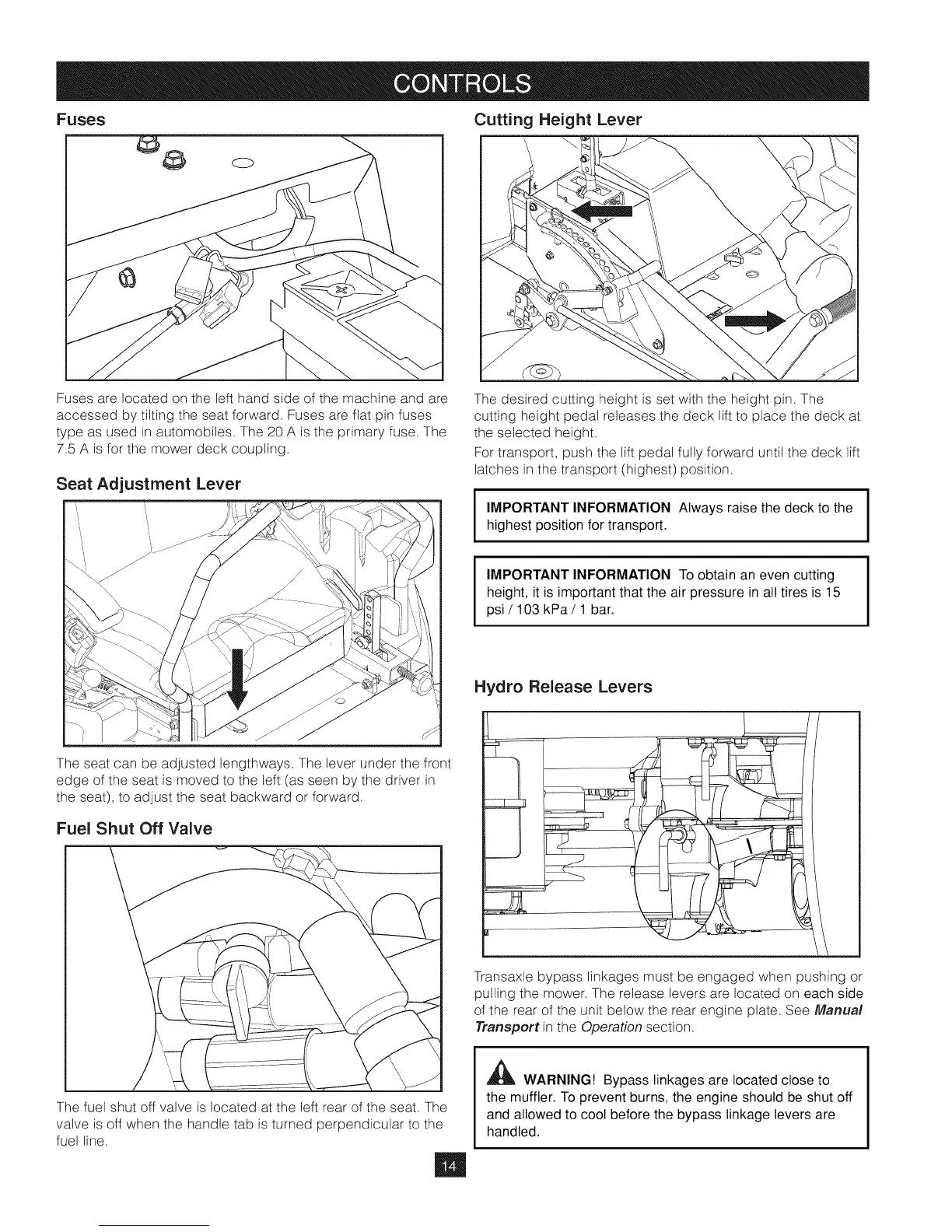

Fuses Cutting Height Lever
Fuses are located on the left hand side of the machine and are
accessed by tilting the seat forward, Fuses are flat pin fuses
type as used in automobiles, The 20 A is the primary fuse, The
7,5 A is for the mower deck coupling,
Seat Adjustment Lever
The desired cutting height is set with the height pin, The
cutting height pedal releases the deck lift to place the deck at
the selected height,
For transport, push the lift pedal fully forward until the deck lift
latches in the transport (highest) position,
IMPORTANT INFORMATION Always raise the deck to the
highest position for transport.
IMPORTANT INFORMATION To obtain an even cutting
height, it is important that the air pressure in all tires is 15
psi / 103 kPa / 1 bar.
Hydro Release Levers
The seat can be adjusted lengthways, The lever under the front
edge of the seat is moved to the left (as seen by the driver in
the seat), to adjust the seat backward or forward,
Fuel Shut Off Valve
The fuel shut off valve is located at the left rear of the seat, The
valve is off when the handle tab is turned perpendicular to the
fuel line,
Transaxle bypass linkages must be engaged when pushing or
pulling the mower, The release levers are located on each side
of the rear of the unit below the rear engine plate, See Manual
Transport in the Operation section,
_iL WARNING! Bypass linkages are located close to
the muffler. To prevent burns, the engine should be shut off
and allowed to cool before the bypass linkage levers are
handled.
