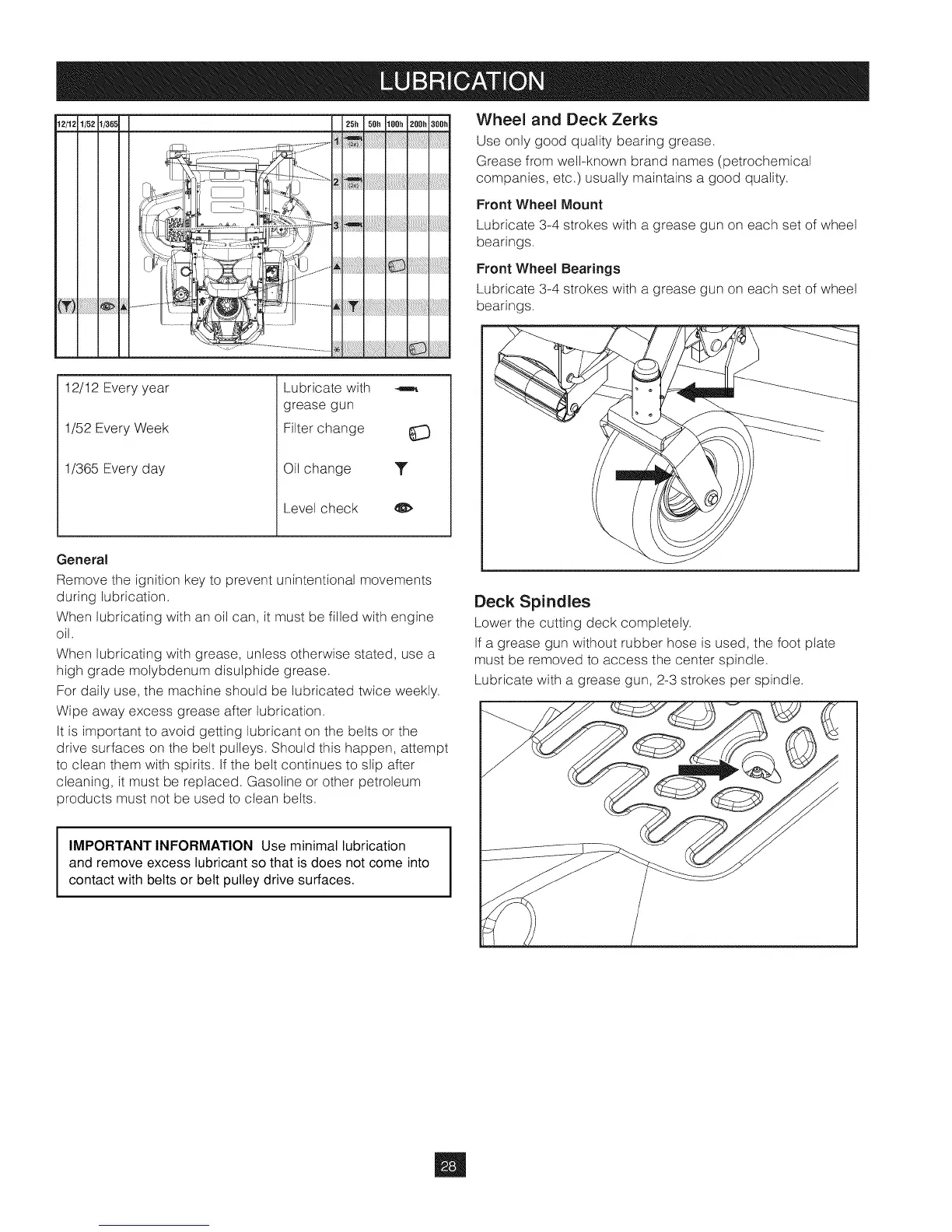

il/52 1/365 !
25h 50h H}0h 200h 300h
li!;!i: iliiii i ii!ii!ii!ii!ii!ii!ii!i!!i!ii!ii!i !
I i i;;i i!il;;!i!i!i!i!i!i!i!i!ii!ii!iil;ii!i!ii
_!i_!_i!i_!_!_;_!i!_;i_ii_ii_ii_ii_ii_ii_i!_i!i_!;!_;_!!_!!_!!i!i_i!_;!_ii_iiiiiiii_i_i__i!i_i_i!i!i_i_i_iiiiiiiiiiiiiii_i_ii!i_i_!_i_i_iii_ii_ii_i!i_i_i;_i_i_ii_ii_ii_ii_;_
12/12 Every year
1/52 Every Week
1/365 Every day
Lubricate with
grease gun
Filter change
Oil change '_
Level check
General
Remove the ignition key to prevent unintentional movements
during lubrication,
When lubricating with an oil can, it must be filled with engine
oil,
When lubricating with grease, unless otherwise stated, use a
high grade molybdenum disulphide grease,
For daily use, the machine should be lubricated twice weekly,
Wipe away excess grease after lubrication,
It is important to avoid getting lubricant on the belts or the
drive surfaces on the belt pulleys, Should this happen, attempt
to clean them with spirits_ If the belt continues to slip after
cleaning, it must be replaced, Gasoline or other petroleum
products must not be used to clean belts,
Wheel and Deck Zerks
Use only good quality bearing grease,
Grease from well-known brand names (petrochemical
companies, etc,) usually maintains a good quality,
Front Wheel Mount
Lubricate 3-4 strokes with a grease gun on each set of wheel
bearings,
Front Wheel Bearings
Lubricate 3-4 strokes with a grease gun on each set of wheel
bearings,
Deck Spindles
Lower the cutting deck completely,
If a grease gun without rubber hose is used, the foot plate
must be removed to access the center spindle,
Lubricate with a grease gun, 2-3 strokes per spindle,
IMPORTANT INFORMATION Use minimal lubrication
and remove excess lubricant so that is does not come into
contact with belts or belt pulley drive surfaces.
