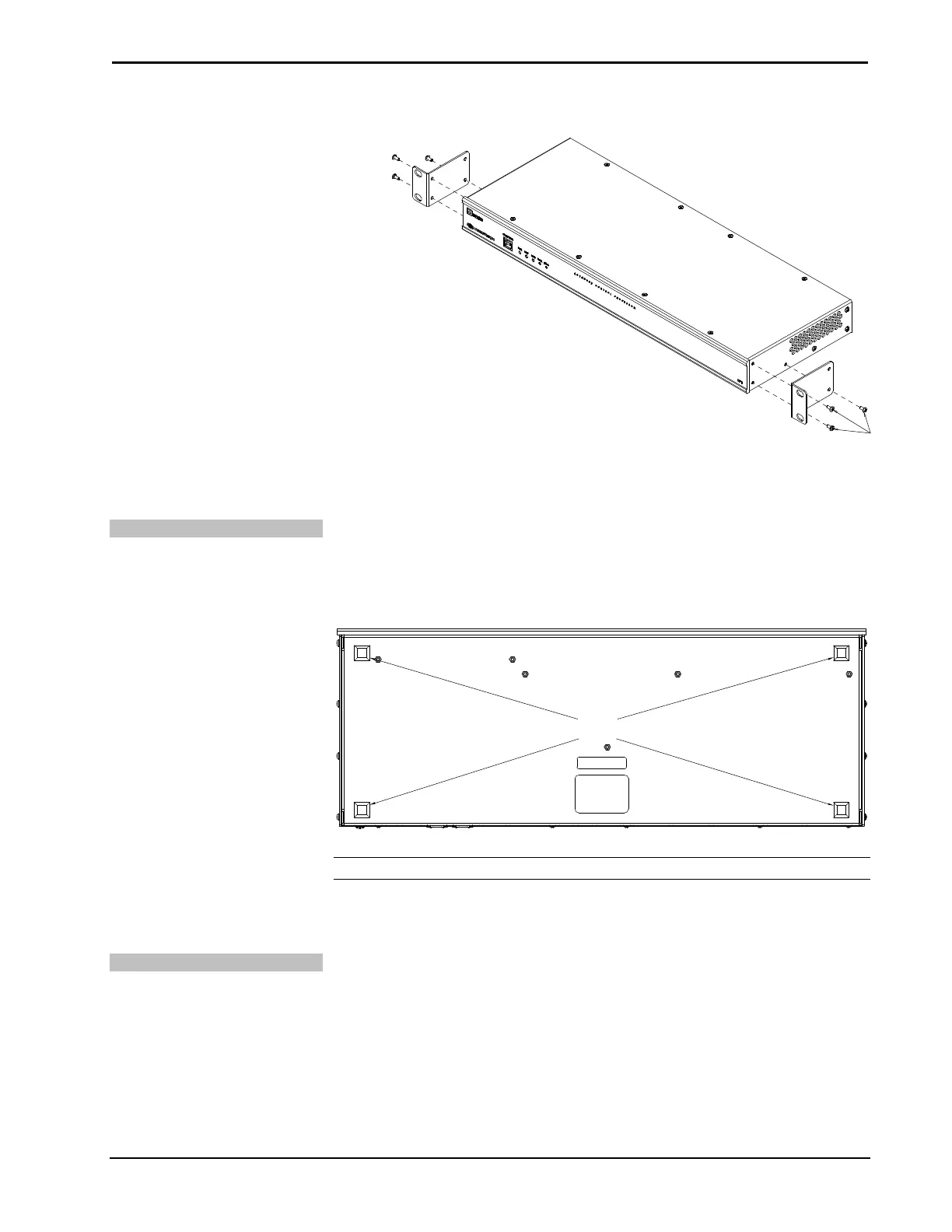

Ear Attachment for Rack Mounting
Use Cover Screws
4. Repeat procedure (steps 1 through 3) to attach the remaining ear to the
opposite side.
Stacking
Four “feet” are provided with the CP3 so that if the unit is not rack mounted, the
rubber feet can provide stability when the unit is placed on a flat surface or stacked.
These feet should be attached prior to the hookup procedure. Refer to the following
illustration for placement of the feet.
Foot Placement for the CP3
Mounting Feet (2002389), QTY. 4
NOTE: No more than two CP3 units should be stacked.
Hardware Hookup
Connect the Device
Make the necessary connections as called out in the illustration that follows this
paragraph. Refer to “Network Wiring” on page 12
before attaching the 4-position
terminal block connector. Apply power after all connections have been made.
When making connections to the CP3, note the following:
• Use Crestron power supplies for Crestron equipment.
• The included cable(s) cannot be extended.

Crestron CP3 Specifications

General

Motherboard chipset	-
Processor frequency	- GHz
Storage media	Flash
Card reader integrated	Yes
Total storage capacity	4 GB
Compatible memory cards	MMC
Internal memory	0.5 GB
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Serial interface type	RS-232/422/485
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	5 - 45 °C
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	167 mm
Width	439 mm
Height	44 mm
Weight	1420 g
