XLS Series Power Amplifiers
page 9
Operation Manual
2 Setup
2.6.2 Stereo Mode Using the
Speakon
®
Connector
There are two ways to wire two speakers in ste-
reo to the amplifier’s Speakon
®
connector.
1) Wire the two speakers to the same Speakon
®
connector as shown in Figure 2.8.
or
2) Wire speaker 1 to the amplifier’s Speakon
®
connector, and wire speaker 2 to speaker 1
(Figure 2.9).

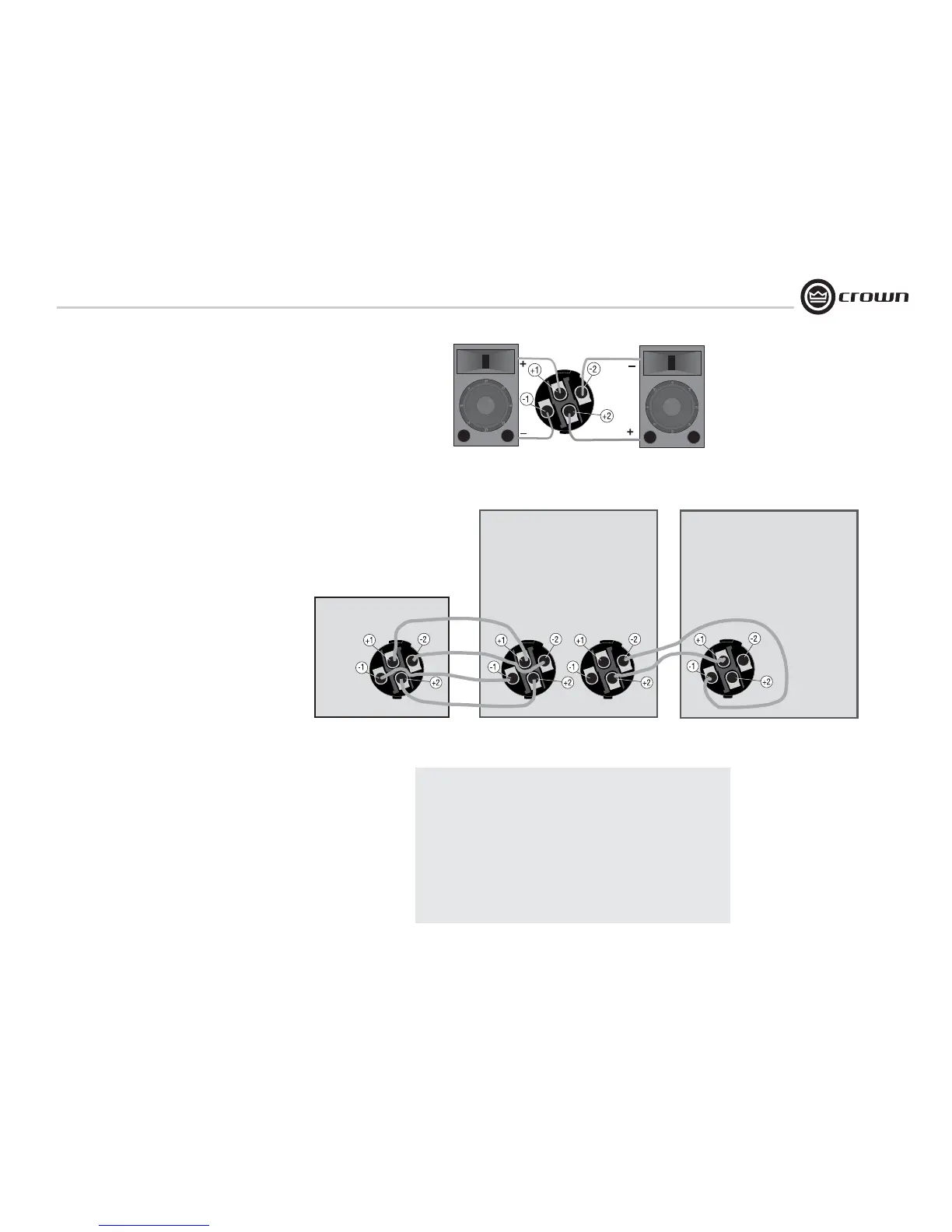

Figure 2.8 Speakon
®
Stereo Wiring Option 1:
Wire Two Speakers to One Speakon
®
Connector
Figure 2.9 Speakon
®
Stereo Wiring Option 2:
Wire Speaker 1 to the Amplifier’s Speakon
®
Connector, and Wire Speaker 2 to Speaker 1
SPEAKER 1
SPEAKER 2
AMPLIFIER
SPEAKON OUT
SPEAKON IN SPEAKON OUT
OR THRU
SPEAKON IN
CABLE 1: AMPLIFIER OUT TO SPEAKER 1 IN
1+ TO 1+
1– TO 1–
2+ TO 2+
2– TO 2–
CABLE 2: SPEAKER 1 OUT TO SPEAKER 2 IN
2+ TO 1+
2– TO 1–
