REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 603-0132 Rod, Quick Attach 1

2 603-0328A Frame 1

3 703-2257 Drawbar 1

777I20296 Graphic, Transmission Release Lever 1

4 703-2577 Bumper 1

5 710-0597 Screw, Hex Cap, 1/4-20 x 1.0 6

6 710-0623 Screw, Hex Wsh Hd Tapp 3/8-16 x .75 2

7 710-1260A Screw, Hex Wsh Hd Tap 5/16-18 x .75 4

8 710-3261 Screw, Hex Cap, 3/8-16 x 7.0 1

9 712-0431 Nut, Hex Flange Lock, 3/8-16 1

10 712-3027 Nut, Hex Flange Lock, 1/4-20 8

11 722-0258 Grommet, Insulator 6

12 732-3002 Spring, Latch 1

13 736-3090 Washer, Flat, .255 x .72 x .60 6

14 738-0255 Bolt, Shoulder 2

15 750-3114A Spacer, Idler, .407 x .720 x 4.38 1

16 750-3169 Spacer, .28 x .40 x .42 Lg 6

17 756-3045 Pulley, Idler 2

18 732-0970 Belt Guide 1

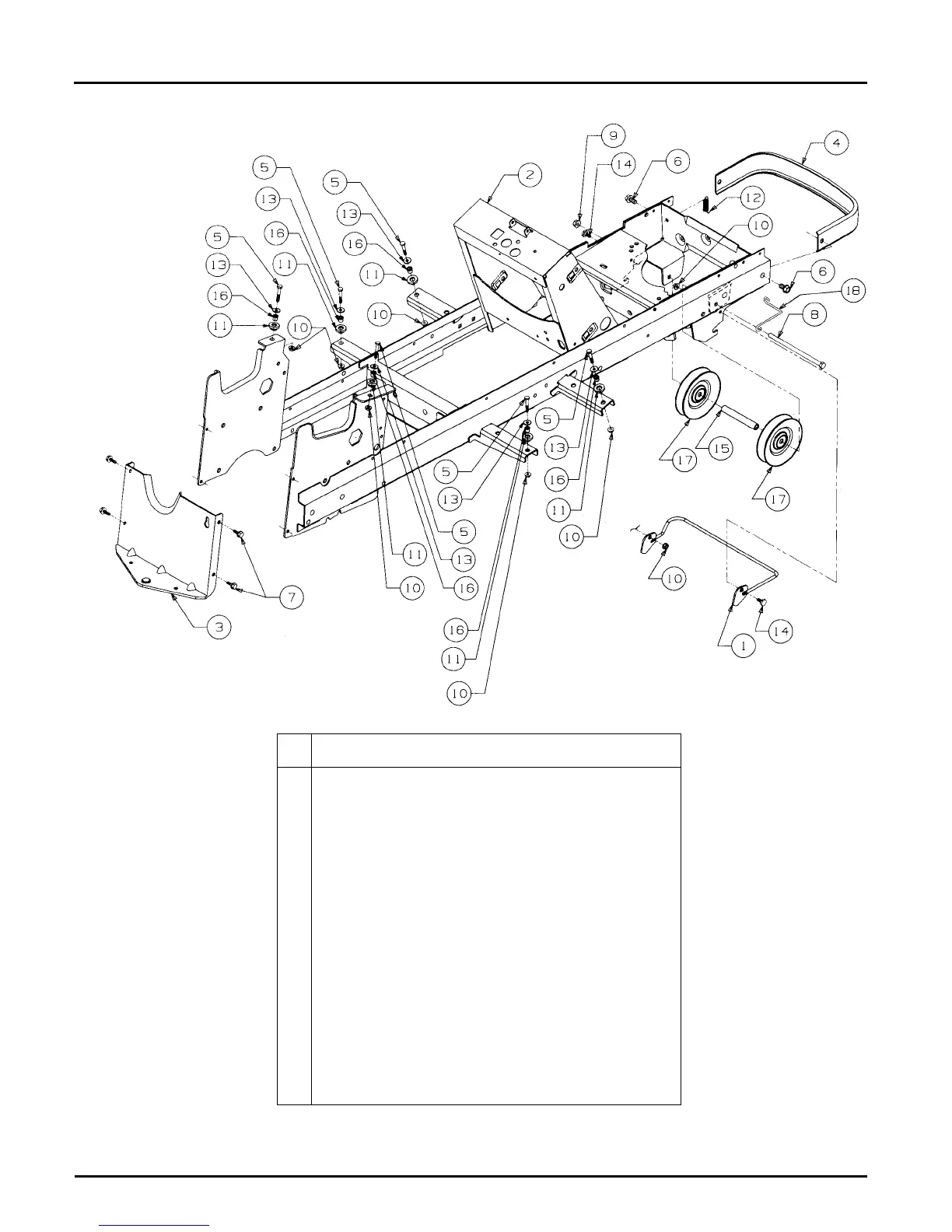

FRAME AND DRAWBAR

Cub Cadet 2146 Parts Manual
