REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 603-0057A Handle Assembly, Lift 1

2 603-0059 Shaft Assembly, Lift 1

3 603-0136 Fork, Lift 1

4 703-2239 Bracket, Lift Index 2

5 703-2558 Indicator, Lift Height 1

6 710-0451 Bolt, Carriage, 5/16-18 x .75 2

7 710-0599 Screw, Hex Wash Tapp, 1/4 x .5 1

8 710-3144 Screw, Hex Cap, 3/8-16 x 2 GR5 1

9 710-3279 Screw, Hex Cap, 3/8-16 x 4.25 GR5 1

10 711-0635 Inser, Spring 1

11 711-0642A Button, Handle 1

12 711-3350 Ferrule, Adjustment 1

13 712-0262 Nut, Hex Center Lock, Jam, 3/8-24 1

14 712-0431 Nut, Hex Flanged Lock, 3/8-16 2

15 712-3004A Nut, Hex Flanged Top Lock, 5/16-18 2

16 715-0114A Pin, Spiral Spring, 1/4 Dia x 1.5 2

17 716-0116 Ring, Snap, 1.25 Dia Shaft 1

18 731-3158 Grip, Lift Handle 1

19 732-3093 Spring, Extension 1

20 732-3097 Spring, Compression 1

21 736-0267 Washer, Flat, .385 x .87 x .06 1

22 738-0145 Bolt, Shoulder 1

23 747-3175 Rod, Index 1

24 748-3051 Bearing, Hex Flange, 1.25 ID 2

25 750-3131 Spacer, 1.28 ID x 1.5 OD x .335 Lg 1

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

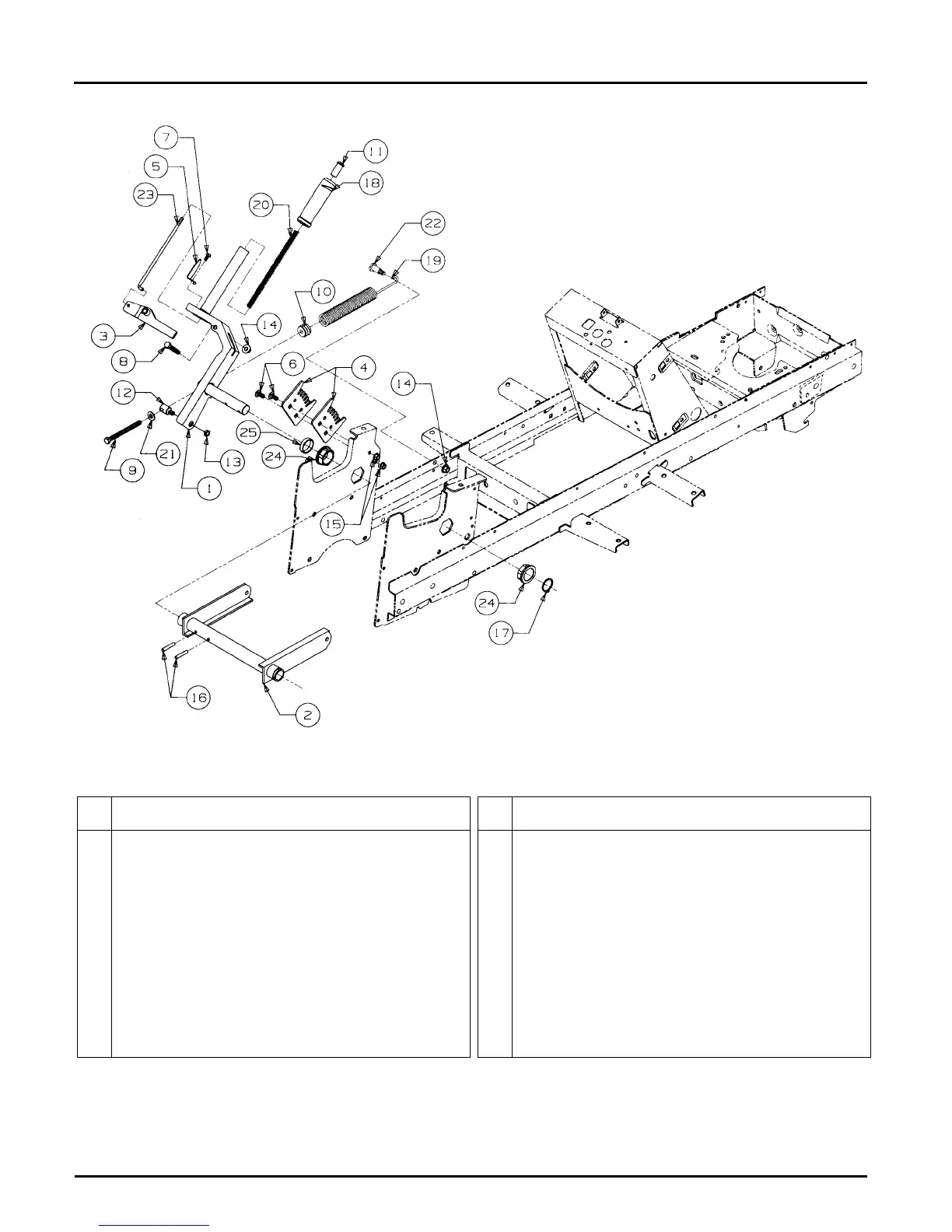

IMPLEMENT LIFT HANDLE

Cub Cadet 2146 Parts Manual
