Cub Cadet LT1042 Parts Manual

11

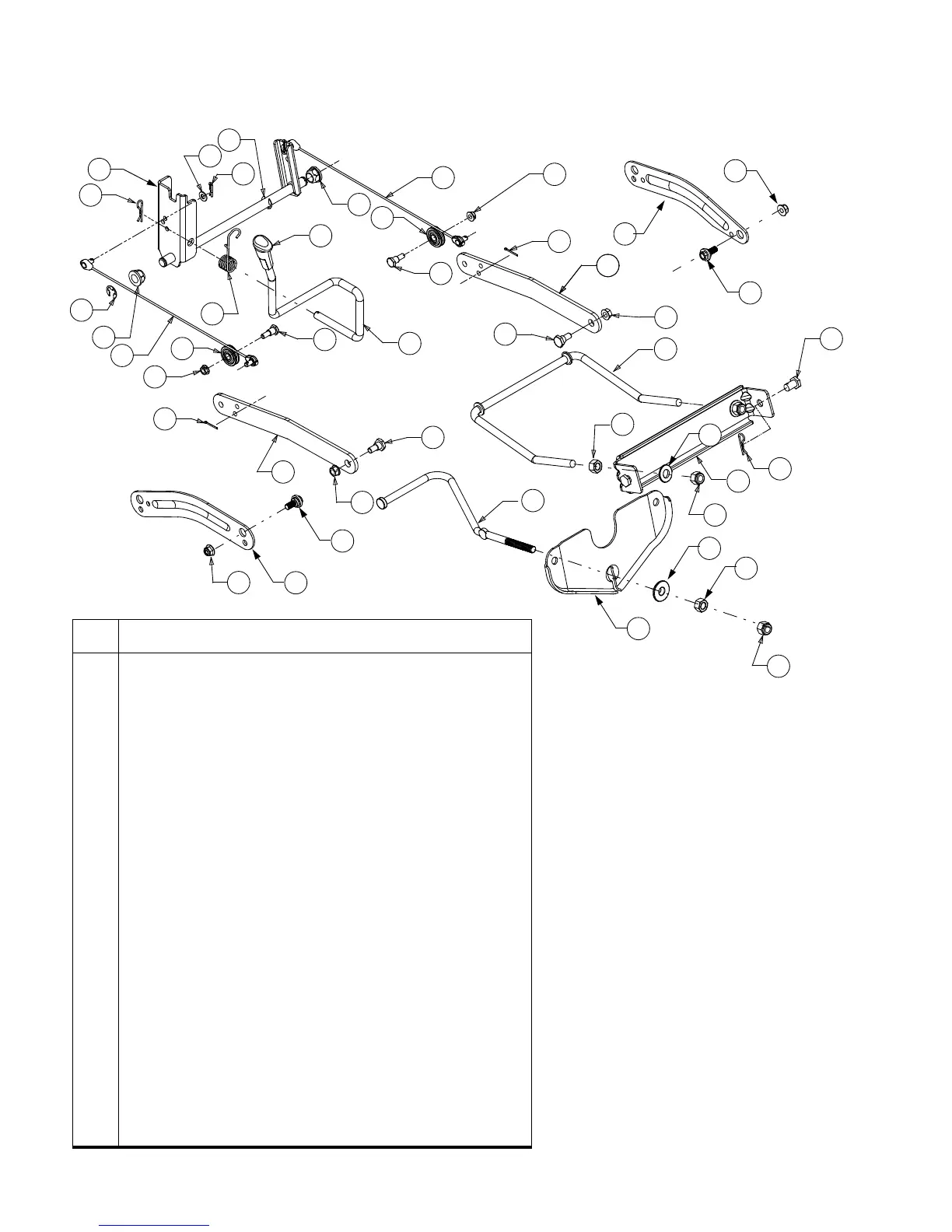

LIFT ASSEMBLY
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 683-04079 Shaft Assembly, Lift 1
2 711-0332 Pin, Clevis, .50 Dia x .78 Lg 2
3 783-0720A Bracket, Deck (46- and 50-inch Decks) 1
4 712-04065 Nut, Nylon Lock, 3/8-16 2
5 712-04063 Nut, Nylon Lock, 5/16-18, Gr5 2
6 712-3083
Nut, Hex Lock, 1/2-13, Gr8, Nylon 2
7 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2
8 714-0111 Pin, Cotter, 3/32, 1.0 2
9 714-04023 Pin, Click, .092 x 1.64 Lg 2
10 716-0106A E-ring, .625 Dia. Shaft 2
11 720-0311 Grip, Handle 1
12 732-0874 Spring, Torsion 1
18 738-0138A Screw, Hex Cap, 5/16-18x.620 Gr2 2
19 738-0143 Shoulder Screw, 3/8-16 2
20 741-0225
Bearing, Hex Flange 2
22 746-0968 Cable, Lift, 16.16 Lg 2
23 747-04155 Handle, Lift 1
24 747-1130B Rod, Deck .5" Dia. (46- and 50-inch Decks) 1
25 756-1154 Pulley, Roller 2
26 783-0678A Arm, Lift (46- and 50-inch Decks) 2
27 783-04568 Hanger Bracket, Deck (42-inch Deck) 1
28 747-04269 Rod, Deck, .448" Dia. (42-inch Deck) 1
29 783-04494 RH Arm, Lift (42-inch Deck) 1
30 783-04711 LH Arm, Lift (42-inch Deck) 1
31 748-04069 Pivot Cup 1
32 712-0206 Nut, Hex, 1/2-13 2
33 736-3084 Washer, Flat, .51 x 1.12 x .06 2
34 738-04130 Shoulder Screw, 3/8-16 2
5
8
4
4
8
5
9
1
7
22
20
25
11
18
26
23
18
14
10
12
25
22
20
10
26
19
24
2
9
6
B
B
A
A
3
27
26
29
30
28
6
31
32
32
33
19
34
4
34
4

Cub Cadet LT1042 Specifications

General

Style	Tractor
Color	Yellow
Cutting Width	-
Cutting Height	-
Cutting Method	Optional Side Discharge
Number of Blades	-
Drive System	Rear Wheel Drive
Case Size: U1R	12V
Noise Level	-
Features	Cruise Control
Accessories	-
Motor / Engine Model	Kohler Courage SV590
Power Output	-
Cylinders	1
Generator	-
Power / Fuel Type	Gasoline
Fuel Tank Volume	13.2 liters (3.5 US gal.; 2.9 Imp. gal)
SAE 5W30 (below 32°F/0°C)	SG or SL
w/o Filter: 44 oz. (1	1.5 L (1.59 US. qt

Weight and Dimensions

Depth	1730 mm
Height	1090 mm
Width	1143 mm
Net Weight	226 kg
