Cub Cadet LT1042 Parts Manual

15

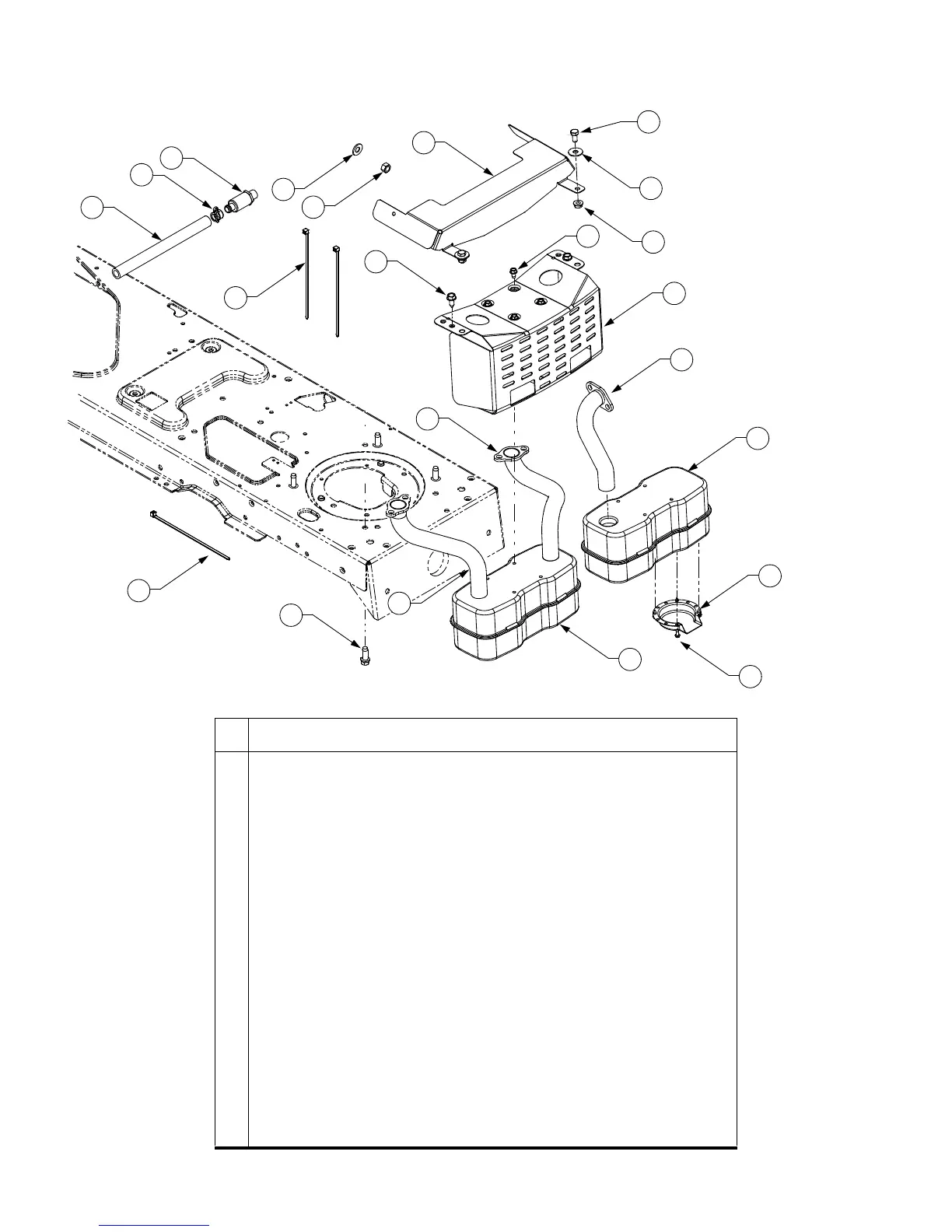

ENGINE ACCESSORIES
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-0227 Screw, #8-18, 0.500 4
2 710-0599 Screw, Hex, 1/4-20, 0.500 4
3 710-0726 Screw, Hex, 5/16-12 x .75 4
4 710-0654A Screw, Hex, 3/8-16 x 1.00 (LT1042 & LT1045) 4
710-1315 Screw, Hex, 3/8-16 x 1.25 (LT1046 & LT1050) 4
5 710-3025 Screw, Hex, 5/16-18 x .625 (LT1046 & LT1050) 2
6 725-0157 Cable, Tie, 3/16 x .05 x 7.4 2
7 712-3004A Nut, Flange Lock, 5/16-18 (LT1046 & LT1050) 2
8 712-3017 Hex Nut, 3/8-16 (LT1046 & LT1050) 1
9 736-0300 Lock Washer,.406 x.875 x.059 (LT1046 & LT1050) 1
10 736-3078 Washer, Flat, .349 x 1.00 x .063 (LT1046 & LT1050) 2
11 751-0564A Deflector, Muffler 1
12 751-0617A Muffler, Single Inlet (LT1042 & LT1045) 1
13 751-10047 Pipe, Exhaust (LT1042 & LT1045) 1
14 751-3140 Drain, Oil 1
15 751-3141 Extension Hose, Oil Drain 1
16 751-3142 Cap, Oil Drain 1
17 783-0615D Bracket, Muffler 1
18 751-0644B Pipe, Exhaust, LH (LT1046 & LT1050) 1
19 751-0645A Pipe, Exhaust, RH (LT1046 & LT1050) 1
20 751-0805 Muffler, Dual Inlet (LT1046 & LT1050) 1
21 783-0881 Shield, Heat (LT1046 & LT1050) 1
4
1
20
13
12
6
17
4
2
6
21
10
5
6
15
16
17
11
9
8
18
19

Cub Cadet LT1042 Specifications

General

Style	Tractor
Color	Yellow
Cutting Width	-
Cutting Height	-
Cutting Method	Optional Side Discharge
Number of Blades	-
Drive System	Rear Wheel Drive
Case Size: U1R	12V
Noise Level	-
Features	Cruise Control
Accessories	-
Motor / Engine Model	Kohler Courage SV590
Power Output	-
Cylinders	1
Generator	-
Power / Fuel Type	Gasoline
Fuel Tank Volume	13.2 liters (3.5 US gal.; 2.9 Imp. gal)
SAE 5W30 (below 32°F/0°C)	SG or SL
w/o Filter: 44 oz. (1	1.5 L (1.59 US. qt

Weight and Dimensions

Depth	1730 mm
Height	1090 mm
Width	1143 mm
Net Weight	226 kg
