Cub Cadet LT1042 Parts Manual

18

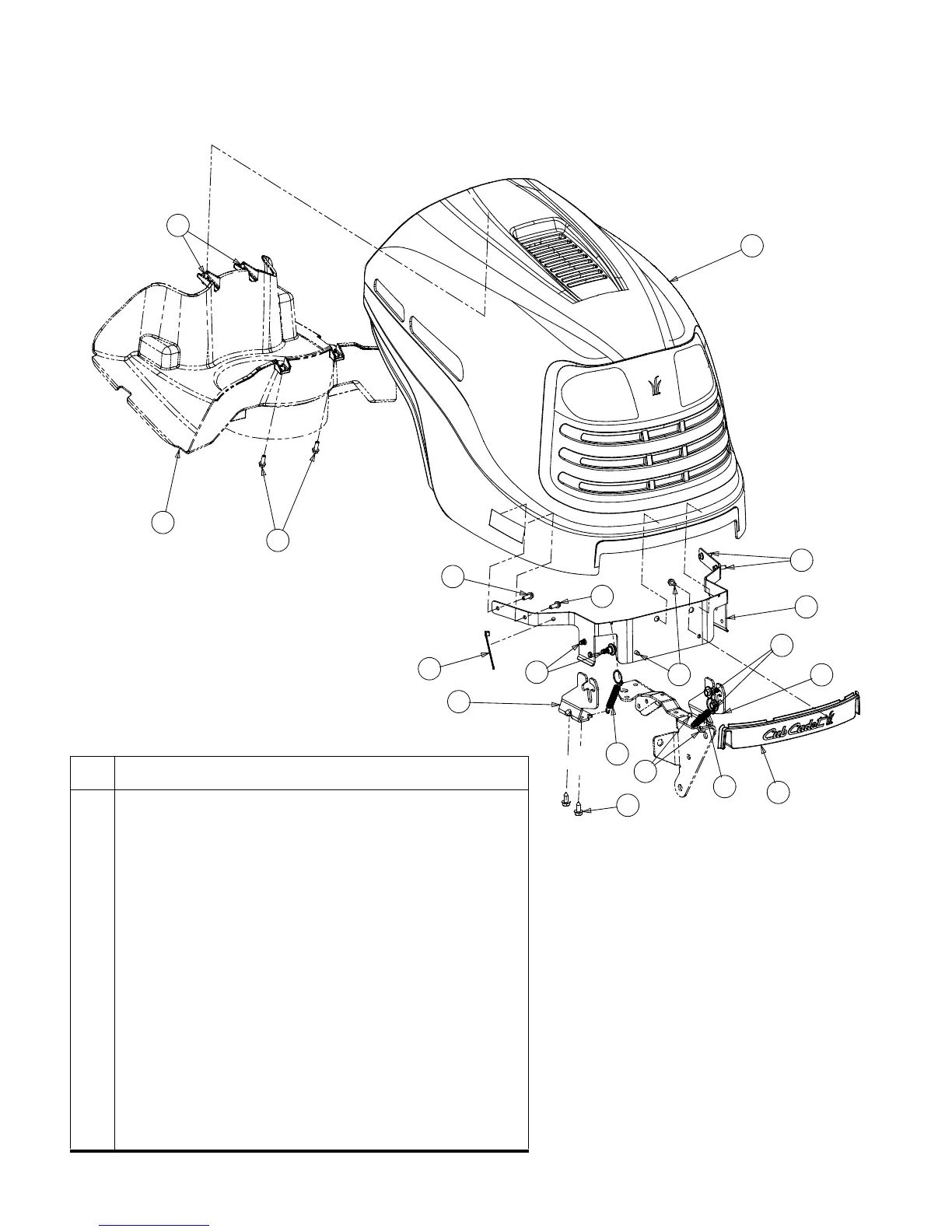

HOOD & GRILLE
11
1
4
4
4
4
5
10
8
2
8
9
4
6
7
3
3
7
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 631-04091A Hood Asssembly, Includes: 1
629-04083 Headlight Harness 1
725-0963 Minirature Lamp, 12 V 2
725-1649 Lamp Socket 2
731-04567A Hood 1
731-04577 Headlight Lens 1
777X41562 Headlight Lens Reflector, RH 1
777X41563 Headlight Lens Reflector, RH 1
2 710-0599 Screw, Hex Wash, Hd,Tapp 1/4-20 x .5 2
3 710-0726 Self-tapping Screw, 5/16-18 x.625 4
4 710-0895 Screw, 1/4-15 x .75 8
5 725-0157 Cable Tie 1
6 731-04687A Cover, Front Hood 1
7 732-04189B Spring, .46 x 4.12 2
8 738-04091 Shoulder Screw, .43 x .29 x 5/16-18 4
9 783-04428 Pivot Bracket 1
10 783-04464B Pivot Bracket, Hood, RH 1
11 783-04465A Pivot Bracket, Hood, LH 1
12 731-04569 Hood Plenum (LT1042 & LT1045) 1
731-04579 Hood Plenum (LT1046 & LT1050) 1
12

Cub Cadet LT1042 Specifications

General

Style	Tractor
Color	Yellow
Cutting Width	-
Cutting Height	-
Cutting Method	Optional Side Discharge
Number of Blades	-
Drive System	Rear Wheel Drive
Case Size: U1R	12V
Noise Level	-
Features	Cruise Control
Accessories	-
Motor / Engine Model	Kohler Courage SV590
Power Output	-
Cylinders	1
Generator	-
Power / Fuel Type	Gasoline
Fuel Tank Volume	13.2 liters (3.5 US gal.; 2.9 Imp. gal)
SAE 5W30 (below 32°F/0°C)	SG or SL
w/o Filter: 44 oz. (1	1.5 L (1.59 US. qt

Weight and Dimensions

Depth	1730 mm
Height	1090 mm
Width	1143 mm
Net Weight	226 kg
