17se c t i O n 5 — ba g g e r as s e M b l y & in s t a l l a t i O n : tw i n up p e r ba g g e r cO M p O n e n t s
Assemble The Remaining Bagger Components
Now that the mounting brackets are assembled and are in place
on the tractor, follow these steps to assemble the remaining
bagger components.

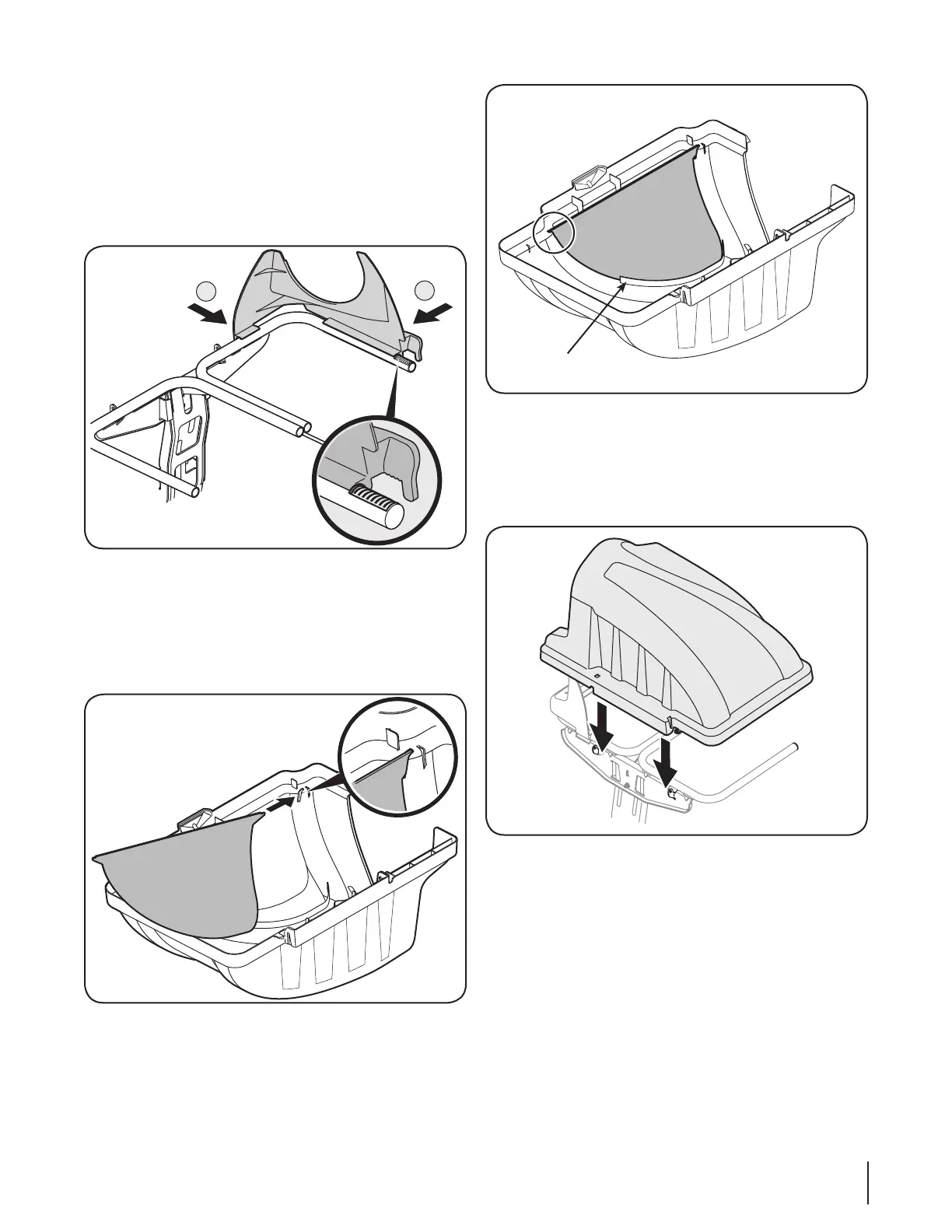

Snap the plastic upper chute support in place by first 1.
clipping the side portion onto the bag support rail with the
edge of the snap feature aligned with the red line (1), as
shown in the inset of Fig. 5-5.
Snap the front portion of the upper chute support to the 2.
bag support rail as seen in 2 of Fig. 5-5.
Install the bagger screen into the bagger cover by first 3.
inserting the end closest to the side with the cutout into
the mounting hole, as in Fig. 5-6. Make sure to feed the
screen under the lip, as in Fig. 5-7.
Clip in the other side by pushing the screen into the 4.
provided cutout.
Install the grass catcher cover onto the bag support 5.
assembly, as seen in Fig. 5-8. The grass catcher cover
goes inside of the two mounting tabs on the bag support
assembly.
Figure 5-6
Figure 5-8
Make sure screen sits
under the cover’s lip
Figure 5-8
Figure 5-5
