Controller Features
The Culligan MVP control’s primary function is to initiate and control the regen-
eration process via methods that are most convenient and cost effective for the
customer while offering many operation features and benefits.
Features
Power Source
Electrical power required for the control is 24-Volt 50/60 Hz AC current. A plug-in
transformer (120v/24v) is provided
Battery Backup
Battery backup is available as an optional field add-on. The battery backup will
maintain the time of day for a minimum of 4 weeks using a 3.6V 1/2AA-lithium
type battery as supplied by Culligan.
EEPROM
Saves programmed and statistical functions.
AC Outputs
Four AC outputs are found within the controller for the following purposes:
• Motor control
• Blocking Valve (blocks the flow of water to service)
• Two programmable outputs for various optional accessories

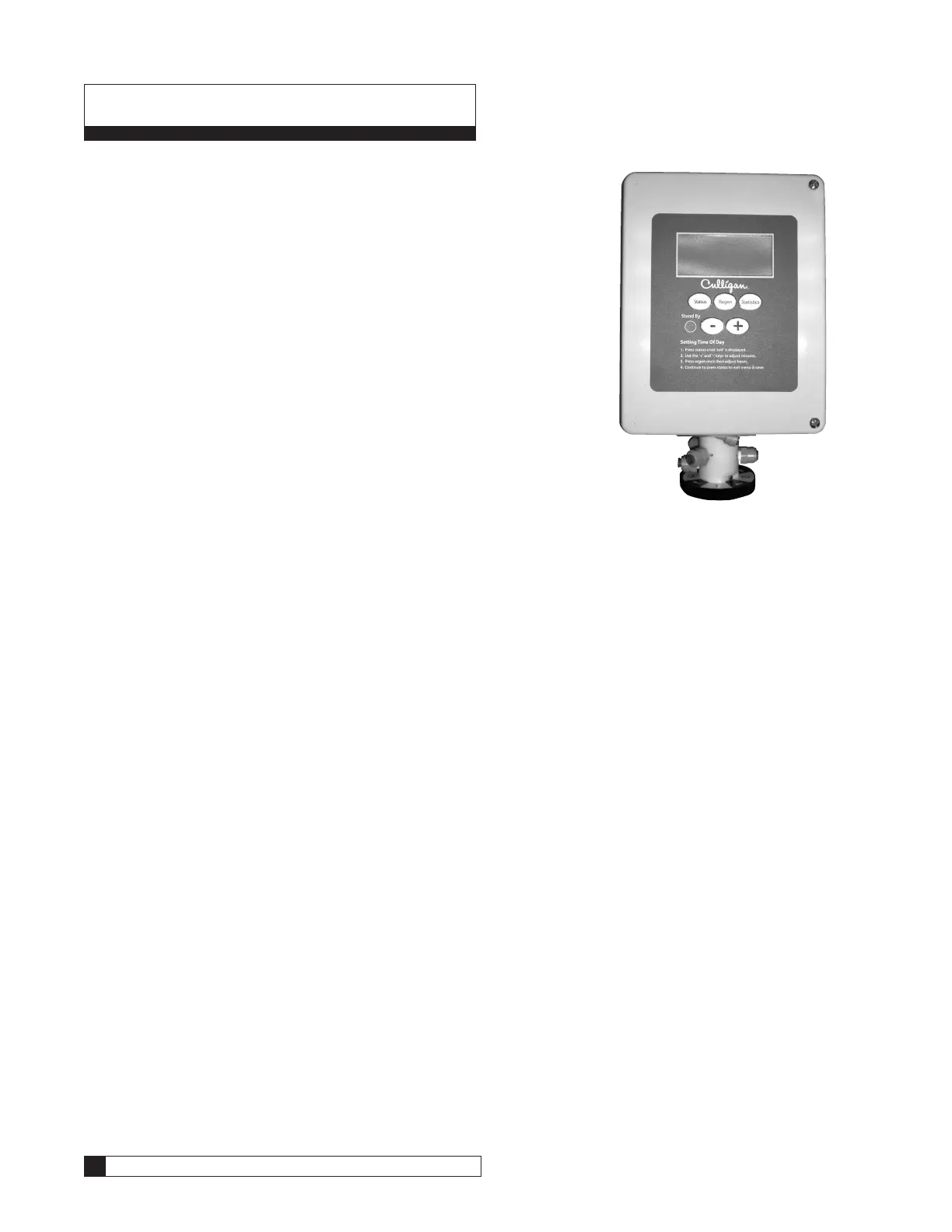

Figure 6.
One-Touch Program Update
Multiple controls can have their programs updated simply through the touch of a button on the primary or “Master” control
eliminating the need to the programming process for each subsequent control in a system.
Lock/Unlock
Allows the control to be easily locked out from inadvertent program changes or abuse. This feature can be disabled if
desired.
Time of Day
Displays current time in either 12 hour (AM/PM) or 24 hour format.
Current Day of Week Regeneration
This feature is available for single, time clock operated systems.
Regeneration Interval
Provides an ability to initiate a time clock operated system on a number of days (range from 1 to 99 days), hours (range 1
to 24 hours), or a specific day of the week (single, time clock systems).
Progressive Flow Trip Point
Use of this patented feature allows multiple tank systems operating with water meters to be brought on-line or off-line as
facility flow demands increase or decrease.
Regeneration Start Delay
Allows a user determined number of hours (up to 9) to be input into the control for the purpose of increasing the amount
of time between multiple regeneration initiations.
