D-Link DAP-1325 User Manual

DAP-1325 N300 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
If you connect to a hidden network, from the Connecting to network list select the Connect
to hidden network value. Enter the network name to the Network name (SSID) field. Then
select a needed value from the Network authentication list and then, if needed, enter the
password in the relevant field.

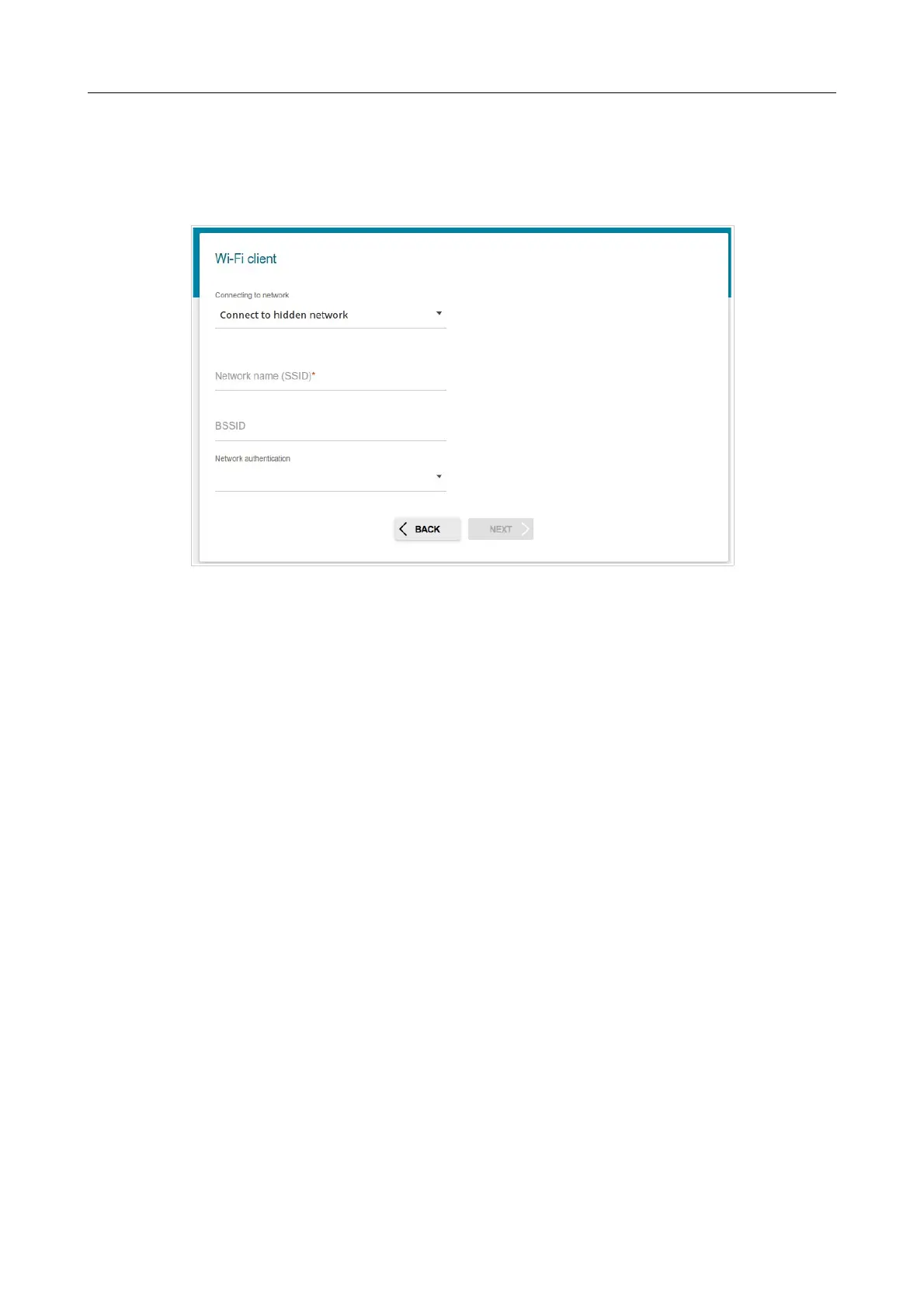

Figure 31. The page for configuring connection to a hidden network.
3. Click the NEXT button to continue or click the BACK button to return to the previous page.
Page 37 of 92

D-Link DAP-1325 Specifications

General

Type	Network repeater
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Antenna type	External
Antennas quantity	2
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA2, WPS-PBC
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN (RJ-45) ports	1
Certification	FCC, IC, CE, RCM, IDA, CB, LVD, UL, WPS
Product color	Grey, White
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	RoHS
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	97 g
