D-Link DAP-1325 User Manual

DAP-1325 N300 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
Telnet
On the System / Telnet page, you can enable or disable access to the device settings via TELNET
from your LAN. By default, access is enabled.

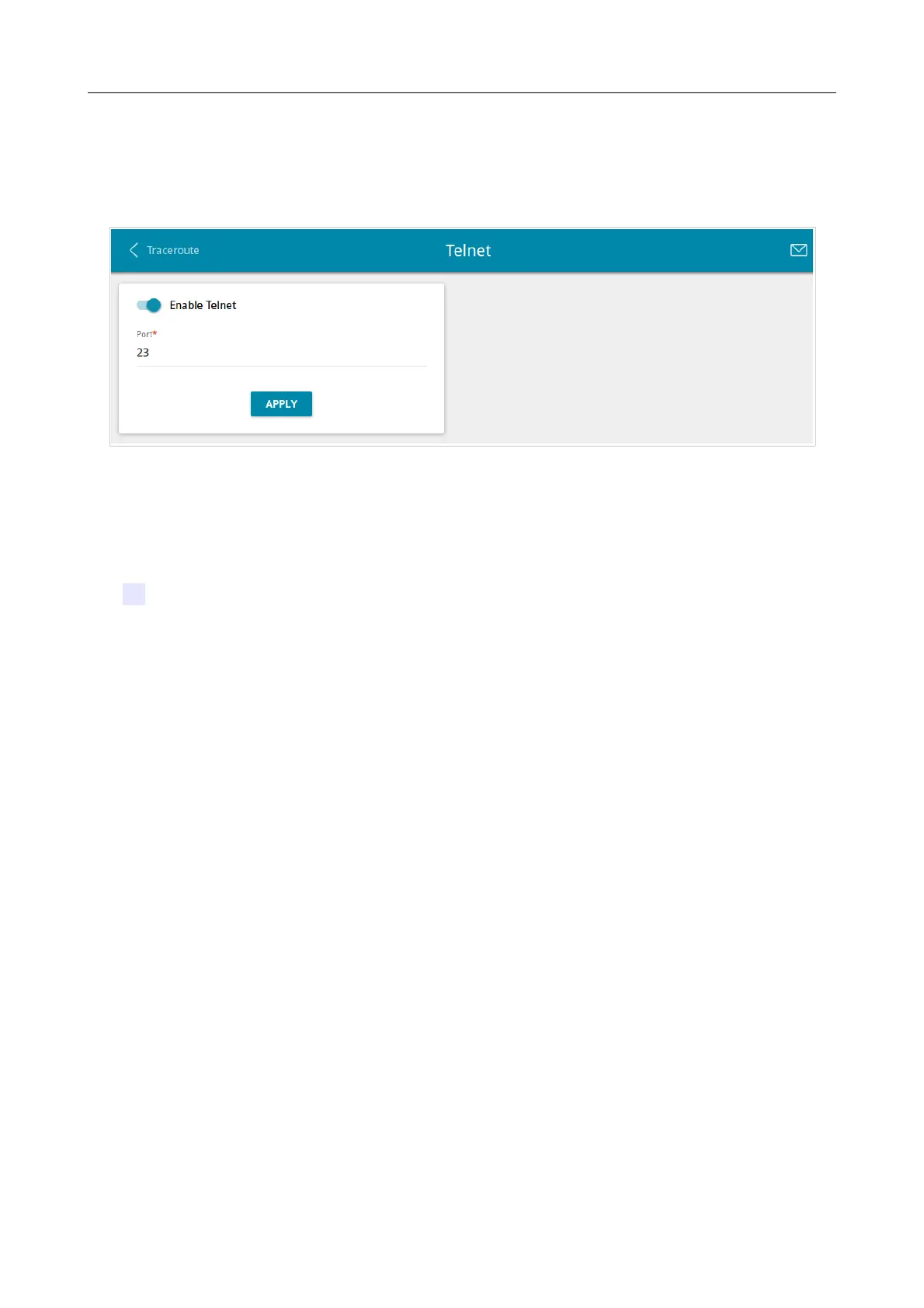

Figure 66. The System / Telnet page.
To disable access via TELNET, move the Enable Telnet switch to the left and click the APPLY
button.
To enable access via TELNET again, move the Enable Telnet switch to the right. In the Port
field, enter the number of the extender's port through which access will be allowed (by default, the
port 23 is specified). Then click the APPLY button.
Page 86 of 92

D-Link DAP-1325 Specifications

General

Type	Network repeater
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Antenna type	External
Antennas quantity	2
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA2, WPS-PBC
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN (RJ-45) ports	1
Certification	FCC, IC, CE, RCM, IDA, CB, LVD, UL, WPS
Product color	Grey, White
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	RoHS
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	97 g
