D-Link DAP-1325 User Manual

DAP-1325 N300 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
MAC Filter
On the Wi-Fi / MAC Filter page, you can define a set of MAC addresses of devices which will be
allowed to access the WLAN, or define MAC addresses of devices which will not be allowed to
access the WLAN.

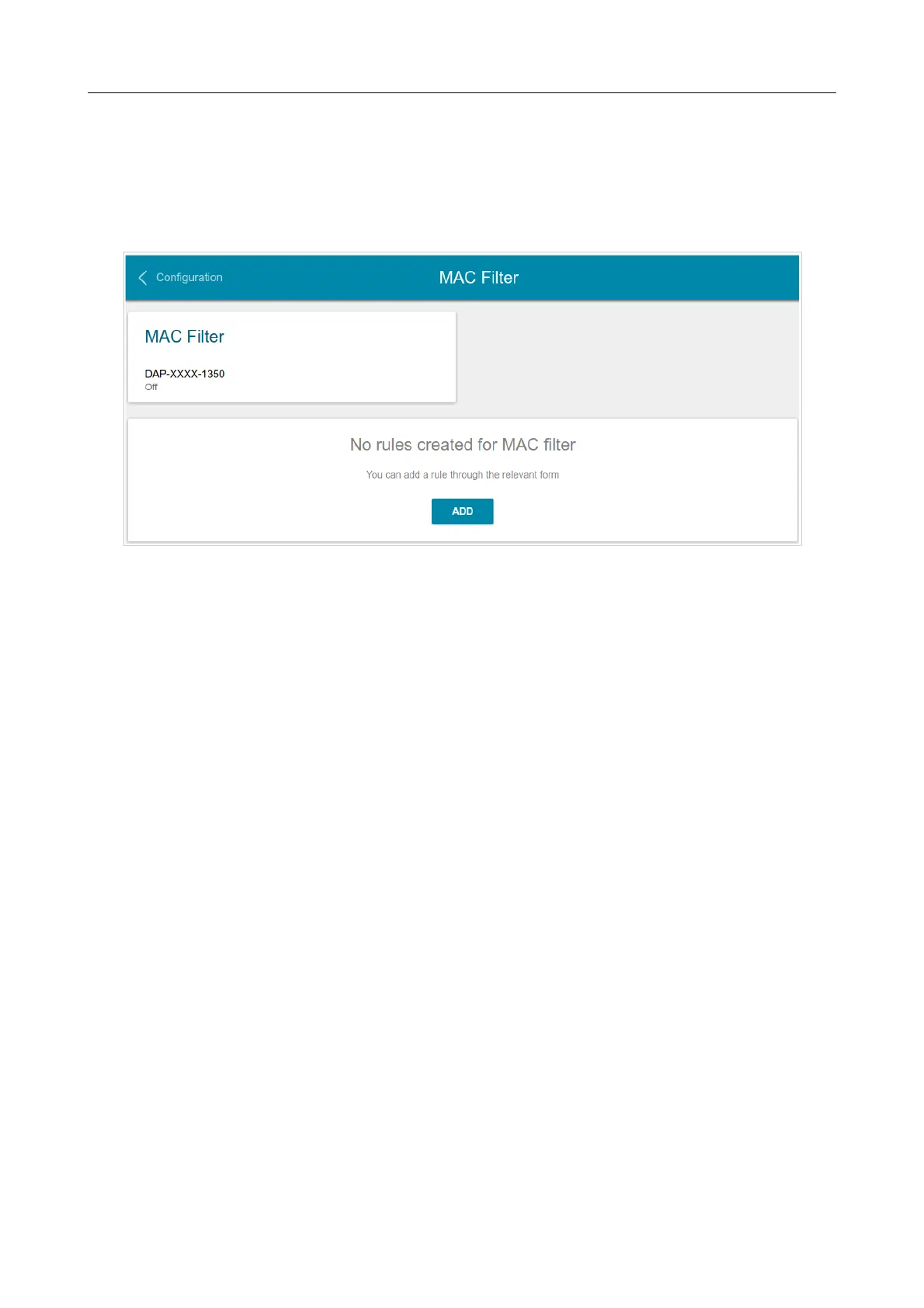

Figure 55. The page for configuring the MAC filter for the wireless network.
By default, MAC filtering is disabled.
To open the basic or additional wireless network for the devices which MAC addresses are
specified on this page and to close the wireless network for all other devices, in the MAC Filter
section, left-click the line of the wireless network. In the opened window, move the Enable MAC
filter switch to the right. Upon that the MAC filter restrict mode drop-down list will be
displayed. Select the Allow value from the drop-down list and click the SAVE button.
To close the wireless network for the devices which MAC addresses are specified on this page,
select the Deny value from the MAC filter restrict mode drop-down list and click the SAVE
button.
Click the ADD button to add a rule for MAC filtering.
Page 70 of 92

D-Link DAP-1325 Specifications

General

Type	Network repeater
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Antenna type	External
Antennas quantity	2
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA2, WPS-PBC
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN (RJ-45) ports	1
Certification	FCC, IC, CE, RCM, IDA, CB, LVD, UL, WPS
Product color	Grey, White
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	RoHS
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	97 g
