D-Link DAP-2662 User Manual

Web User Interface
43

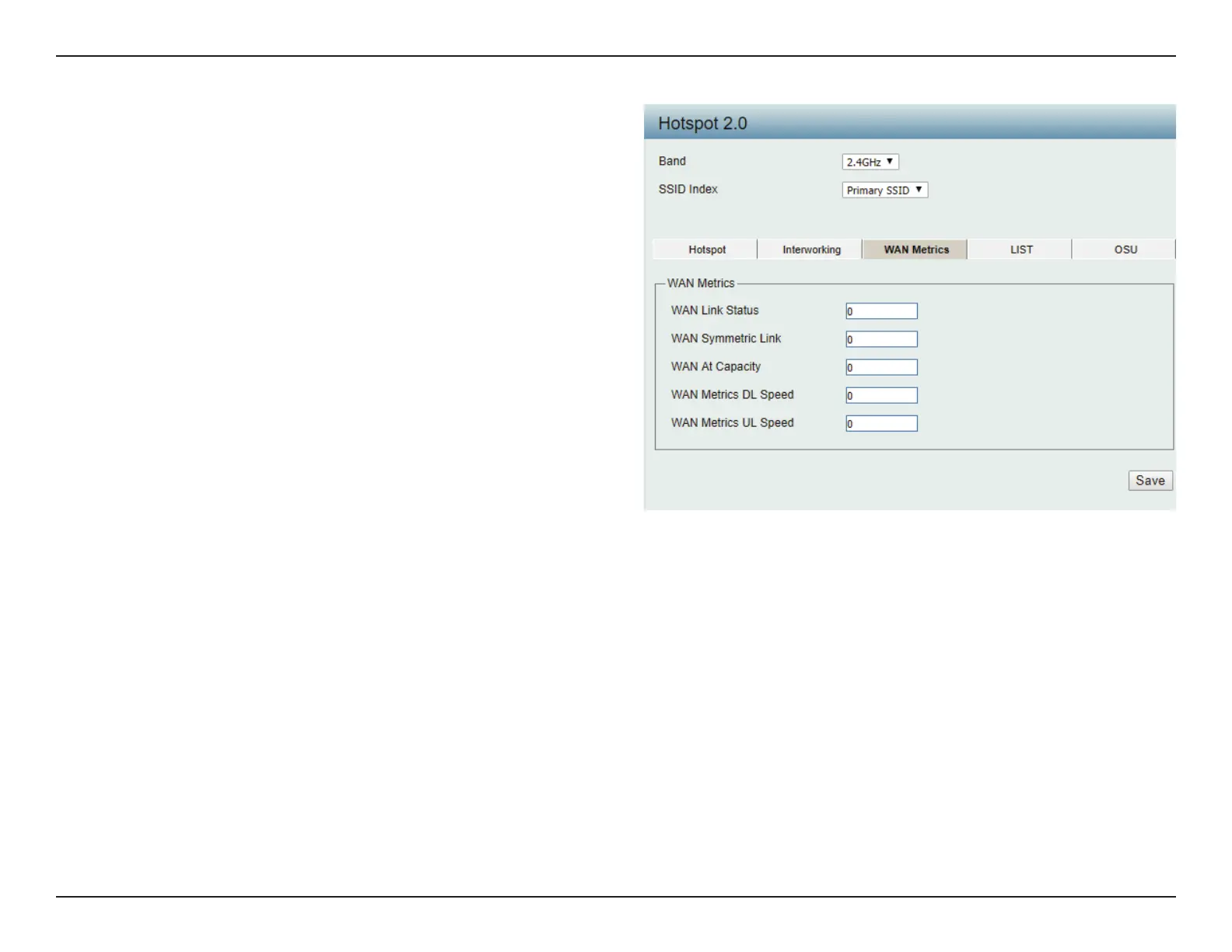

WAN Link Status:
WAN Symmetric Link:
WAN At Capacity:
WAN Metrics DL Speed:
WAN Metrics UL Speed:
Information about the status of the Access
Point’s WAN connection.
Set to 1 if the WAN link is symmetric (upload
and download speeds are the same), or set to
0 if not.
Set to 1 if the Access Point or the network is at
its max capacity, or set to 0 if not.
The downlink speed of the WAN connection
set in kbps. If the downlink speed is not known,
set to 0.
The uplink speed of the WAN connection set in
kbps. If the uplink speed is not known set to 0.
WAN Metrics

D-Link DAP-2662 Specifications

General

2.4 GHz	Yes
Frequency band	2.4, 5 GHz
Transmitting power	26 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Security algorithms	-
Number of SSID supported	16
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	3.8 dBi
Placement	Ceiling, Table, Wall
Product color	White
Number of products included	1 pc(s)
Package depth	248 mm
Package width	208 mm
Package height	73 mm
Package weight	390 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	2011 mm
Pallet gross weight (air)	174000 g
Quantity per pallet (air)	420 pc(s)
Shipping (inner) case width	383 mm
Shipping (inner) case height	268 mm
Shipping (inner) case length	431 mm
Shipping (inner) case weight	4000 g
Shipping (inner) case net weight	3900 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	10 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	- mm
