D-Link DAP-2662 User Manual

Web User Interface
69

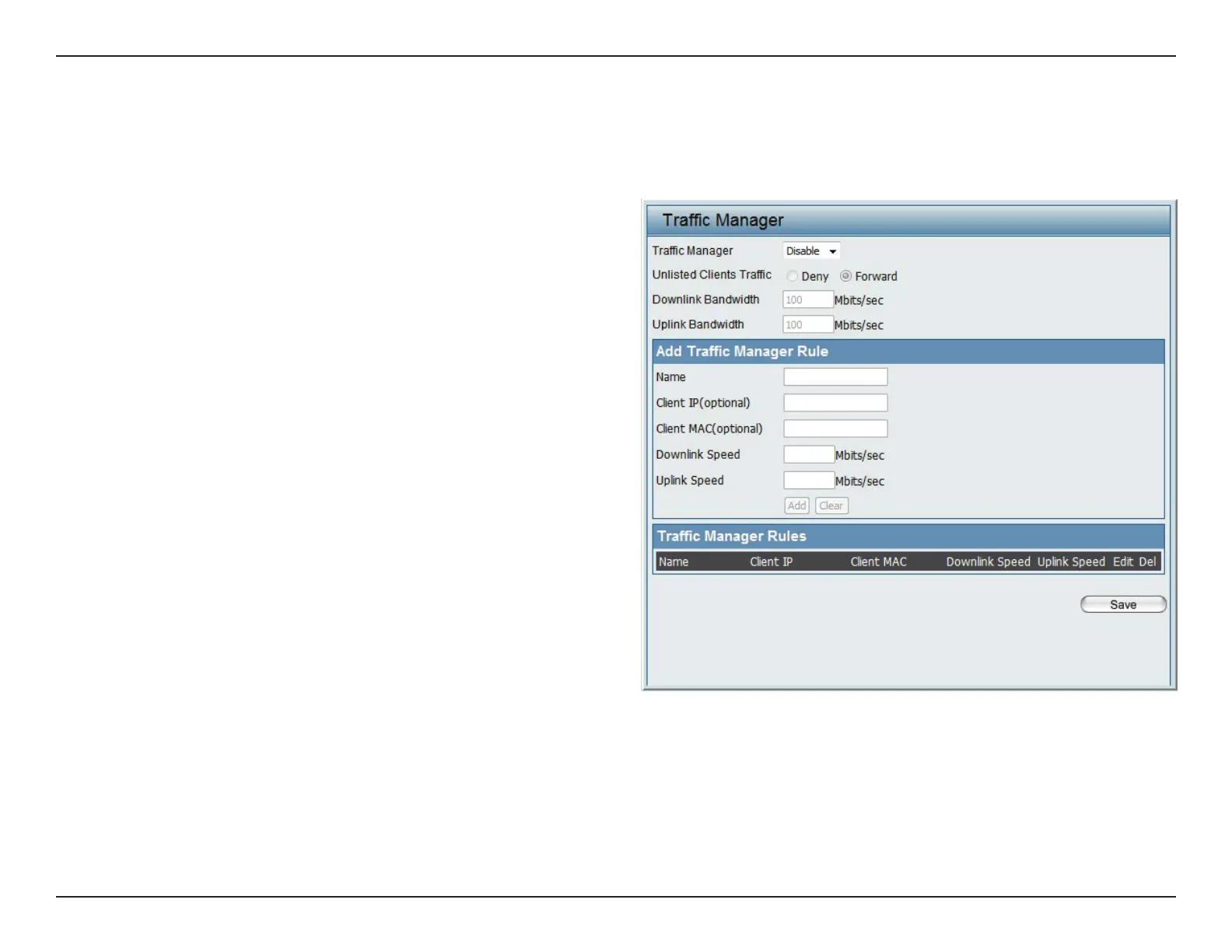

The trac manager feature allows users to create trac management rules that specify how to deal with listed client trac and specify downlink/
uplink speed for new trac manager rules. Click the Save to have your changes take eect.
Trac Manager:
Unlisted Client Trac:
Downlink Bandwidth:
Uplink Bandwidth:
Name:
Client IP (optional):
Client MAC (optional):
Downlink Speed:
Uplink Speed:
Use the drop-down menu to Enable the
trac manager feature.
Select Deny or Forward to determine how
to deal with unlisted client trac.
The downlink bandwidth in Mbits per
second. This value is entered in the Uplink/
Downlink Setting window.
The uplink bandwidth in Mbits per second.
This value is entered in the Uplink/Downlink
Setting window.
Enter the name of the trac manager rule.
Enter the client IP address of the trac
manager rule.
Enter the client MAC address of the trac
manager rule.
Enter the downlink speed in Mbits per
second.
Enter the uplink speed in Mbits per second.
Trac Manager

D-Link DAP-2662 Specifications

General

2.4 GHz	Yes
Frequency band	2.4, 5 GHz
Transmitting power	26 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Security algorithms	-
Number of SSID supported	16
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	3.8 dBi
Placement	Ceiling, Table, Wall
Product color	White
Number of products included	1 pc(s)
Package depth	248 mm
Package width	208 mm
Package height	73 mm
Package weight	390 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	2011 mm
Pallet gross weight (air)	174000 g
Quantity per pallet (air)	420 pc(s)
Shipping (inner) case width	383 mm
Shipping (inner) case height	268 mm
Shipping (inner) case length	431 mm
Shipping (inner) case weight	4000 g
Shipping (inner) case net weight	3900 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	10 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	- mm
