47D-Link DIR-605 User Manual
Section 3 - Conguration

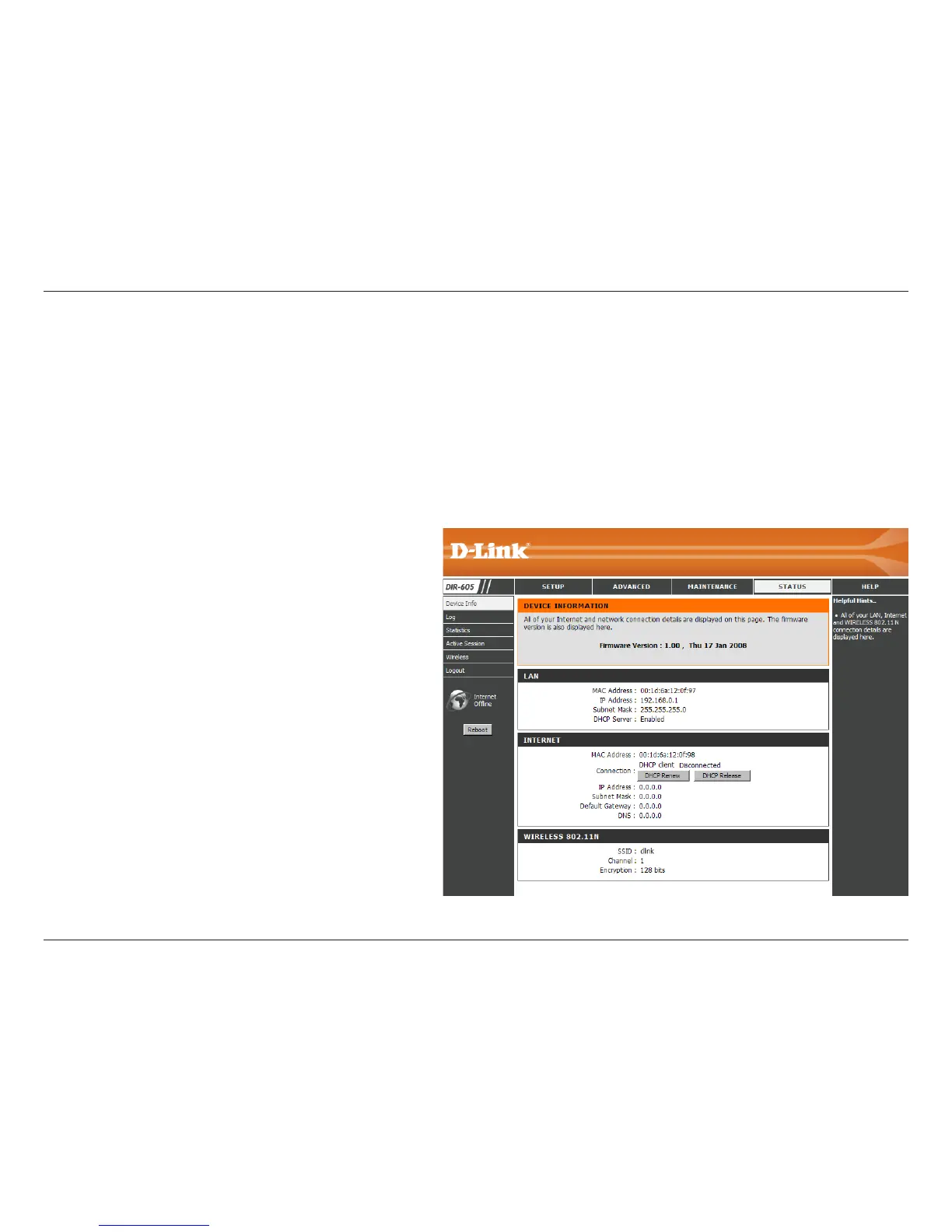

Device Info
This window displays the current information for the DIR-605. It will display the LAN, WAN, and Wireless
information.
If your WAN connection is set up for a Dynamic IP address then a DHCP Release button and a DHCP Renew button
will be displayed. Use DHCP Release to disconnect from your ISP and use DHCP Renew to connect to your ISP.
If your WAN connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use
Disconnect to drop the PPPoE connection and use Connect to establish the PPPoE connection.
Displays the MAC address and the private
(local) IP settings for the router.
Displays the MAC address and the public IP
settings for the router.
Displays the wireless MAC address and your
wireless settings such as SSID, Channel, and
Encryption status.
LAN:
WAN:
Wireless
802.11N:
